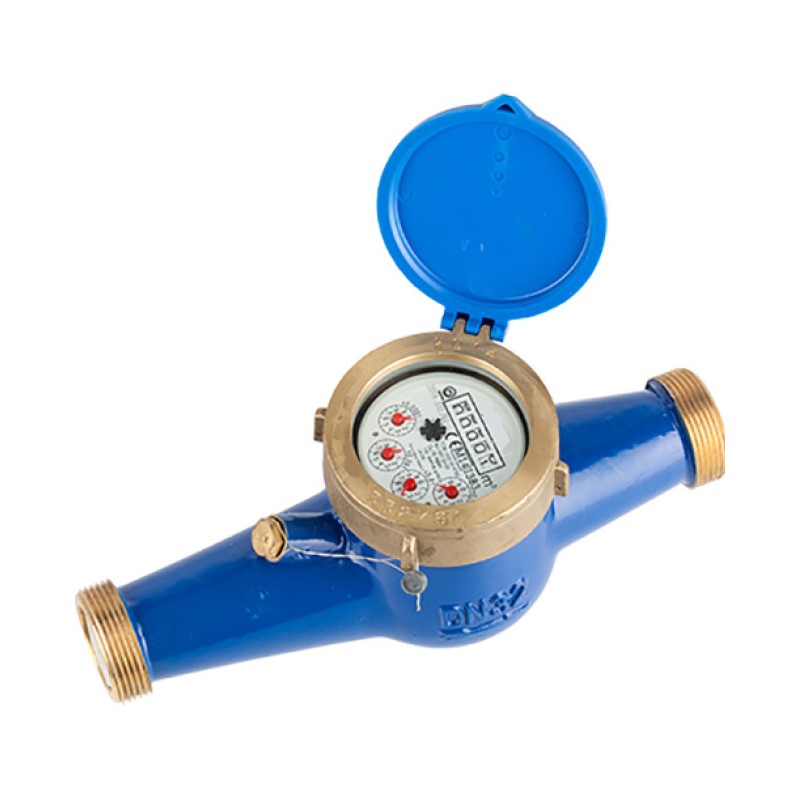

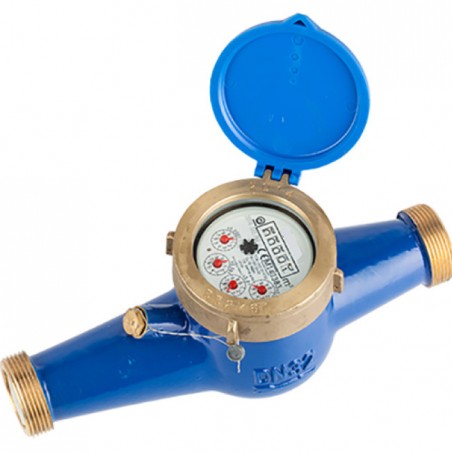

Multi-jet drinking water meter 15mm, 3/4 male inlet and outlet thread

Multi-jet turbine meter with dry dial and metal body coated with epoxy paint.

Turbine and clockwork in thermoplastic material.

Model for cold water up to 30 ºC.

Direct reading on 5-digit roller counter indicating m³.

Vacuum assembly of watchmaking to prevent water condensation.

Magnetic transmission protected against external magnetic fields (anti-fraud).

High mechanical and wear resistance. No need for straight sections at the meter's entrance or exit.

Approved for irrigation. Accuracy ratio R80 in horizontal position and R20 in vertical position.

Pre-equipped for pulse transmitter with standard value 1/100 (1 pulse = 100 litres). Requires optionally available transmitter cable (see accessories).

Product Features:

• 6 models available
• Working temperature: 0.1ºC ~ 30ºC
• Maximum pressure: 16 bar

Frequently Asked Questions:

What is a multi-jet meter used for?
A multi-jet meter is used to accurately measure potable water consumption in different applications.

What does the R80 accuracy ratio mean?
The R80 accuracy ratio indicates that the meter has a high accuracy in its reading when it is in a horizontal position.

How is the meter protected against external magnetic fields?
The meter has a protected magnetic transmission that prevents interference from external magnetic fields, ensuring its correct operation.

What body connection models are available?

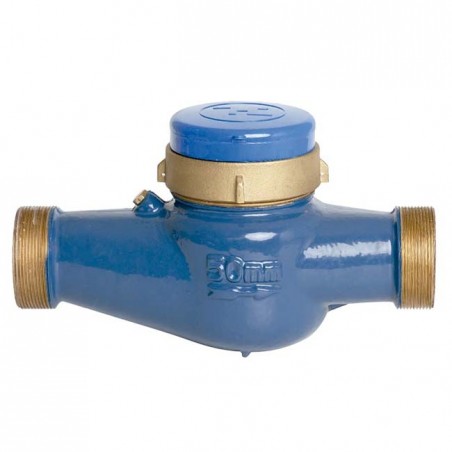

Available models range from ½ - DN15 to 2 - DN50, with different threaded connection sizes.

Can this meter be used in irrigation applications?
Yes, the meter is approved for irrigation and provides an accurate reading under different operating conditions.
