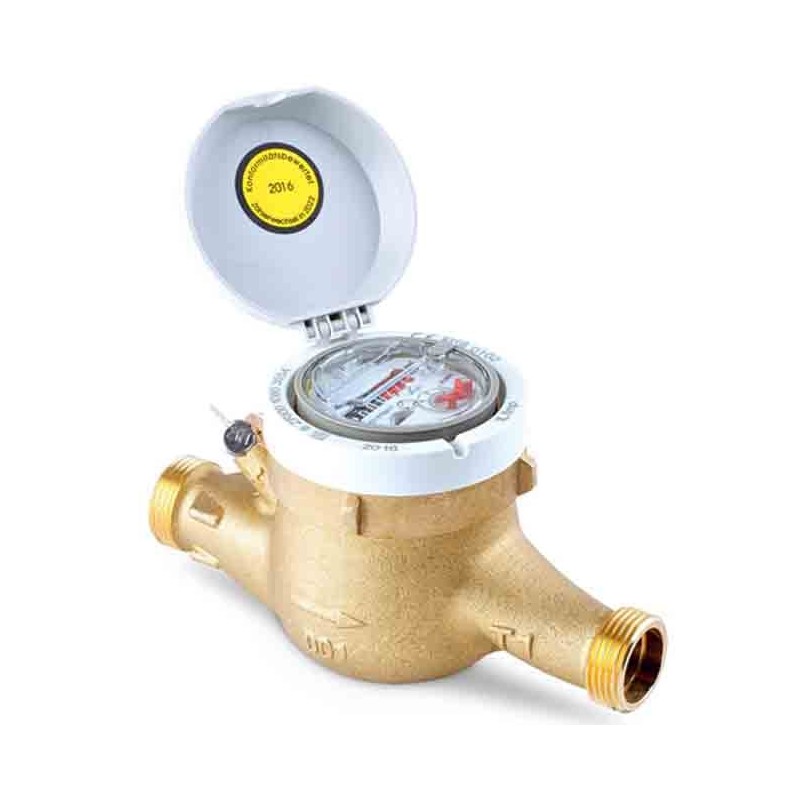

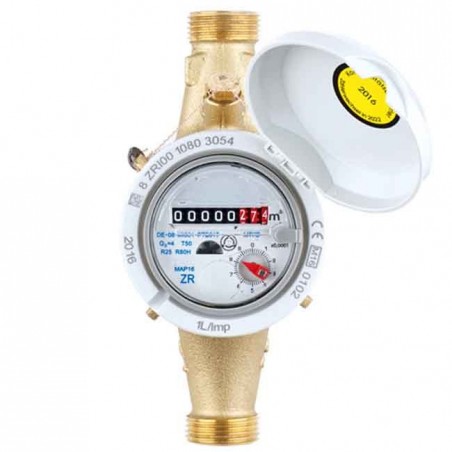

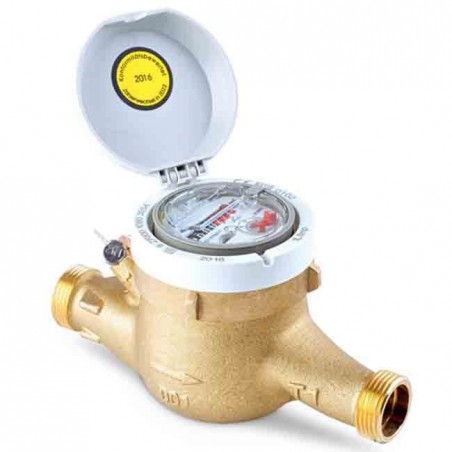

Multiple jet water meter for cold water 20mm - 1"

Multiple jet water meter for cold water 20mm - 1"

Review (0)

€96.72

Impuestos incluidos

Available in 15mm, 20mm, 25mm, 32mm, 40mm and 50mm.
Allows use with drinking water.
The clockwork of the new drinking water meter was conceptually redesigned and technically improved.
It allows electronic scanning without feedback and is the basis for distance reading of measurement data via radio or M-Bus.

Models:

Diameter 15-1 / 2 " . Length without fitting 16.5 cm. Flow rate 2.5 m3 / h. Threads 3/4".

Diameter 20 - 3/4 " . Length without fitting 19 cm. Flow rate 4 m3 / h. Threads 1".

Diameter 25 - 1 " . Length without fitting 26 cm. Flow rate 6.3 m3 / h. Threads 1 1/4".

Diameter 32 - 1 1/4 " . Length without fitting 26 cm. Flow rate 10 m3 / h. Threads 1 1/2".

Diameter 40 - 1 1/2 " . Length without fitting 30 cm. Flow rate 16 m3 / h. Threads 2".

Diameter 50 - 2 " . Length without fitting 30 cm. Flow rate 25 m3 / h. Threads 2 1/2".

Multiple jet water meter for cold water 20mm - 1

20mm size. Thread 1.
Allows use with drinking water. The flowmeter has been conceptually redesigned and technically improved. The result is a flowmeter with protected magnetic coupling, which offers optimum results in terms of measurement accuracy and stability. The new multi-jet meter thus guarantees reliable data recording for individual consumption billing. It allows feedback-free electronic scanning and is the basis for remote reading of measurement data via radio (wireless M-Bus according to OMS) or via M-Bus. This allows many meters to be read in a shorter time and the data to be transmitted digitally to a billing system. Features: Feedback-free electronic scanning Flowmeter rotatable by 355° Pressure phase PN 16 Housing also available as Copper Can model IP 68 Drinking water meter for vertical pipes (riser pipe). Allows connection of pulse transmitter (to be purchased separately). Top quality, made in Spain.
