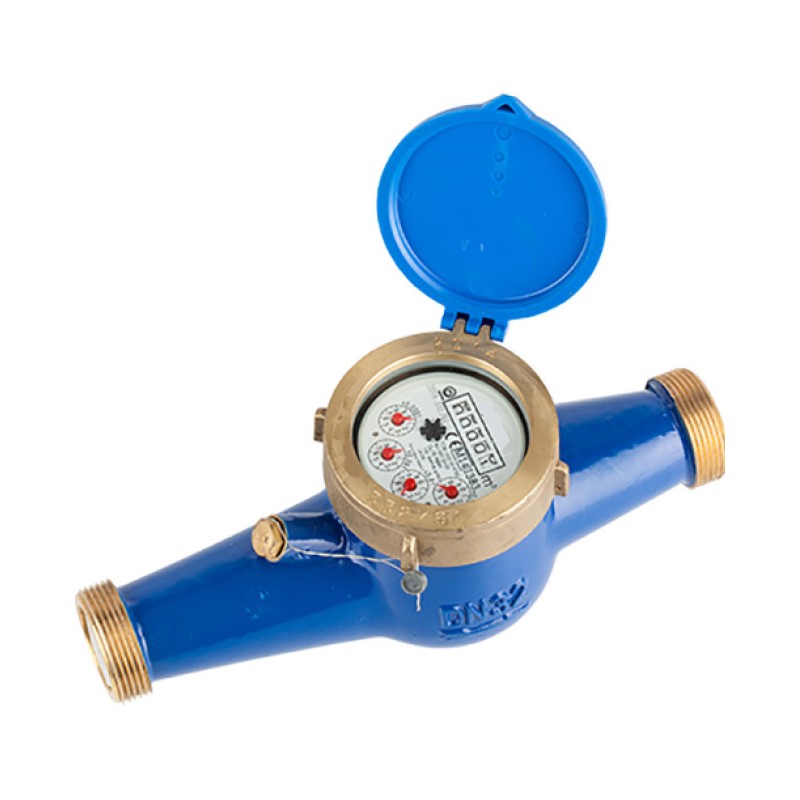

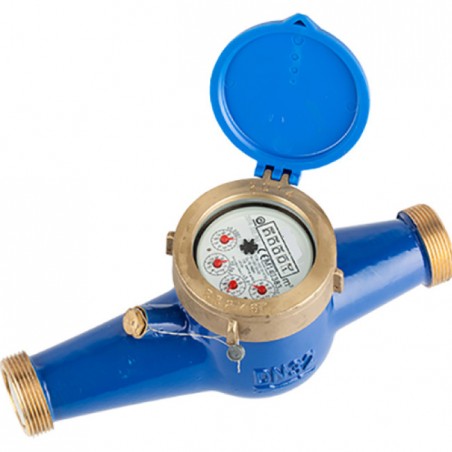

Multi-jet drinking water meter 20mm, 1 male inlet and outlet thread

Dry dial, multi-jet turbine meter with epoxy-coated metal body. Turbine and dial made of thermoplastic material. Model for cold water up to 30 ºC. Direct reading on 5-digit roller meter indicating m³. Vacuum dial assembly to prevent water condensation. Magnetic transmission protected against external magnetic fields (anti-fraud). High mechanical and wear resistance. No need for straight sections at the meter inlet or outlet. Approved for irrigation. Accuracy ratio R80 in horizontal position and R20 in vertical position. Pre-equipped for pulse transmitter with standard value 1/100 (1 pulse = 100 litres). Requires transmitter cable available as an option (see accessories). 6 models available : ½ - DN15 (G ¾ x ¾ BSP threaded body connections) ¾ - DN20 (G 1 x 1 BSP threaded body connections) 1 - DN25 (G 1¼ x 1¼ BSP threaded body connections) 1¼ - DN32 (G 1½ x 1½ BSP threaded body connections) 1½ - DN40 (G 2 x 2 BSP threaded body connections) 2 - DN50 (G 2½ x 2½ BSP threaded body connections) Operating temperature: 0.1ºC ~ 30ºC Maximum pressure: 16 bar

Product Features:

• Multi-jet turbine counter
• Metal body coated with epoxy paint
• High mechanical and wear resistance
• Approval for irrigation

Frequently Asked Questions:

Which model is available for cold water?
The model available for cold water is up to 30 ºC.

What type of direct reading does the meter offer?
The meter offers a direct reading on a 5-digit roller meter indicating m³.

What is the maximum pressure that the meter can withstand?
The meter can withstand a maximum pressure of 16 bar.

What is the meter pre-equipped for?
The meter is pre-equipped for pulse transmitter with standard value 1/100 (1 pulse = 100 liters).

What is the operating temperature of the meter?
The operating temperature is 0.1ºC to 30ºC.
