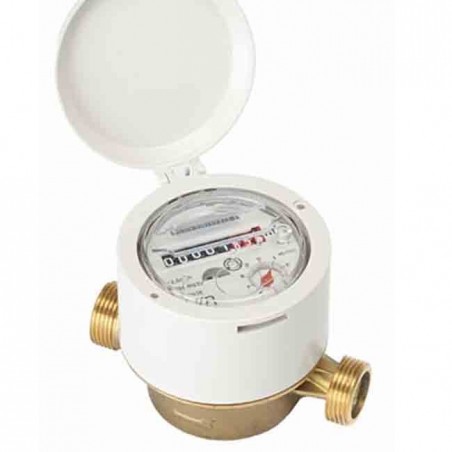

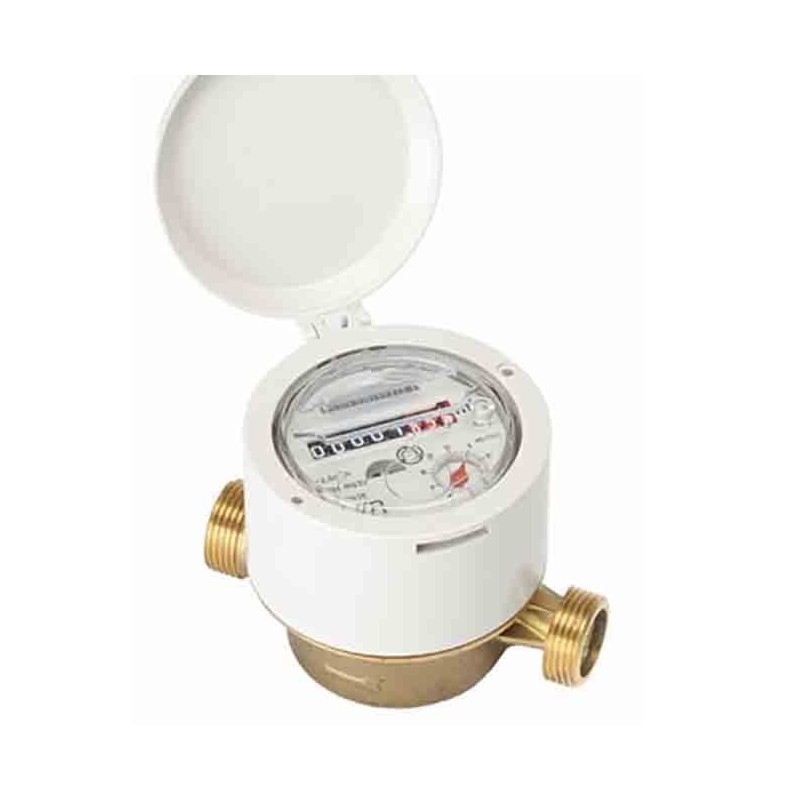

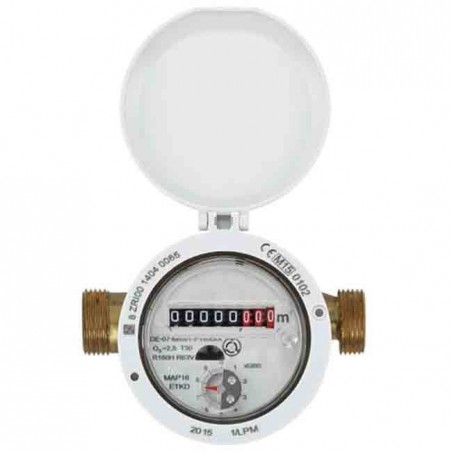

15mm single jet residential meter, 3/4" thread, cold water, drinking water use

15mm single jet residential meter, 3/4" thread, cold water, drinking water use

Review (0)

€33.64

Impuestos incluidos

Residential meter single jet 15mm, 3/4 thread, cold water, use of drinking water

Single jet residential water meter 15mm, 3/4 thread, cold water, for drinking water use. Diameter 15 - 1/2. Length without fitting 11.5 cm. Flow rate 2.5 m3/h. Inlet thread 3/4 and outlet 3/4. Available in 13mm, 15mm and 20mm. The single jet water meter guarantees the best starting values and the highest possible measurement accuracy and stability with an optimal price/performance ratio. With a ratio of Q3/Q1=80 (comparable to the previous accuracy class C) in horizontal mounting, it meets the highest demands for measurement reliability and accuracy. Characteristics: Dry dial watch with magnetic coupling. Maximum precision in watchmaking For cold water up to 30°C Watchmaking system equipped with 8 rollers as standard 355° rotating watchmaking system MAP 16 pressure phase Horizontal and vertical mounting position possible Sweeping without feedback as standard Retrofittable with pulse module, M-Bus module or wireless M-Bus module MID approved. Maximum temperature 30° C. Pre-equipped for use with pulse transmitter (to be purchased separately). Top quality, made in Spain.

Product Features:

Diameter 15 - 1/2. Length without fitting 11.5 cm. Flow rate 2.5 m3/h. Inlet thread 3/4 and outlet 3/4

Available in 13mm, 15mm and 20mm.

The single-jet meter guarantees the best starting values and the highest possible measurement accuracy and stability with an optimal price/performance ratio.

English: Features: Dry dial watch with magnetic coupling Maximum watchmaking precision For cold water up to 30°C Watchmaking equipped with 8 rollers as standard 355° rotating watchmaking MAP 16 pressure phase Horizontal and vertical mounting position possible Feedback-free sweep as standard Retrofittable with pulse module, M-Bus module or wireless M-Bus module MID approved Maximum temperature 30° C.
