• Available from DN50 2 "to DN500 20".

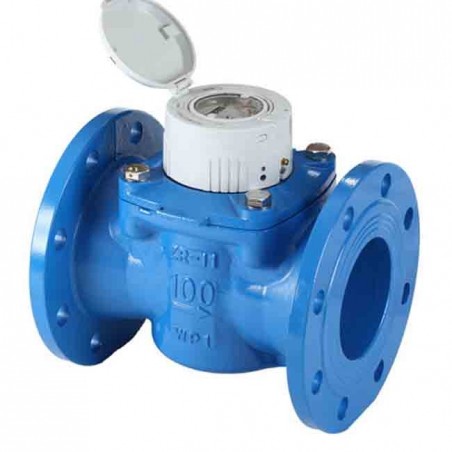

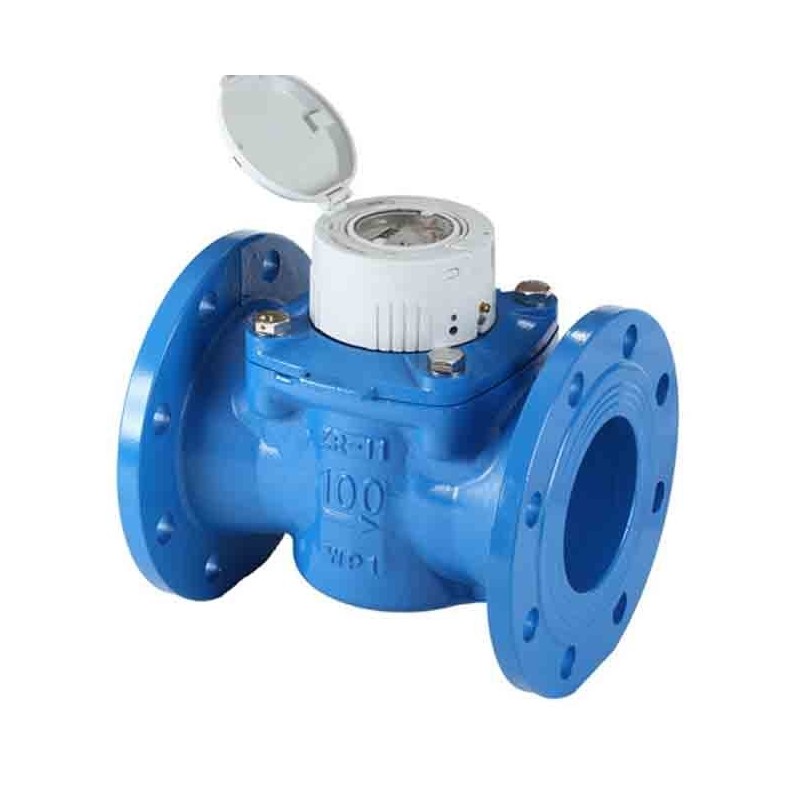

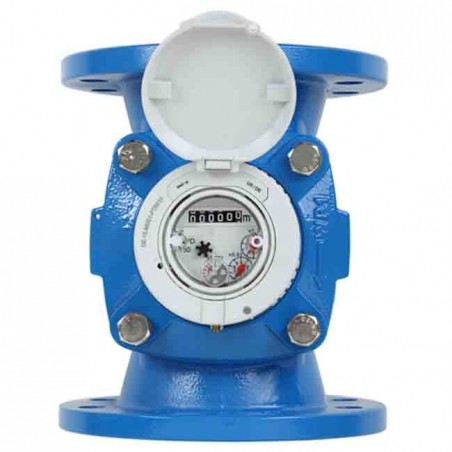

• Counter for large volumes of water with turbine shaft in parallel with respect to the flow direction. The SUINGA Woltman Parallel Large Flow Meter is specially built to record high flows with a predominantly constant flow profile.
• Thanks to its robust construction, the meter can cover a wide measuring range and is very stable in the long term in terms of measurement accuracy. Thus, it is able to cover practically all measurement tasks in the supply and distribution of drinking water.
• The housing has been optimized from the point of view of flow technology, and the design of the measuring insert has been redesigned as a replaceable metrological unit, in compliance with MID. In combination with the most modern turbine support, long-term stable and homogeneous error curves have been achieved.
• CE Certificate of Conformity according to directive 2014/32 / EU (MID) for residential or industrial use.

• Pre-equipped for telecommunications by means of pulse emitter.

Models:

Model DN50 - 2 " . Length 20 cm. Flow rate 40 m3 / h. Flange connection.

Model DN65 - 2 1/2 " . Length 20 cm. Flow rate 40 m3 / h. Flange connection.

Model DN80 - 3 " . Length 22.5 cm. Flow rate 63 m3 / h. Flange connection.

Model DN100 - 4 " . Length 25 cm. Flow 100 m3 / h. Flange connection.

Model DN125 - 5 " . Length 25 cm. Flow 100 m3 / h. Flange connection.

Model DN150 - 6 " . Length 30 cm. Flow 250 m3 / h. Flange connection.

Model DN200 - 8 " . Length 35 cm. Flow rate 400 m3 / h. Flange connection.

Model DN250 - 10 " . Length 45 cm. Flow rate 630 m3 / h. Flange connection.

Model DN300 - 12 " . Length 50 cm. Flow 1000 m3 / h. Flange connection.

Consult with our technical team for the purchase of superior measures or technical doubts.
