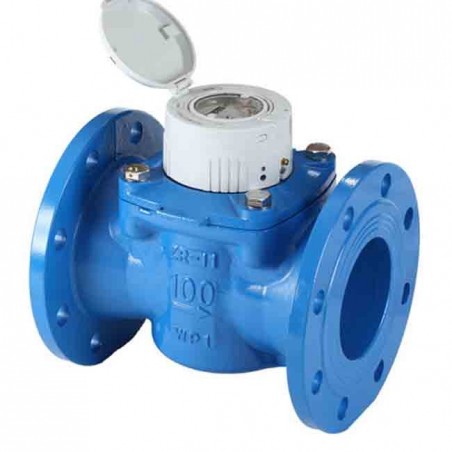

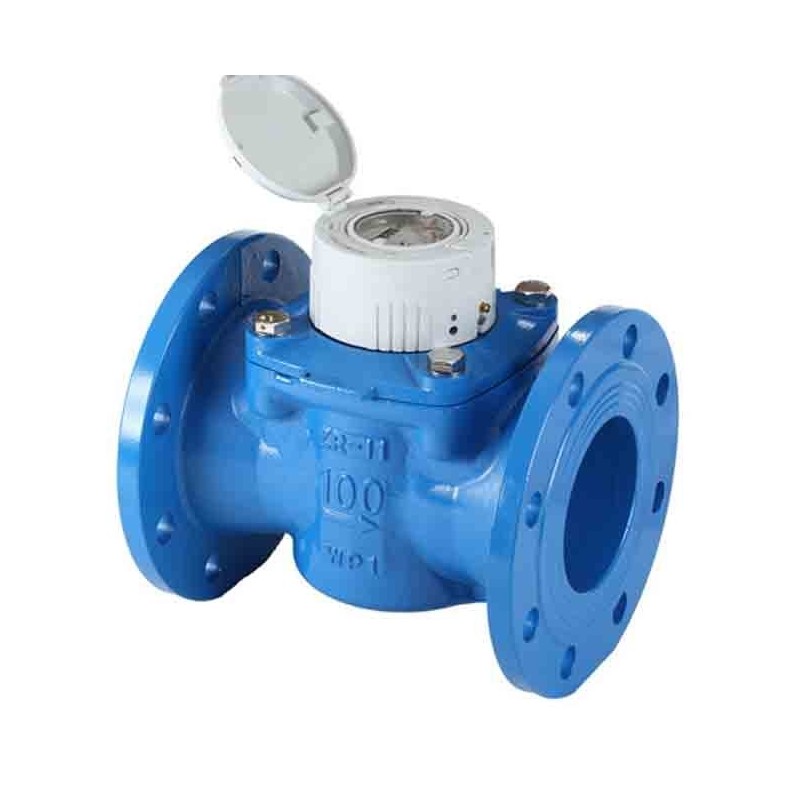

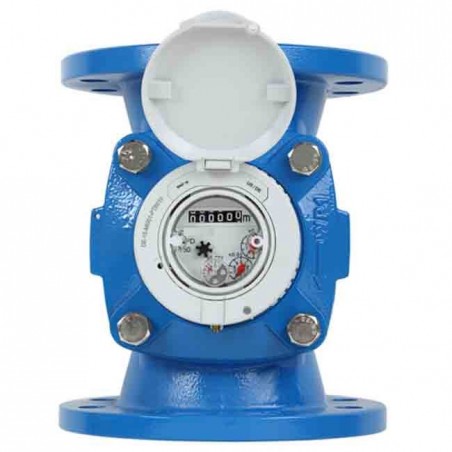

Woltman cold water meter DN 125 - 5 flange

High-volume water meter with turbine shaft parallel to the flow direction. The SUINGA Woltman parallel high-volume water meter is specially designed for high flow rates with a predominantly constant flow profile. Thanks to its robust construction, the meter can cover a wide measuring range and is very stable in terms of measurement accuracy over the long term. It is therefore suitable for virtually all measuring tasks in the supply and distribution of drinking water. The housing has been optimised in terms of flow technology, and the measuring insert has been redesigned as a replaceable metrological unit in accordance with MID. In combination with the latest turbine holder, homogeneous and long-term stable error curves have been achieved. EC certificate of conformity according to directive 2014/32/EU (MID) for residential or industrial use. Ready-equipped for telecommunications via pulse transmitter.

Product Features:

• Available from DN50 2 to DN500 20.


• Counter for large volumes of water


• Robust construction


• Accurate and stable in the long term

Frequently Asked Questions:

What is a Woltman cold water meter used for?
A Woltman cold water meter is used to measure large volumes of water with precision and long-term stability.

What certifications does the Woltman DN 125 - 5 flange meter have?
The Woltman DN 125 - 5 flange meter has the CE Certificate of Conformity according to directive 2014/32 / EU (MID) for residential or industrial use.

What flow rate can the DN125 - 5 model measure?
The DN125 - 5 model has a length of 25 cm and can measure a flow rate of 100 m3/h with flange connection.

What additional measurements are available for Woltman meters?
Please contact our technical team for purchasing higher measurements or for technical questions.
