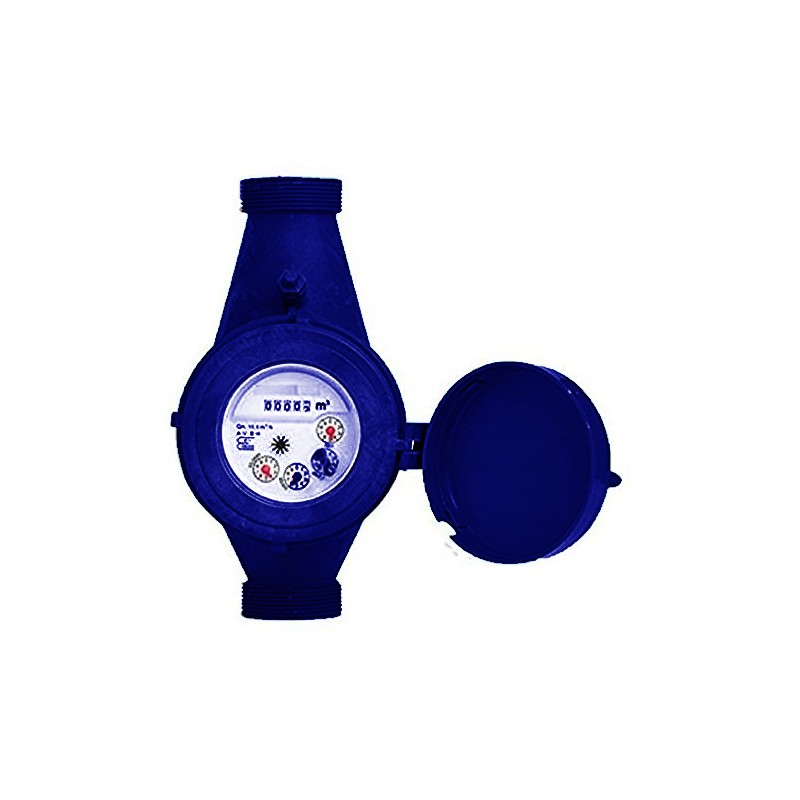

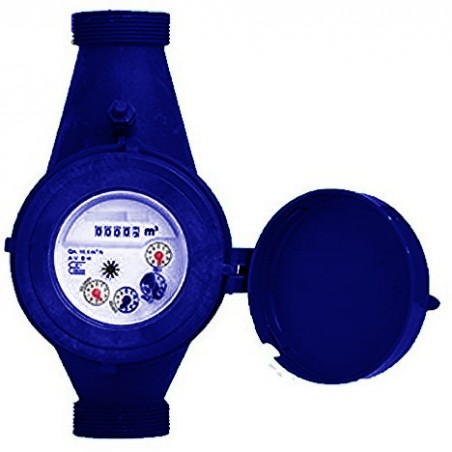

40mm multi-jet water meter , 1½ male thread, EEC approval, maximum flow rate 21 m3/h

Dry dial, multi-jet turbine meter with thermoplastic body, turbine and flow meter. Model for cold water up to 30 ºC. Body made of fibreglass-reinforced polyamide. Direct reading on 5-digit roller meter indicating m³. Vacuum flow meter assembly to prevent water condensation. Magnetic transmission protected against external magnetic fields (anti-fraud). High mechanical and wear resistance. No need for straight sections at the meter inlet or outlet. EEC approval for irrigation. Class B in horizontal position and Class A in vertical position. Pre-equipped for pulse transmitter with standard value 1/100 (1 pulse = 100 litres). Requires transmitter cable available as an option (see accessories). 4 models available: ¾ - DN20 (G 1 x 1 BSP threaded body connections) 1 - DN25 (G 1¼ x 1¼ BSP threaded body connections) 1¼ - DN32 (G 1½ x 1½ BSP threaded body connections) 1½ - DN40 (G 2 x 2 BSP threaded body connections) Operating temperature: 0.1 ºC ~ 30 ºC Maximum pressure: 10 bar

Product Features:

• Model for cold water up to 30 ºC
• Body in polyamide reinforced with fiberglass
• High mechanical and wear resistance
• EEC approval for irrigation

Frequently Asked Questions:

What is the maximum temperature that the water meter can withstand?
The water meter can withstand a maximum temperature of 30 ºC.

What type of material is the meter body made of?
The meter body is made of glass fiber reinforced polyamide.

Is it necessary to have straight sections at the meter's entrance and exit?
No, it is not necessary to have straight sections at the meter's entrance or exit.

What is the maximum pressure that the water meter can withstand?
The water meter can withstand a maximum pressure of 10 bar.

In which position is the water meter EEC approved?
The water meter has Class B in horizontal position and Class A in vertical position.
