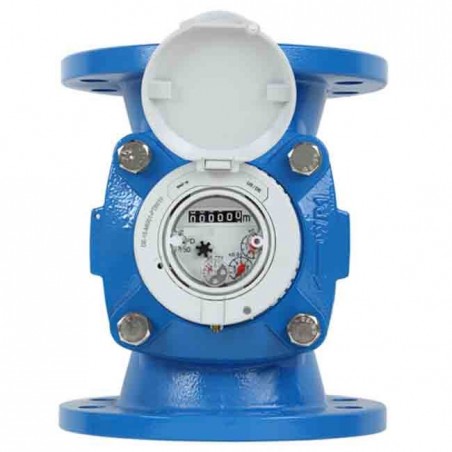

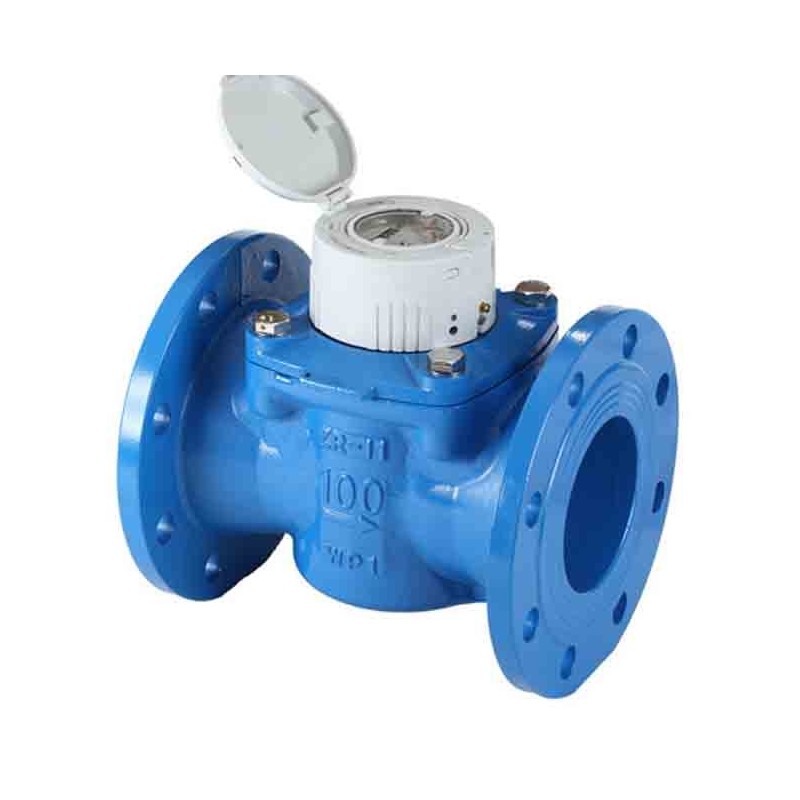

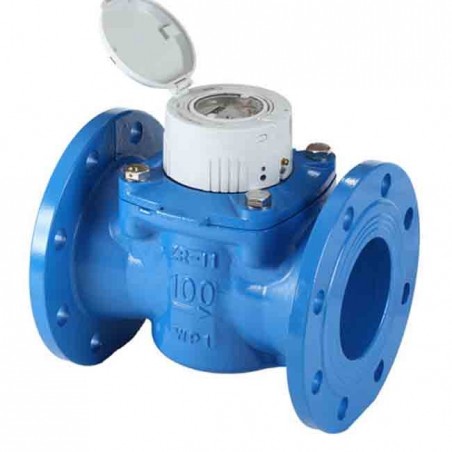

Woltman cold water meter DN 250 - 10 flange

High-volume water meter with turbine shaft parallel to the flow direction. The SUINGA Woltman parallel high-volume water meter is specially designed for high flow rates with a predominantly constant flow profile. Thanks to its robust construction, the meter can cover a wide measuring range and is very stable in terms of measurement accuracy over the long term. It is therefore suitable for virtually all measuring tasks in the supply and distribution of drinking water. The housing has been optimised in terms of flow technology, and the measuring insert has been redesigned as a replaceable metrological unit in accordance with MID. In combination with the latest turbine holder, homogeneous and long-term stable error curves have been achieved. EC certificate of conformity according to directive 2014/32/EU (MID) for residential or industrial use. Ready-equipped for telecommunications via pulse transmitter.

Product Features:

• Available from DN50 2 to DN500 20.
• Meter for large volumes of water with turbine shaft parallel to the flow direction.
• Robust construction for accurate and stable long-term measurement.
• CE Certificate of Conformity according to directive 2014/32/EU (MID) for residential or industrial use.

Frequently Asked Questions:

What kind of applications is this Woltman meter suitable for?
This meter is suitable for residential and industrial applications requiring high volumes of water to be measured accurately and with long-term stability.

What does it mean that the meter is pre-equipped for telecommunications using a pulse transmitter?
It means that the meter can communicate with remote monitoring systems through pulse transmitters, facilitating the management and control of water consumption.

What is the length and flow rate of the DN250 - 10 model?
The DN250 - 10 model has a length of 45 cm and a flow rate of 630 m3/h, making it ideal for applications requiring a high volume of water.

Does this Woltman meter comply with quality and accuracy regulations?
Yes, this meter has a CE Certificate of Conformity according to directive 2014/32/EU (MID), guaranteeing its quality and accuracy in water measurement.

How can I purchase larger sizes than those listed in the model list?
You can contact our technical team to purchase larger sizes or if you have specific technical questions about the Woltman cold water meter DN 250 - 10.
