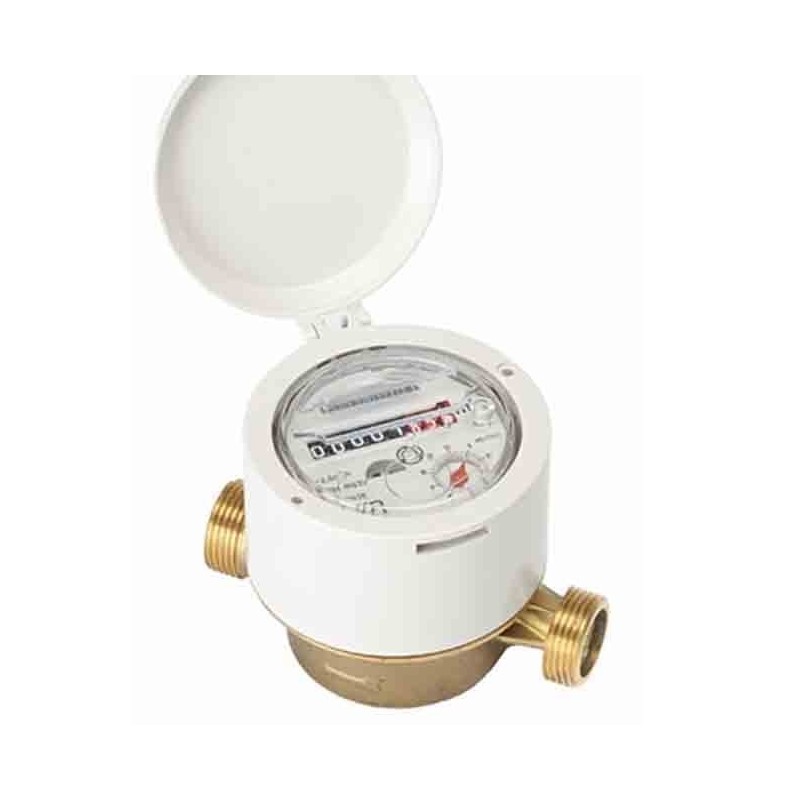

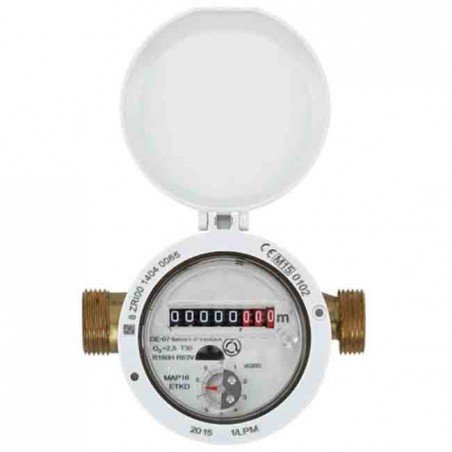

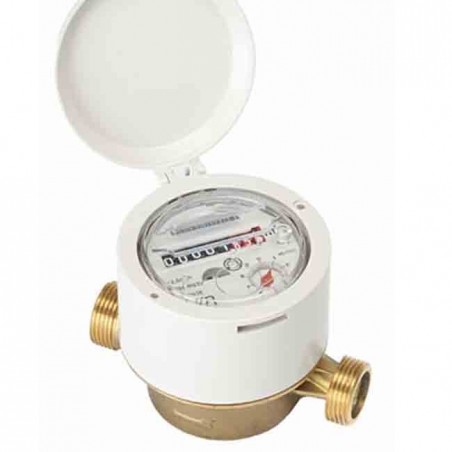

Residential meter , single jet, 20mm, thread 1, cold water, use of drinking water

Single jet residential meter 20mm, thread 1, cold water, drinking water use. Diameter 20 - 3/4. Length without fitting 11.5 cm. Flow rate 4 m3/h. Inlet thread 1 and outlet thread 1. Available in 13mm, 15mm and 20mm. The single jet meter guarantees the best start-up values ​​and the highest possible measurement accuracy and stability with an optimal price/performance ratio. With a ratio of Q3/Q1=80 (comparable with the previous precision class C) in horizontal mounting, it meets the highest demands for reliability and measurement accuracy. Characteristics: Dry dial watch with magnetic coupling. Maximum precision in watchmaking For cold water up to 30°C Watchmaking system equipped with 8 rollers as standard 355° rotating watchmaking system MAP 16 pressure phase Horizontal and vertical mounting position possible Sweeping without feedback as standard Retrofittable with pulse module, M-Bus module or wireless M-Bus module MID approved. Maximum temperature 30° C. Pre-equipped for use with pulse transmitter (to be purchased separately). Top quality, made in Spain.

Product Features:

• Diameter 20 - 3/4. Length without fitting 11.5 cm. Flow rate 4 m3/h. Inlet thread 1 and outlet 1


• Available in 13mm, 15mm and 20mm


• The single-jet counter guarantees better starting values ​​and the highest possible measurement accuracy and stability.


• Features: Dry dial watchmaking with magnetic coupling. Maximum watchmaking precision For cold water up to 30°C

Frequently Asked Questions:

What is the maximum temperature that the single-jet residential meter can withstand?
The single-jet residential meter can withstand a maximum temperature of 30º C.

What diameters are available for this counter?
This counter is available in 13mm, 15mm and 20mm.

What type of threads does this residential meter have?
This meter has a 1 inlet thread and a 1 outlet thread.

Can this meter be used for drinking water?
Yes, this meter is designed for use with drinking water.

What is the accuracy ratio of this single jet residential water meter?
The accuracy ratio is Q3/Q1=80, which ensures reliability and accuracy in measurement.
