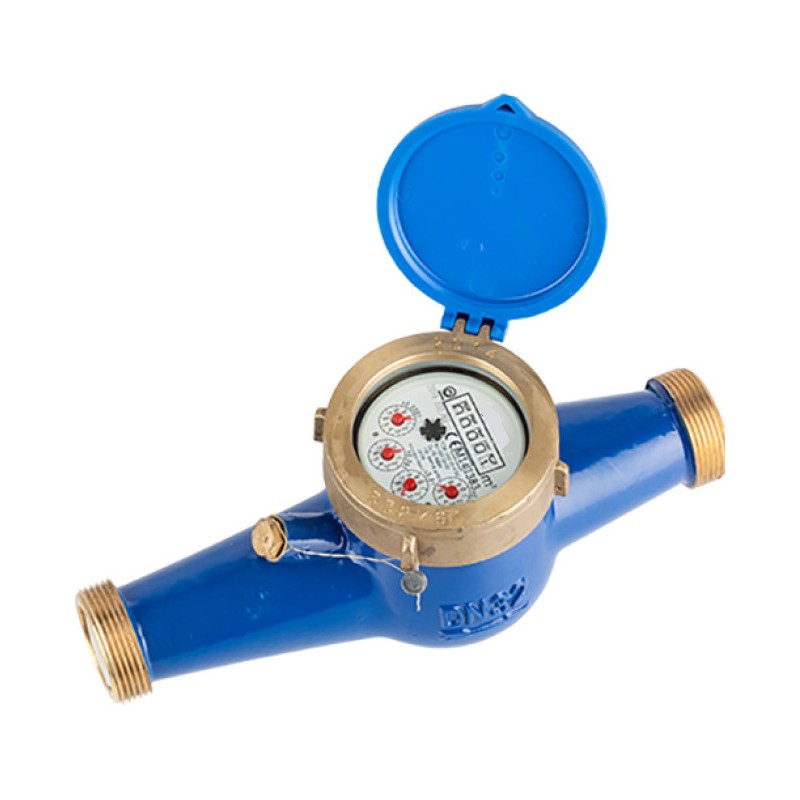

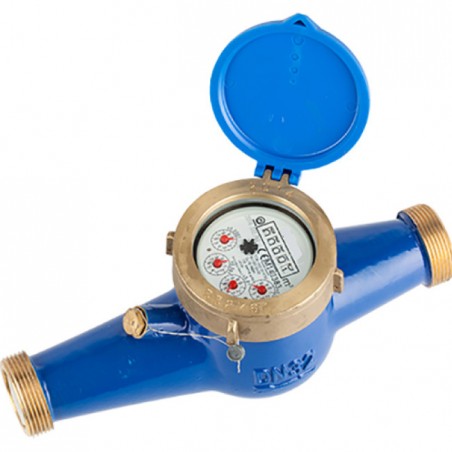

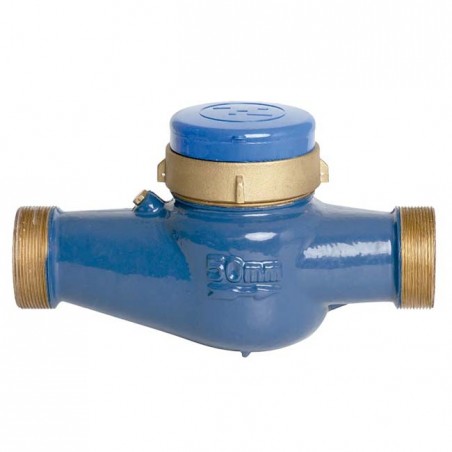

Multi-jet drinking water meter 50mm, 2 1/2 male inlet and outlet thread

Dry dial multi-jet water meter with epoxy-coated metal body. Turbine and dial made of thermoplastic material. Model for cold water up to 30 ºC. Direct reading on 5-digit roller meter indicating m³. Vacuum dial assembly to prevent water condensation. Magnetic transmission protected against external magnetic fields (anti-fraud). High mechanical and wear resistance. No need for straight sections at the meter inlet or outlet. Approved for irrigation. Accuracy ratio R80 in horizontal position and R20 in vertical position. Pre-equipped for pulse transmitter with standard value 1/100 (1 pulse = 100 litres). Requires transmitter cable available as an option (see accessories). 6 models available : ½ - DN15 (G ¾ x ¾ BSP threaded body connections) ¾ - DN20 (G 1 x 1 BSP threaded body connections) 1 - DN25 (G 1¼ x 1¼ BSP threaded body connections) 1¼ - DN32 (G 1½ x 1½ BSP threaded body connections) 1½ - DN40 (G 2 x 2 BSP threaded body connections) 2 - DN50 (G 2½ x 2½ BSP threaded body connections) Operating temperature: 0.1ºC ~ 30ºC Maximum pressure: 16 bar

Product Features:

• Model for cold water up to 30 ºC
• Direct reading on 5-digit roller counter indicating m³
• High mechanical and wear resistance
• Approval for irrigation

Frequently Asked Questions:

What is the maximum operating temperature of the meter?
The maximum operating temperature is 30 ºC.

Is the counter pre-installed for pulse transmitter?
Yes, the counter is pre-equipped for pulse transmitter with standard value 1/100.

What is the maximum pressure that the meter can withstand?
The maximum pressure that the meter can withstand is 16 bar.

How many different models are available?
There are 6 different models available.

What kind of protection does the magnetic transmission have?
The magnetic transmission is protected against external magnetic fields to prevent fraud.
