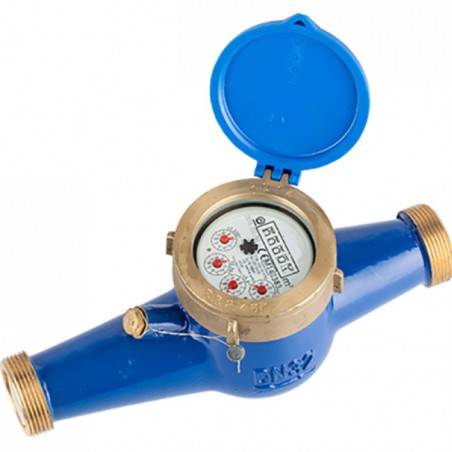

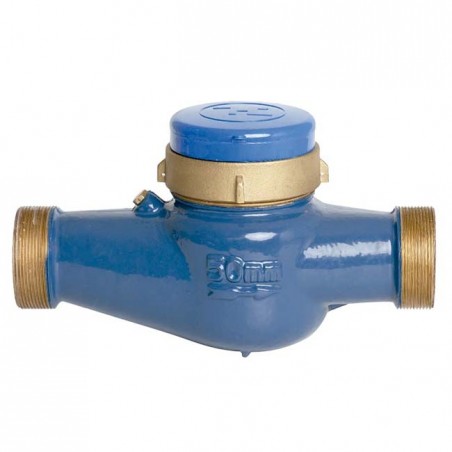

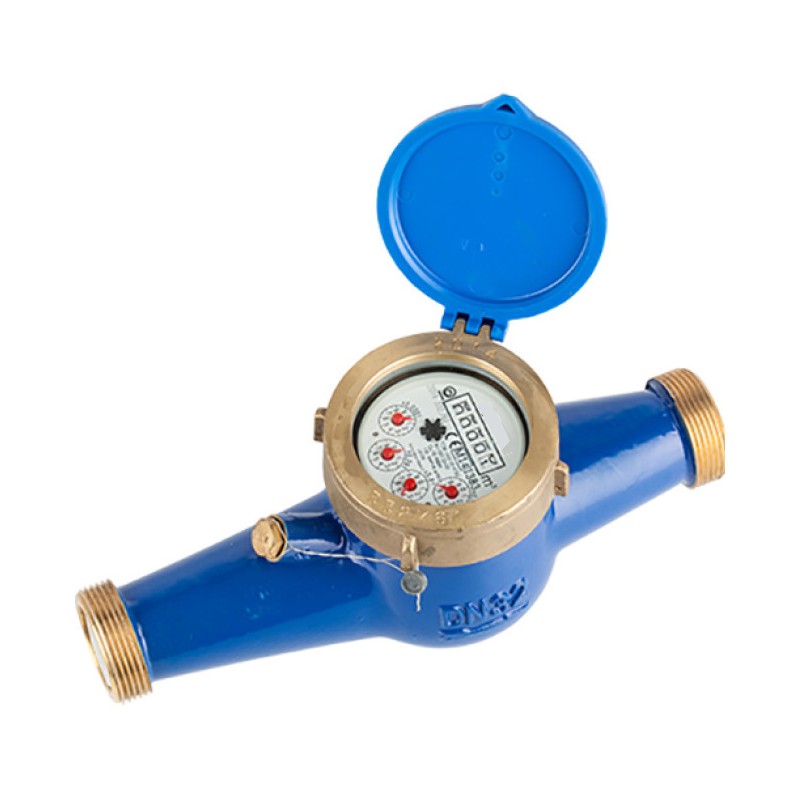

Multi-jet drinking water meter 40mm, 2 male inlet and outlet threads

Dry dial, multi-jet turbine meter with epoxy-coated metal body. Turbine and dial made of thermoplastic material. Model for cold water up to 30 ºC. Direct reading on 5-digit roller meter indicating m³. Vacuum dial assembly to prevent water condensation . Magnetic transmission protected against external magnetic fields (anti-fraud). High mechanical and wear resistance. No need for straight sections at the meter inlet or outlet. Approved for irrigation. Accuracy ratio R80 in horizontal position and R20 in vertical position. Pre-equipped for pulse transmitter with standard value 1/100 (1 pulse = 100 litres). Requires transmitter cable available as an option (see accessories). 6 models available : ½ - DN15 (G ¾ x ¾ BSP threaded body connections) ¾ - DN20 (G 1 x 1 BSP threaded body connections) 1 - DN25 (G 1¼ x 1¼ BSP threaded body connections) 1¼ - DN32 (G 1½ x 1½ BSP threaded body connections) 1½ - DN40 (G 2 x 2 BSP threaded body connections) 2 - DN50 (G 2½ x 2½ BSP threaded body connections) Operating temperature: 0.1ºC ~ 30ºC. Maximum pressure: 16 bar

Product Features:

• Dry dial multi-jet turbine counter
• Model for cold water up to 30 ºC
• Direct reading on 5-digit roller counter indicating m³
• Approval for irrigation

Frequently Asked Questions:

What is the maximum operating temperature?
The maximum operating temperature is 30ºC.

What type of water is compatible with this meter?
This meter is compatible with cold water .

Can this meter be used for irrigation?
Yes, this meter is approved for irrigation.

What is the maximum pressure that the meter can withstand?
The meter can withstand a maximum pressure of 16 bar.

How is the reading taken on this meter?
The reading is taken on a 5-digit roller meter indicating m³.
