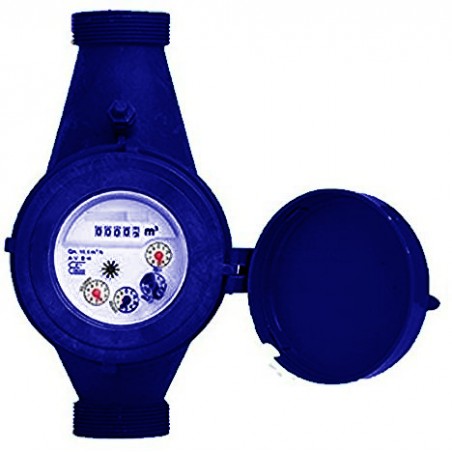

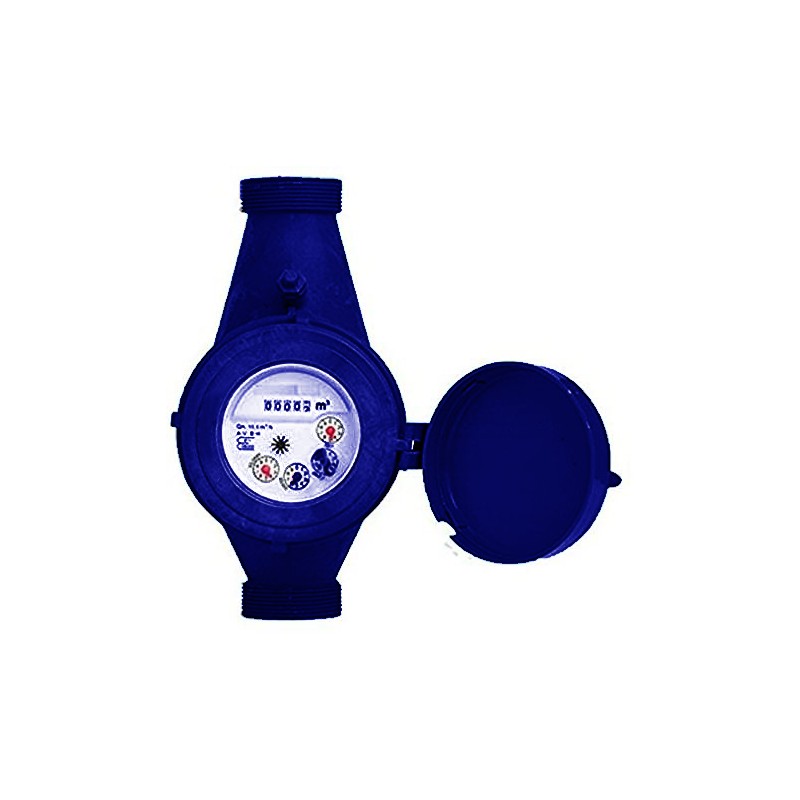

Water meter 20mm multi-jet, 3/4 male thread, EEC approval, maximum flow rate 5 m3/h

Multi-jet turbine counter with dry dial and body, turbine and clockwork made of thermoplastic material.

Model for cold water up to 30 ºC.

Body made of polyamide reinforced with fiberglass.

Direct reading on 5-digit roller counter indicating m³.

Vacuum assembly of watchmaking to prevent water condensation.

Magnetic transmission protected against external magnetic fields (anti-fraud).

High mechanical and wear resistance. No need for straight sections at the meter's entrance or exit.

EEC approval for irrigation. Class B in horizontal position and Class A in vertical position.

Pre-equipped for pulse transmitter with standard value 1/100 (1 pulse = 100 litres). Requires optionally available transmitter cable (see accessories).

4 models available:

¾ - DN20 (G 1 x 1 BSP threaded body connections)

1 - DN25 (G 1¼ x 1¼ BSP threaded body connections)

1¼ - DN32 (G 1½ x 1½ BSP threaded body connections)

1½ - DN40 (G 2 x 2 BSP threaded body connections)

Working temperature: 0.1ºC ~ 30ºC

Maximum pressure: 10 bar

Product Features:

• Dry dial multi-jet turbine counter


• EEC approval for irrigation


• Magnetic transmission protected against external magnetic fields


• Pre-equipped for pulse transmitter with standard value 1/100

Frequently Asked Questions:

What is the maximum operating temperature of the water meter?
The maximum operating temperature is 30 ºC.

What type of connections does the DN25 model have?
The DN25 model has G 1¼ x 1¼ BSP threaded body connections.

What type of approval does the water meter have?
The meter has Class B in horizontal position and Class A in vertical position.

Is an additional transmitter cable required for the pulse transmitter?
Yes, an optionally available transmitter cable is required.

What is the maximum pressure supported by the water meter?
The maximum pressure supported is 10 bar.
