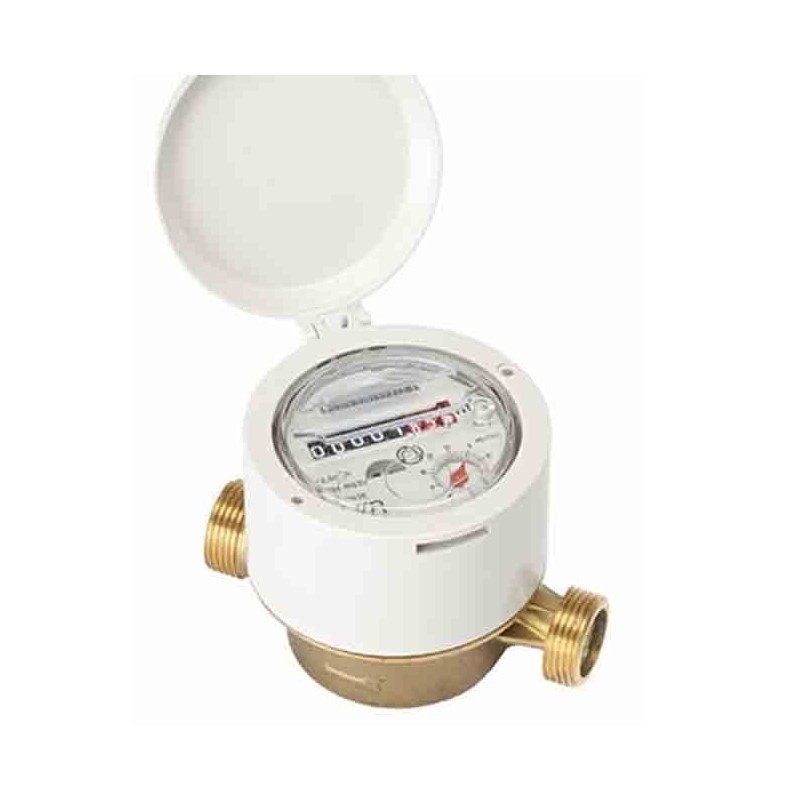

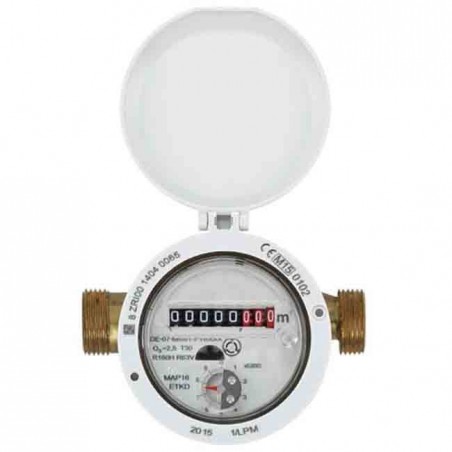

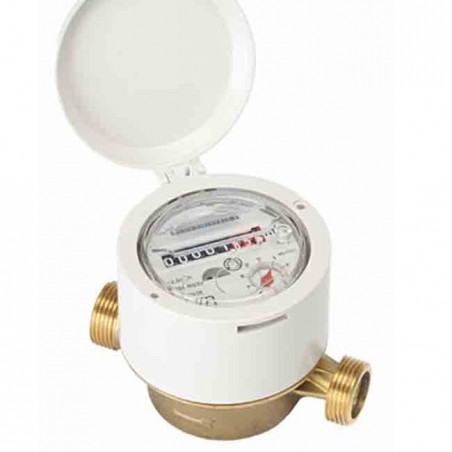

Single jet counter 13mm - 1/2, inlet thread 3/4, outlet thread 3/4, hot water

The single-jet meter guarantees the best starting values ​​and the highest possible measurement accuracy and stability at an optimum price/performance ratio. When carrying out demanding measurement tasks, it delivers precise measurement results thanks to its hydraulically optimised housing. Features: Dry dial meter with magnetic coupling. For cold water up to 30°C. Meter equipped with 8 rollers as standard. Use with hot water up to 90° C. Pre-equipped for use with pulse transmitter (to be purchased separately).

Product Features:

• Diameter 13 - 1/2. Length without fitting 11.5 cm. Flow rate 2.5 m3/h. Inlet thread 3/4 and outlet 3/4
• Diameter 15 - 1/2. Length without fitting 11 cm. Flow rate 2.5 m3/h. Inlet thread 7/8 and outlet 3/4
• Diameter 20 - 3/4. Length without fitting 13 cm. Flow rate 4 m3/h. Inlet thread 1 and outlet 1

Frequently Asked Questions:

What are the maximum water temperatures that the single jet meter can handle?
The single jet meter can handle hot water up to 90º C.

Does it come pre-installed for use with a pulse emitter?
Yes, the single jet meter comes pre-equipped for use with a pulse emitter, which is purchased separately.

What type of watchmaking does the single jet counter have?
The single jet counter features dry dial watchmaking with magnetic coupling.

What is the maximum flow rate that the single jet meter can measure?
The single jet meter has a maximum flow rate of 4 m3/h.

What is the length of the single jet counter without fitting?
The length of the single jet counter without fitting varies according to the diameter, being 11.5 cm, 11 cm and 13 cm for diameters 13, 15 and 20 respectively.
