Water meter 25mm multi-jet, male thread 1, EEC approval, maximum flow rate 7 m3/h

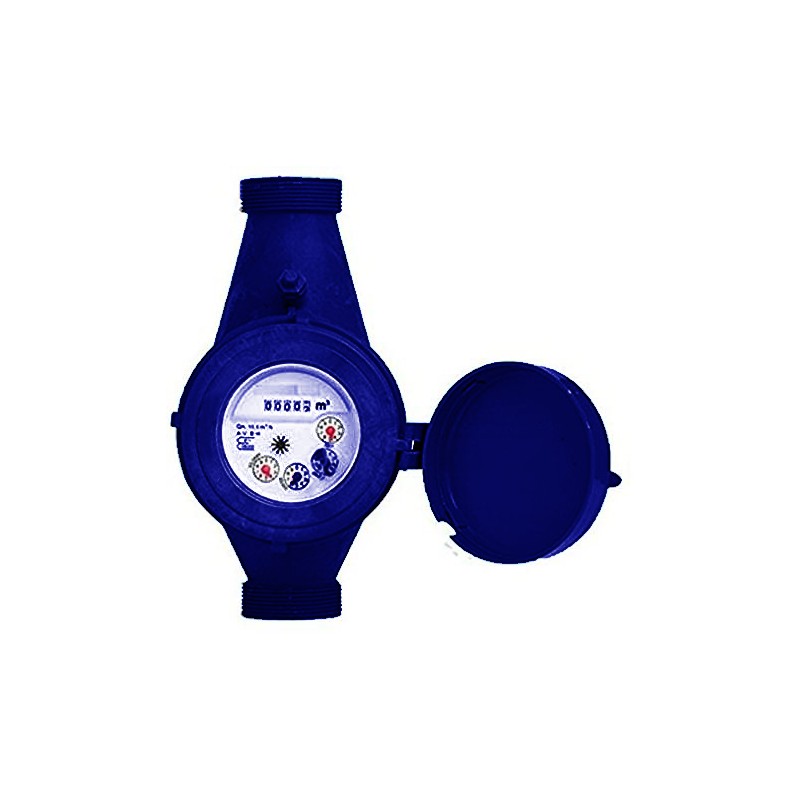

Dry dial, multi-jet turbine meter with thermoplastic body, turbine and flow meter. Model for cold water up to 30 ºC. Body made of fibreglass-reinforced polyamide. Direct reading on 5-digit roller meter indicating m³. Vacuum flow meter assembly to prevent water condensation. Magnetic transmission protected against external magnetic fields (anti-fraud). High mechanical and wear resistance. No need for straight sections at the meter inlet or outlet. EEC approval for irrigation. Class B in horizontal position and Class A in vertical position. Pre-equipped for pulse transmitter with standard value 1/100 (1 pulse = 100 litres). Requires transmitter cable available as an option (see accessories). 4 models available: ¾ - DN20 (G 1 x 1 BSP threaded body connections) 1 - DN25 (G 1¼ x 1¼ BSP threaded body connections) 1¼ - DN32 (G 1½ x 1½ BSP threaded body connections) 1½ - DN40 (G 2 x 2 BSP threaded body connections) Operating temperature: 0.1ºC ~ 30ºC. Maximum pressure: 10 bar

Product Features:

• Model for cold water up to 30 ºC
• Body in polyamide reinforced with fiberglass
• Direct reading on 5-digit roller counter
• EEC approval for irrigation

Frequently Asked Questions:

What is the maximum operating temperature of the water meter?
The maximum operating temperature is 30 ºC.

What is Magnetically Shielded Transmission used for?
Magnetically shielded transmission prevents fraud by protecting against external magnetic fields.

What does EEC approval mean for irrigation?
EEC approval guarantees that the meter complies with European standards for use in irrigation systems.

How is the water meter reading taken?
The reading is taken on a 5-digit roller meter indicating m³.

What is the maximum pressure that the water meter can withstand?
The water meter can withstand a maximum pressure of 10 bar.
