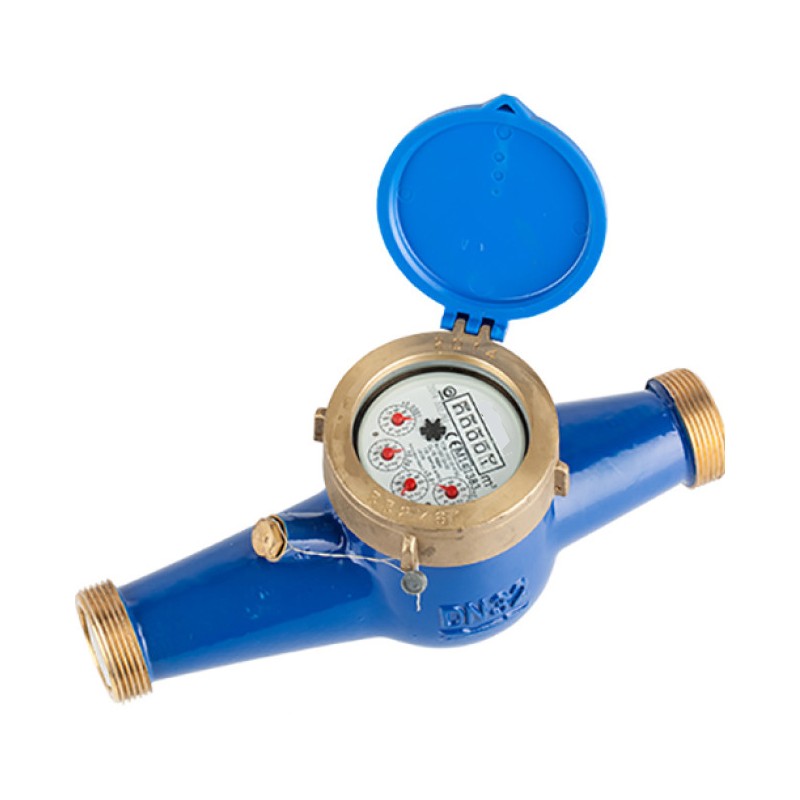

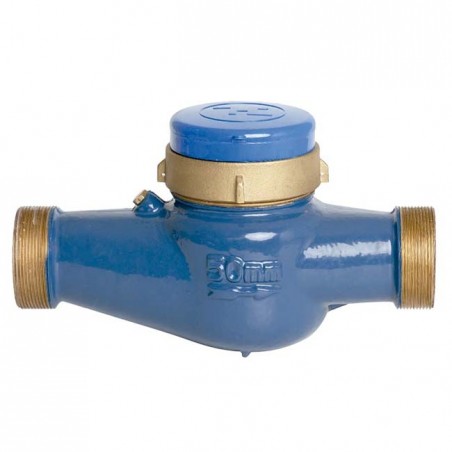

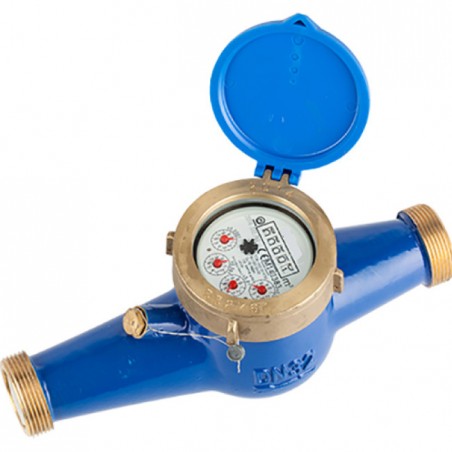

Multi-jet drinking water meter 32mm, 1 1/2 male inlet and outlet thread

Dry dial multi-jet turbine meter with epoxy-coated metal body. Model for cold water up to 30 ºC. Direct reading on 5-digit roller meter indicating m³. Vacuum-controlled assembly to prevent water condensation . Magnetic transmission protected against external magnetic fields (anti-fraud). High mechanical and wear resistance. No need for straight sections at the meter inlet or outlet. Approved for irrigation. Accuracy ratio R80 in horizontal position and R20 in vertical position. Pre-equipped for pulse transmitter with standard value 1/100 (1 pulse = 100 litres). Requires transmitter cable available as an option (see accessories). 6 models available : ½ - DN15 (G ¾ x ¾ BSP threaded body connections) ¾ - DN20 (G 1 x 1 BSP threaded body connections) 1 - DN25 (G 1¼ x 1¼ BSP threaded body connections) 1¼ - DN32 (G 1½ x 1½ BSP threaded body connections) 1½ - DN40 (G 2 x 2 BSP threaded body connections) 2 - DN50 (G 2½ x 2½ BSP threaded body connections). Operating temperature: 0.1ºC ~ 30ºC. Maximum pressure: 16 bar

Product Features:

• Dry dial multi-jet turbine counter
• Metal body coated with epoxy paint
• High mechanical and wear resistance
• Approval for irrigation

Frequently Asked Questions:

What is the maximum water temperature the meter can handle?
The meter can handle cold water up to 30ºC.

How is the meter protected against external magnetic fields?
The meter has magnetic transmission protected against external magnetic fields, making it anti-fraud.

What type of reading does the meter provide?
The meter provides a direct reading on a 5-digit roller meter indicating m³.

Are any additional accessories required for operation of the counter?
The counter is pre-equipped for pulse transmitter with standard value 1/100, which requires an optionally available transmitter cable.

What maximum pressure can the meter withstand?
The meter can withstand a maximum pressure of 16 bar.
