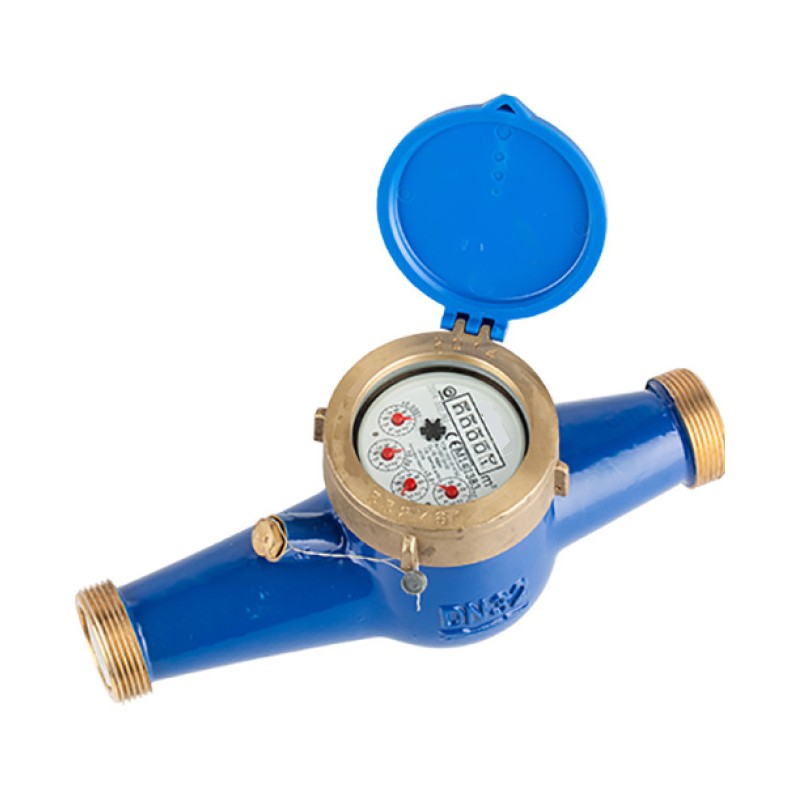

50mm Multi-Jet Potable Water Meter | 2 1/2" Male Inlet and Outlet Threads | Approved Irrigation Meter

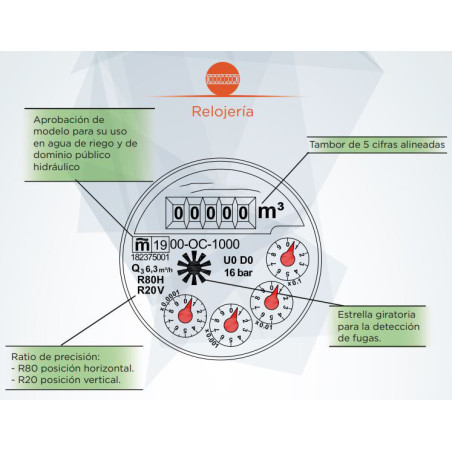

Multi-jet, dry-dial water meter with an epoxy-coated metal body. Turbine and clock mechanism made of thermoplastic. Model for cold water up to 30°C. Direct reading on a 5-digit roller counter indicating m³. Vacuum-sealed clock mechanism to prevent condensation. Magnetic transmission protected against external magnetic fields (anti-fraud). High mechanical and wear resistance. No straight sections required at the meter's inlet or outlet. Approved for irrigation. Accuracy ratio R80 in horizontal position and R20 in vertical position. Pre-equipped for a pulse transmitter with a standard value of 1/100 (1 pulse = 100 liters). Requires a transmitter cable, available separately (see accessories). 6 models available: 1/2 - DN15 (threaded body connections G 3/4 x 3/4 BSP) 3/4 - DN20 (threaded body connections G 1 x 1 BSP) 1 - DN25 (threaded body connections G 1 1/4 x 1 1/4 BSP) 1 1/4 - DN32 (threaded body connections G 1 1/2 x 1 1/2 BSP) 1 1/2 - DN40 (threaded body connections G 2 x 2 BSP) 2 - DN50 (threaded body connections G 2 1/2 x 2 1/2 BSP) Operating temperature: 0.1 ºC ~ 30 ºC Maximum pressure: 16 bar

Product features:

• Model for cold water up to 30°C.
• Direct reading on 5-digit roller counter indicating m³.
• High mechanical and wear resistance.
• Approval for irrigation.

Frequently Asked Questions:

What is the maximum operating temperature of the meter?
The maximum operating temperature is 30°C.

Does the meter come pre-installed for a pulse emitter?
Yes, the counter comes pre-equipped for pulse emitter with standard value 1/100.

What is the maximum pressure the meter can withstand?
The maximum pressure that the meter can withstand is 16 bar.

How many different models are available?
Six different models are available.

What type of protection does magnetic transmission have?
The magnetic transmission is protected against external magnetic fields to prevent fraud.
