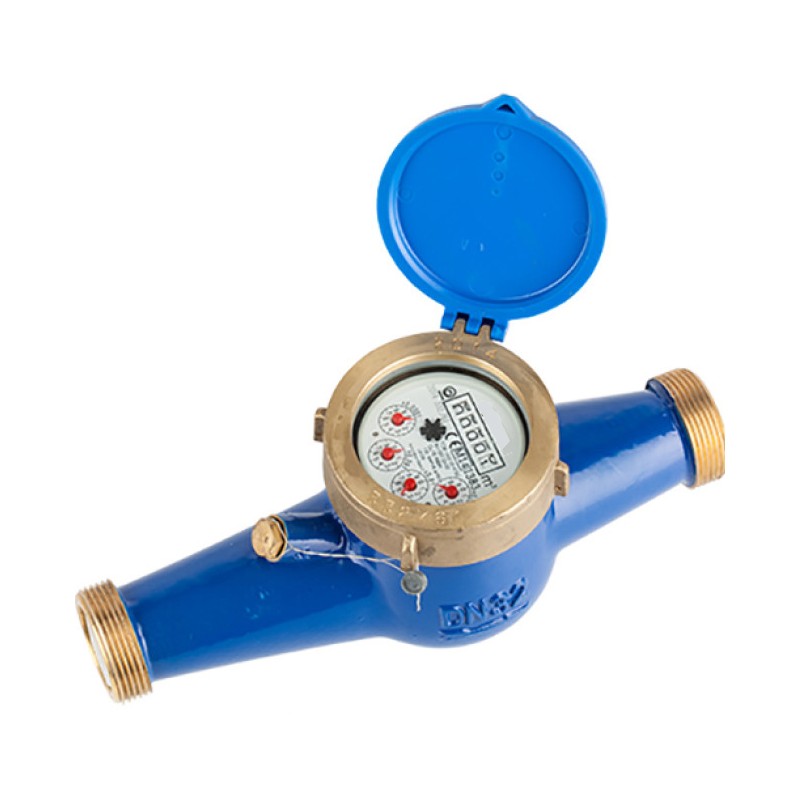

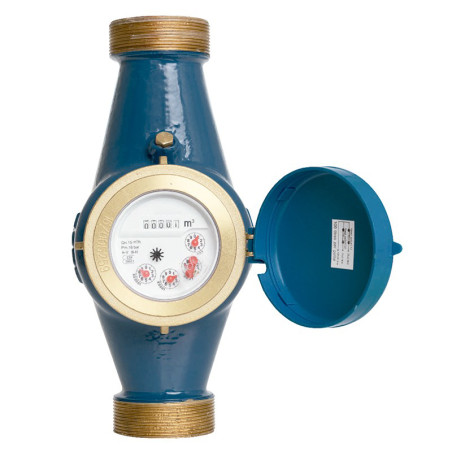

20mm Multi-Jet Potable Water Meter | 1" Male Inlet and Outlet Threads | Approved Irrigation Meter

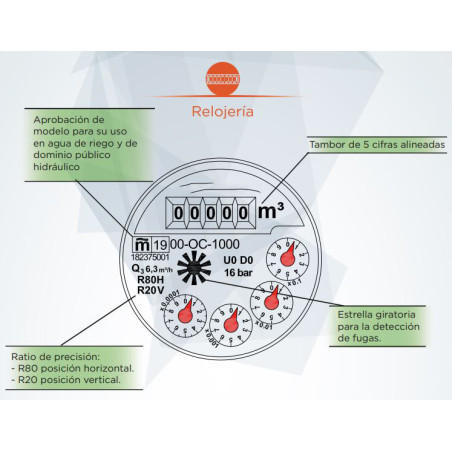

Multi-jet turbine water meter with a dry dial and metal body coated with epoxy paint. Turbine and clock mechanism made of thermoplastic material. Model for cold water up to 30°C. Direct reading on a 5-digit roller counter indicating m³. Vacuum-sealed clock mechanism to prevent water condensation. Magnetic transmission protected against external magnetic fields (anti-tamper). High mechanical and wear resistance. No straight sections required at the meter's inlet or outlet. Approved for irrigation. Accuracy ratio R80 in horizontal position and R20 in vertical position. Pre-equipped for a pulse transmitter with a standard value of 1/100 (1 pulse = 100 liters). Requires a transmitter cable, available as an option (see accessories). 6 models available: 1/2 - DN15 (threaded body connections G 3/4 x 3/4 BSP) 3/4 - DN20 (threaded body connections G 1 x 1 BSP) 1 - DN25 (threaded body connections G 1 1/4 x 1 1/4 BSP) 1 1/4 - DN32 (threaded body connections G 1 1/2 x 1 1/2 BSP) 1 1/2 - DN40 (threaded body connections G 2 x 2 BSP) 2 - DN50 (threaded body connections G 2 1/2 x 2 1/2 BSP) Operating temperature: 0.1 ºC ~ 30 ºC Maximum pressure: 16 bar

Product features:

• Multi-jet turbine counter.
• Metal body coated with epoxy paint.
• High mechanical and wear resistance.
• Approval for irrigation.

Frequently Asked Questions:

Which model is available for cold water?
The model available for cold water is up to 30°C.

What type of direct reading does the meter offer?
The counter provides a direct reading on a 5-digit roller counter indicating m³.

What is the maximum pressure the meter can withstand?
The meter can withstand a maximum pressure of 16 bar.

What is the meter pre-equipped for?
The meter is pre-equipped for pulse emitter with standard value 1/100 (1 pulse = 100 liters).

What is the operating temperature of the meter?
The operating temperature is from 0.1°C to 30°C.
