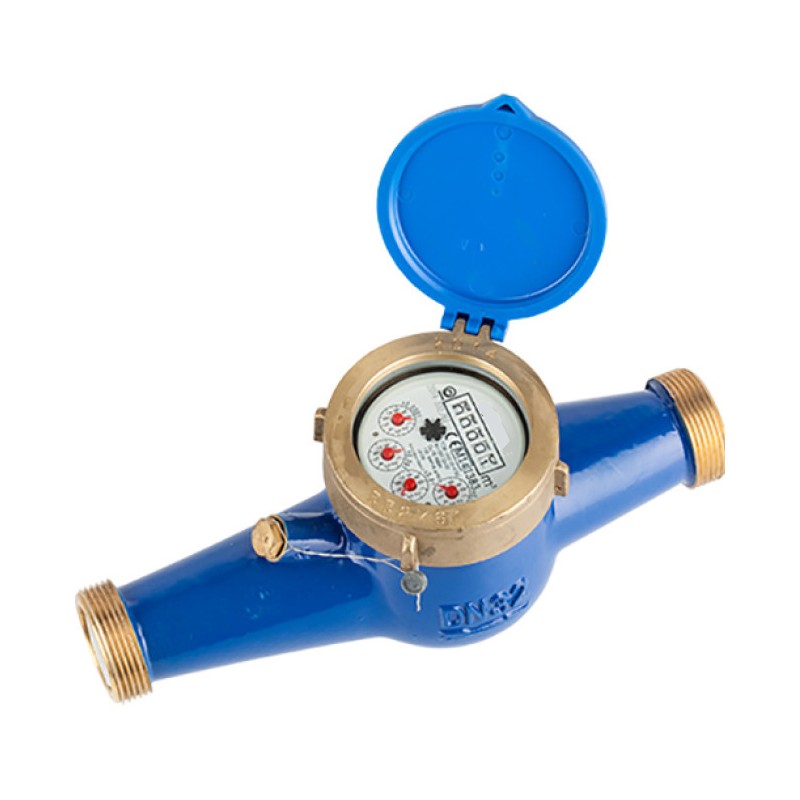

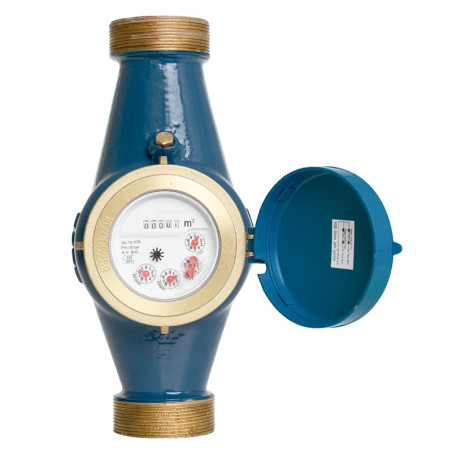

40mm Multi-Jet Potable Water Meter | 2" Male Inlet and Outlet Threads | Approved Irrigation Meter

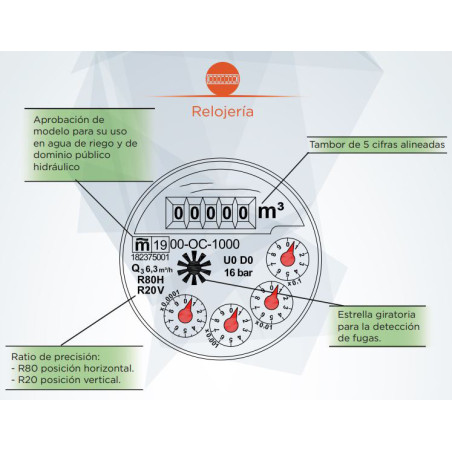

Multi-jet turbine water meter with a dry dial and metal body coated with epoxy paint. Turbine and clock mechanism made of thermoplastic material. Model for cold water up to 30°C. Direct reading on a 5-digit roller counter indicating m³. Vacuum-sealed clock mechanism to prevent water condensation. Magnetic transmission protected against external magnetic fields (anti-tamper). High mechanical and wear resistance. No straight sections required at the meter's inlet or outlet. Approved for irrigation. Accuracy ratio R80 in horizontal position and R20 in vertical position. Pre-equipped for a pulse transmitter with a standard value of 1/100 (1 pulse = 100 liters). Requires a transmitter cable, available as an option (see accessories). 6 models available: 1/2 - DN15 (threaded body connections G 3/4 x 3/4 BSP) 3/4 - DN20 (threaded body connections G 1 x 1 BSP) 1 - DN25 (threaded body connections G 1 1/4 x 1 1/4 BSP) 1 1/4 - DN32 (threaded body connections G 1 1/2 x 1 1/2 BSP) 1 1/2 - DN40 (threaded body connections G 2 x 2 BSP) 2 - DN50 (threaded body connections G 2 1/2 x 2 1/2 BSP) Operating temperature: 0.1 °C ~ 30 °C. Maximum pressure: 16 bar

Product features:

• Multi-jet turbine counter and dry sphere.
• Model for cold water up to 30°C.
• Direct reading on 5-digit roller counter indicating m³.
• Approval for irrigation.

Frequently Asked Questions:

What is the maximum operating temperature?
The maximum operating temperature is 30°C.

What type of water is compatible with this meter?
This meter is compatible with cold water .

Can this meter be used for irrigation?
Yes, this meter is approved for irrigation.

What is the maximum pressure the meter can withstand?
The meter can withstand a maximum pressure of 16 bar.

How is the reading taken on this meter?
The reading is taken on a 5-digit roller counter that indicates m³.
