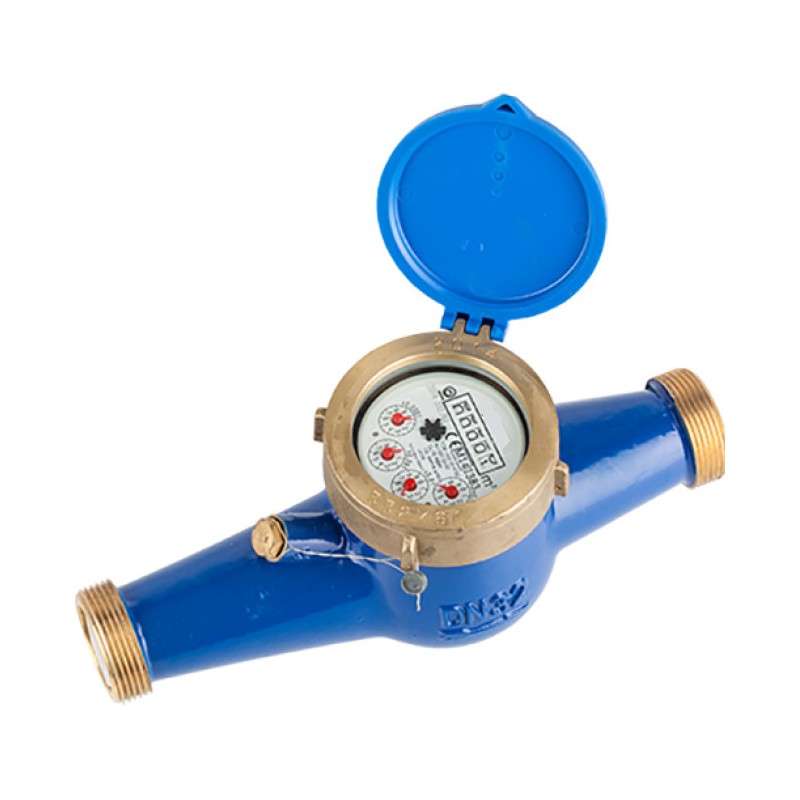

25mm Multi-Jet Potable Water Meter | 1 1/4" Male Inlet and Outlet Threads | Approved Irrigation Meter

Multi-jet turbine and dry dial meter with metal body coated with epoxy paint.

Turbine and clockwork made of thermoplastic material.

Model for cold water up to 30°C.

Direct reading on 5-digit roller counter indicating m³.

Vacuum watchmaking assembly to prevent water condensation.

Magnetic transmission protected against external magnetic fields (anti-fraud).

High mechanical and wear resistance. No need for straight sections at the meter's inlet or outlet.

Approval for irrigation. Accuracy ratio R80 in horizontal position and R20 in vertical position.

Pre-equipped for pulse emitter with standard value 1/100 (1 pulse = 100 liters). Requires transmitter cable available optionally (see accessories).

Product features:

• Multi-jet turbine counter and dry sphere.
• Metal body coated with epoxy paint.
• High mechanical and wear resistance.
• Approval for irrigation.

Frequently Asked Questions:

What temperature is this drinking water meter designed for?
This meter is designed for cold water up to 30°C.

What type of protection does it have against external magnetic fields?
Magnetic transmission protected against external magnetic fields (anti-fraud).

What models are available for this drinking water meter?
6 models available: ½ - DN15, ¾ - DN20, 1 - DN25, 1¼ - DN32, 1½ - DN40, 2 - DN50.

What type of reading does this drinking water meter provide?
Provides direct reading on 5-digit roller counter indicating m³.

What is the maximum pressure this drinking water meter can withstand?
The maximum pressure it can withstand is 16 bar.
