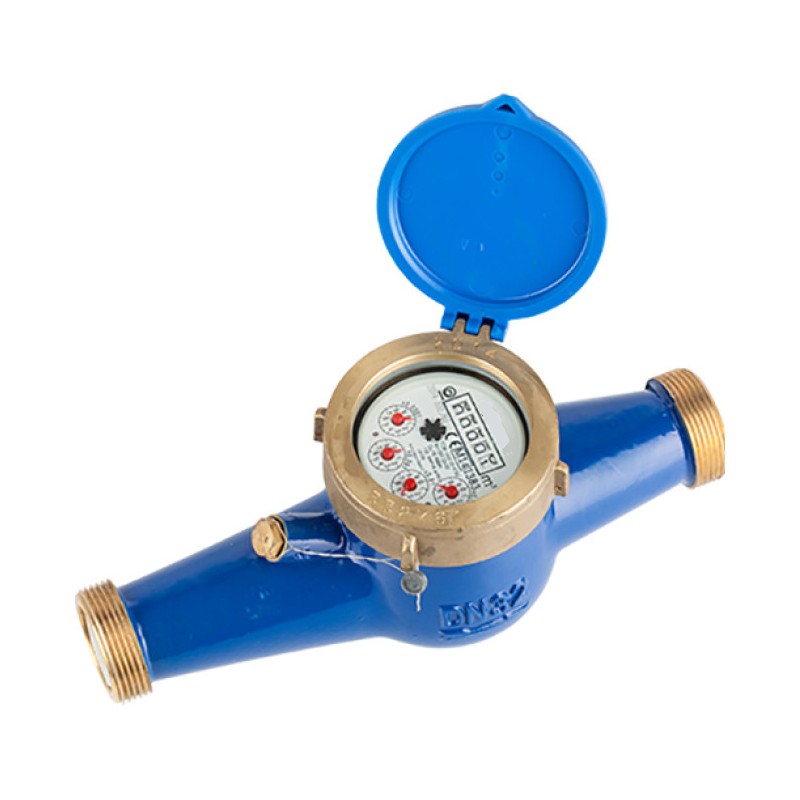

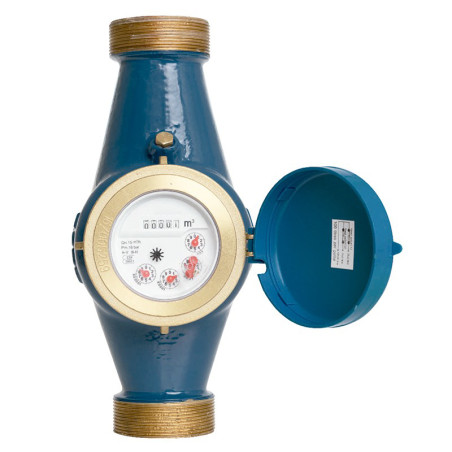

32mm Multi-Jet Potable Water Meter | 1 1/2" Male Inlet and Outlet Threads | Approved Irrigation Meter

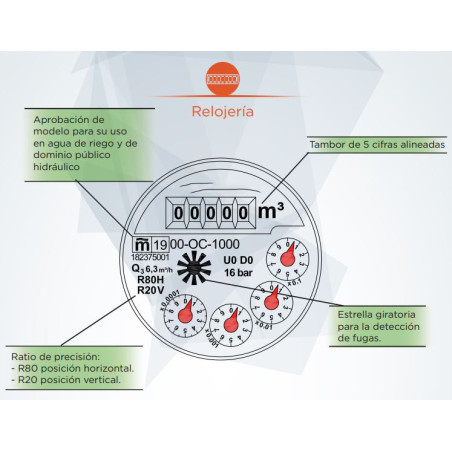

Multi-jet turbine water meter with a dry dial and epoxy-coated metal body. Suitable for cold water up to 30°C. Direct reading on a 5-digit roller counter indicating m³. Vacuum gauge assembly to prevent condensation . Magnetic transmission protected against external magnetic fields (anti-fraud). High mechanical and wear resistance. No straight sections required at the meter's inlet or outlet. Approved for irrigation. Accuracy ratio R80 in horizontal position and R20 in vertical position. Pre-equipped for a pulse transmitter with a standard value of 1/100 (1 pulse = 100 liters). Requires a transmitter cable, available separately (see accessories). 6 models available: 1/2 - DN15 (threaded body connections G 3/4 x 3/4 BSP), 3/4 - DN20 (threaded body connections G 1 x 1 BSP), 1 - DN25 (threaded body connections G 1 1/4 x 1 1/4 BSP), 1 1/4 - DN32 (threaded body connections G 1 1/2 x 1 1/2 BSP), 1 1/2 - DN40 (threaded body connections G 2 x 2 BSP), 2 - DN50 (threaded body connections G 2 1/2 x 2 1/2 BSP). Operating temperature: 0.1 °C ~ 30 °C. Maximum pressure: 16 bar

Product features:

• Multi-jet turbine counter and dry sphere.
• Metal body coated with epoxy paint.
• High mechanical and wear resistance.
• Approval for irrigation.

Frequently Asked Questions:

What is the maximum water temperature that the meter can handle?
The meter can handle cold water up to 30°C.

How is the meter protected against external magnetic fields?
The meter features magnetic transmission protected against external magnetic fields, making it anti-fraud.

What type of reading does the meter provide?
The counter provides a direct reading on a 5-digit roller counter indicating m³.

Are any additional accessories required for the counter to function?
The counter is pre-equipped for a pulse emitter with a standard value of 1/100, which requires an optionally available transmitter cable.

What is the maximum pressure the meter can withstand?
The meter can withstand a maximum pressure of 16 bar.
