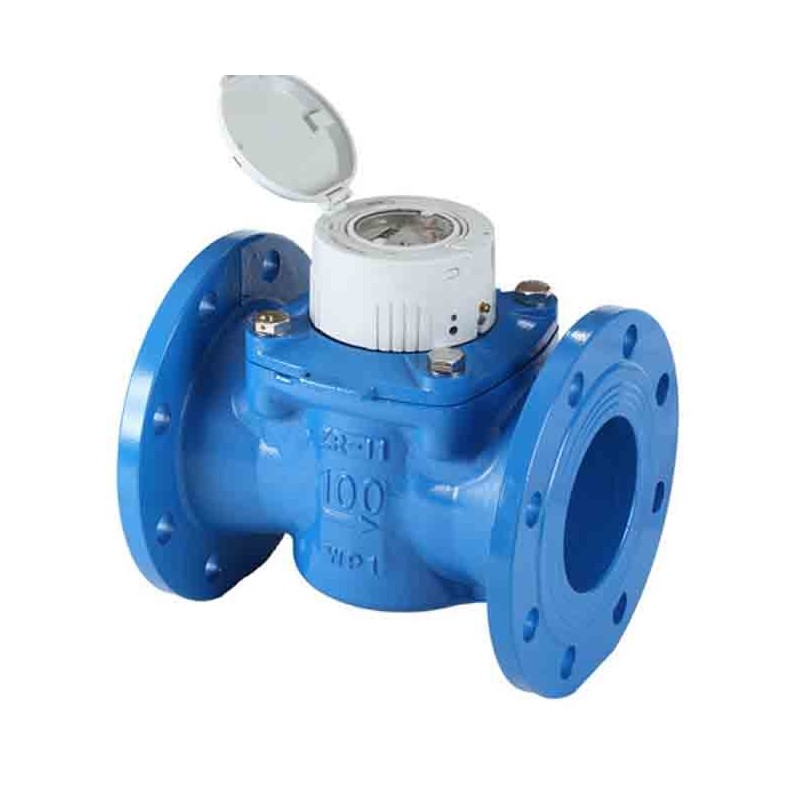

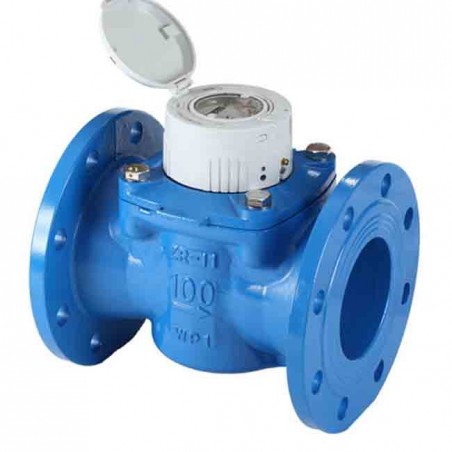

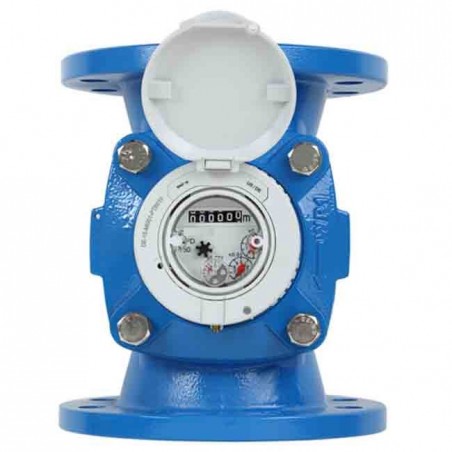

Woltman cold water meter DN 100 - 4 flange

High-volume water meter with turbine shaft parallel to the flow direction. The SUINGA Woltman parallel high-volume water meter is specially designed for high flow rates with a predominantly constant flow profile. Thanks to its robust construction, the meter can cover a wide measuring range and is very stable in terms of measurement accuracy over the long term. It is therefore suitable for virtually all measuring tasks in the supply and distribution of drinking water. The housing has been optimised in terms of flow technology, and the measuring insert has been redesigned as a replaceable metrological unit in accordance with MID. In combination with the latest turbine holder, homogeneous and long-term stable error curves have been achieved. EC certificate of conformity according to directive 2014/32/EU (MID) for residential or industrial use. Ready-equipped for telecommunications via pulse transmitter.

Product Features:

• Available from DN50 2 to DN500 20.


• Model DN50 - 2. Length 20 cm. Flow rate 40 m3/h. Flange connection.


• Model DN65 - 2 1/2. Length 20 cm. Flow rate 40 m3/h. Flange connection.


• Model DN80 - 3. Length 22.5 cm. Flow rate 63 m3/h. Flange connection.


• Model DN100 - 4. Length 25 cm. Flow rate 100 m3/h. Flange connection.

Frequently Asked Questions:

What is the Woltman cold water meter DN 100 - 4 flange used for?
The Woltman cold water meter DN 100 - 4 flange is used to measure large volumes of water with precision and long-term stability in drinking water supply and distribution systems.

What certifications does the Woltman cold water meter DN 100 - 4 flange have?
The meter has a CE Conformity Certificate according to directive 2014/32 / EU (MID) for residential or industrial use.

What models are available for the Woltman cold water meter DN 100 - 4 flange?
The available models range from DN50 - 2 to DN500 - 20, covering different flow rates and lengths to suit different needs.

Is the Woltman cold water meter DN 100 - 4 flange suitable for residential use?
Yes, the Woltman cold water meter DN 100 - 4 flange is certified for residential use and can be used in homes to measure water consumption.

Can the technical team be consulted for larger measurements of the Woltman cold water meter DN 100 - 4 flange?
Yes, it is recommended to consult the technical team for larger measurements or any technical questions related to the Woltman cold water meter DN 100 - 4 flange.
