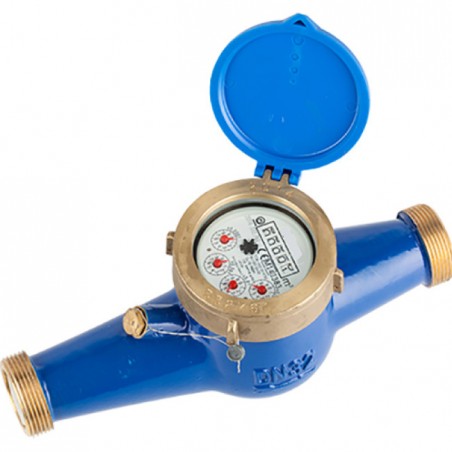

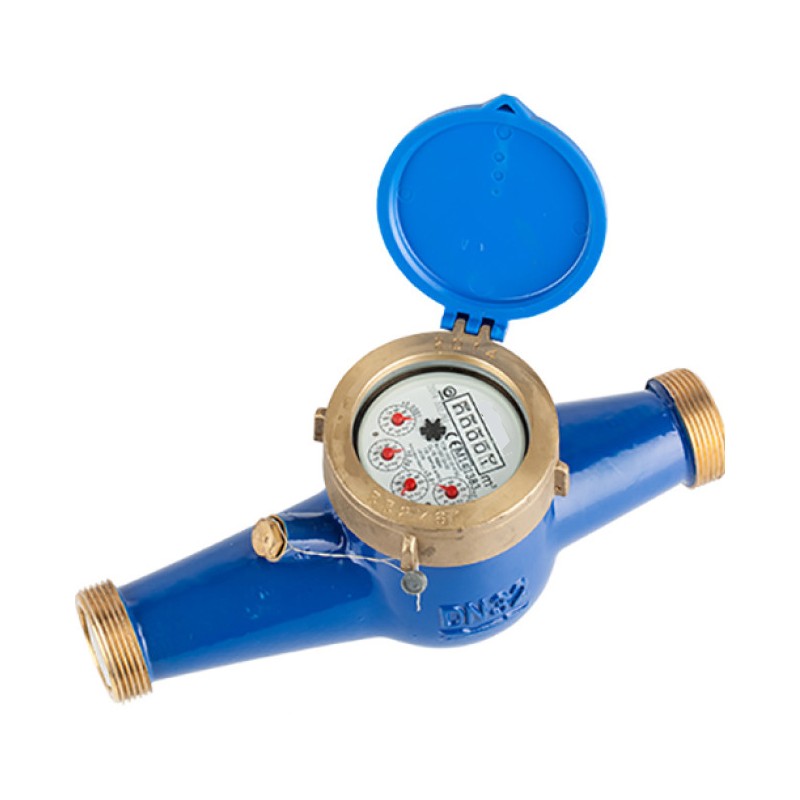

Multi-jet drinking water meter 25mm, 1 1/4 male inlet and outlet thread

Multi-jet turbine meter with dry dial and metal body coated with epoxy paint.

Turbine and clockwork in thermoplastic material.

Model for cold water up to 30 ºC.

Direct reading on 5-digit roller counter indicating m³.

Vacuum assembly of watchmaking to prevent water condensation.

Magnetic transmission protected against external magnetic fields (anti-fraud).

High mechanical and wear resistance. No need for straight sections at the meter's entrance or exit.

Approved for irrigation. Accuracy ratio R80 in horizontal position and R20 in vertical position.

Pre-equipped for pulse transmitter with standard value 1/100 (1 pulse = 100 litres). Requires optionally available transmitter cable (see accessories).

Product Features:

• 6 models available
• Working temperature: 0.1ºC ~ 30ºC
• Maximum pressure: 16 bar

Frequently Asked Questions:

What temperature is this drinking water meter designed for?
This meter is designed for cold water up to 30 ºC.

What kind of protection does it have against external magnetic fields?
Magnetic transmission protected against external magnetic fields (anti-fraud).

What models are available for this drinking water meter?

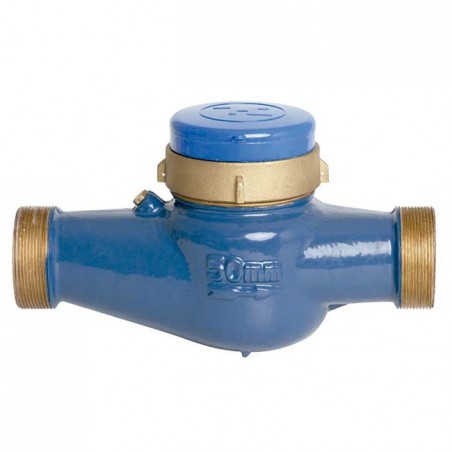

6 models available: ½ - DN15, ¾ - DN20, 1 - DN25, 1¼ - DN32, 1½ - DN40, 2 - DN50.

What type of reading does this drinking water meter provide?
It provides direct reading on a 5-digit roller meter indicating m³.

What is the maximum pressure that this drinking water meter can withstand?
The maximum pressure it can withstand is 16 bar.
