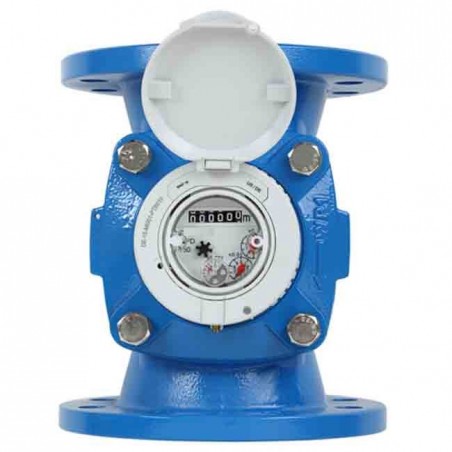

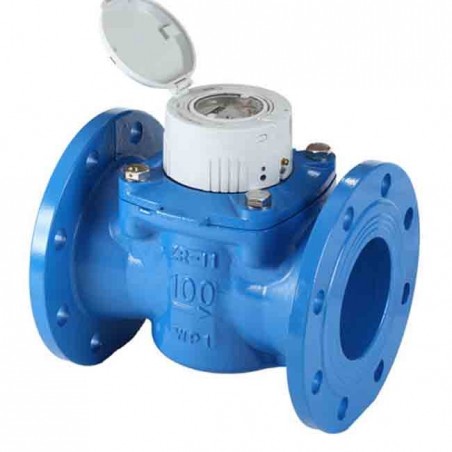

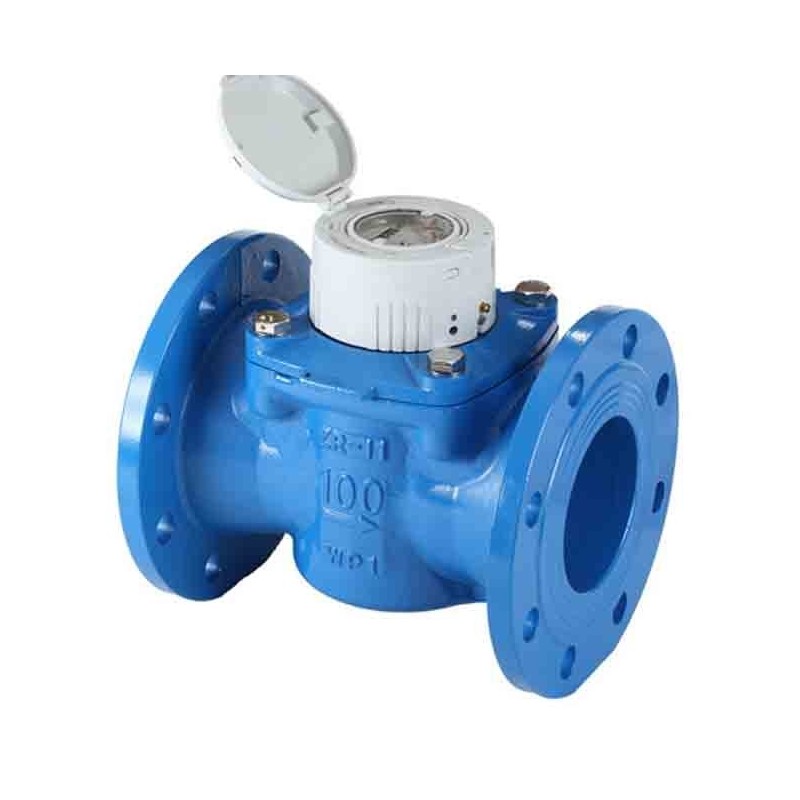

Woltman cold water meter DN 300 - 12 flange

Available from DN50 2 to DN500 20. High-volume water meter with turbine shaft parallel to the flow direction. The SUINGA Woltman parallel high-volume water meter is specially designed for high flow rates with a predominantly constant flow profile. Thanks to its robust construction, the meter can cover a wide measuring range and is very stable in terms of long-term measurement accuracy. It is therefore able to cover almost all measurement tasks in the supply and distribution of drinking water. The housing has been optimised in terms of flow technology, and the measuring insert has been redesigned as a replaceable metrological unit in accordance with MID. In combination with the latest turbine holder, homogeneous and long-term stable error curves have been achieved. EC certificate of conformity according to directive 2014/32/EU (MID) for residential or industrial use. Ready-equipped for telecommunications via pulse transmitter.

Product Features:

• Model DN50 - 2. Length 20 cm. Flow rate 40 m3/h. Flange connection.


• Model DN65 - 2 1/2. Length 20 cm. Flow rate 40 m3/h. Flange connection.


• Model DN80 - 3. Length 22.5 cm. Flow rate 63 m3/h. Flange connection.


• Model DN100 - 4. Length 25 cm. Flow rate 100 m3/h. Flange connection.

Frequently Asked Questions:

What type of use is this Woltman meter recommended for?
This Woltman meter is recommended for residential and industrial use, with CE conformity certificate.

What is the maximum flow capacity of the DN300 - 12 model?
The DN300 - 12 model has a flow capacity of 1000 m3/h.

Is the Woltman meter pre-installed for telecommunications?
Yes, the Woltman meter is pre-equipped for telecommunications using a pulse emitter.

Can I purchase larger sizes than those specified?
Yes, you can consult the technical team to purchase larger sizes or to clarify technical queries.

What flow profile is this meter capable of measuring?
The Woltman meter is capable of measuring high flows with a predominantly constant profile.
