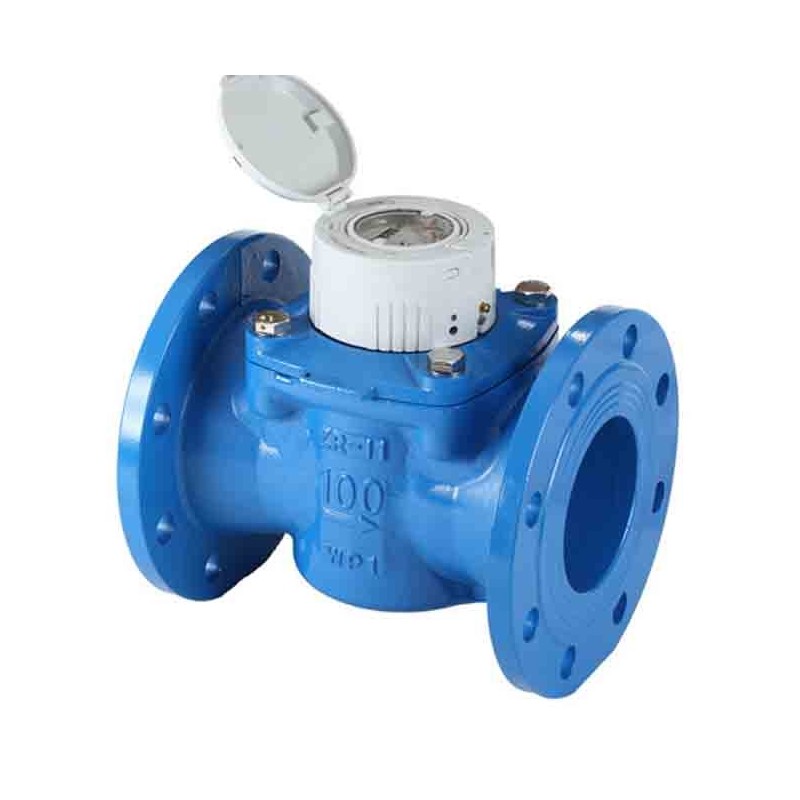

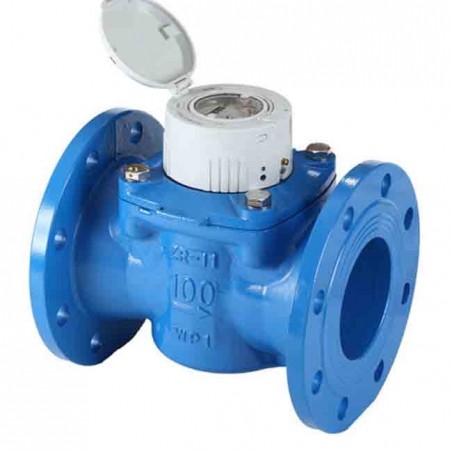

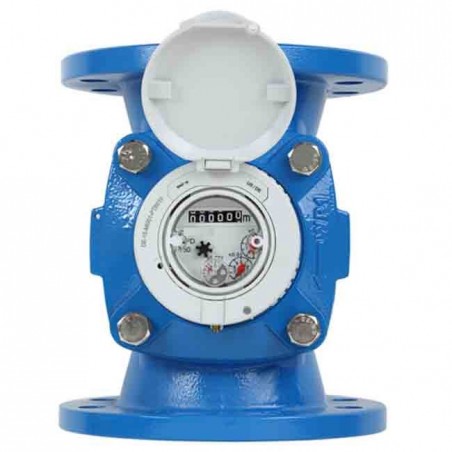

Woltman cold water meter DN 150 - 6 flange

Available from DN50 2 to DN500 20. High-volume water meter with turbine shaft parallel to the flow direction. The SUINGA Woltman parallel high-volume water meter is specially designed for high flow rates with a predominantly constant flow profile. Thanks to its robust construction, the meter can cover a wide measuring range and is very stable in terms of long-term measurement accuracy. It is therefore able to cover almost all measurement tasks in the supply and distribution of drinking water. The housing has been optimised in terms of flow technology, and the measuring insert has been redesigned as a replaceable metrological unit in accordance with MID. In combination with the latest turbine holder, homogeneous and long-term stable error curves have been achieved. EC certificate of conformity according to directive 2014/32/EU (MID) for residential or industrial use. Ready-equipped for telecommunications via pulse transmitter.

Product Features:

• Model DN50 - 2. Length 20 cm. Flow rate 40 m3/h. Flange connection.


• Model DN65 - 2 1/2. Length 20 cm. Flow rate 40 m3/h. Flange connection.


• Model DN80 - 3. Length 22.5 cm. Flow rate 63 m3/h. Flange connection.


• Model DN100 - 4. Length 25 cm. Flow rate 100 m3/h. Flange connection.

Frequently Asked Questions:

What kind of applications is the Woltman cold water meter DN 150 - 6 with flange suitable for?
The Woltman cold water meter DN 150 - 6 with flange is suitable for residential and industrial applications requiring high-precision measurement of large volumes of water.

What is the flow capacity of the DN150 - 6 model?
The DN150 - 6 model has a flow capacity of 250 m3/h, making it ideal for environments where large water flows need to be measured.

Is the Woltman cold water meter DN 150 - 6 with flange easy to install?
Yes, the Woltman cold water meter DN 150 - 6 with flange is designed for easy installation, with a flange connection that simplifies the process.

Does the Woltman cold water meter DN 150 - 6 with flange comply with quality regulations?
Yes, the Woltman cold water meter DN 150 - 6 with flange has a CE Certificate of Conformity according to directive 2014/32 / EU (MID), guaranteeing its quality and measurement accuracy.

Can the Woltman cold water meter DN 150 - 6 with flange be used in telecommunications systems?
Yes, the Woltman cold water meter DN 150 - 6 with flange is pre-equipped for telecommunications using a pulse emitter, which makes it easy to integrate into monitoring and control systems.
