Oscillating bottom nozzle for concrete pools.
€28.37
Impuestos incluidos
- 15 liter capacity skimmer with standard mouth and circular pressure cap for concrete pools.
- With anti-UV treatment in the parts that are not buried.
- Made of ABS, with gate float and clapper for flow regulation.
- Connections:
- Lower suction connection: internal thread 1½ ", external 2".
- Simultaneous connection to the drain: internal Ø 50 mm
- Upper connection for evacuation of excess water: Ø 40 mm
- Includes basket for leaf collecting.
- Recommended flow: 5 m³ / h
- It is recommended to install a skimmer for every 25 m² of water surface area.
- Made in Spain

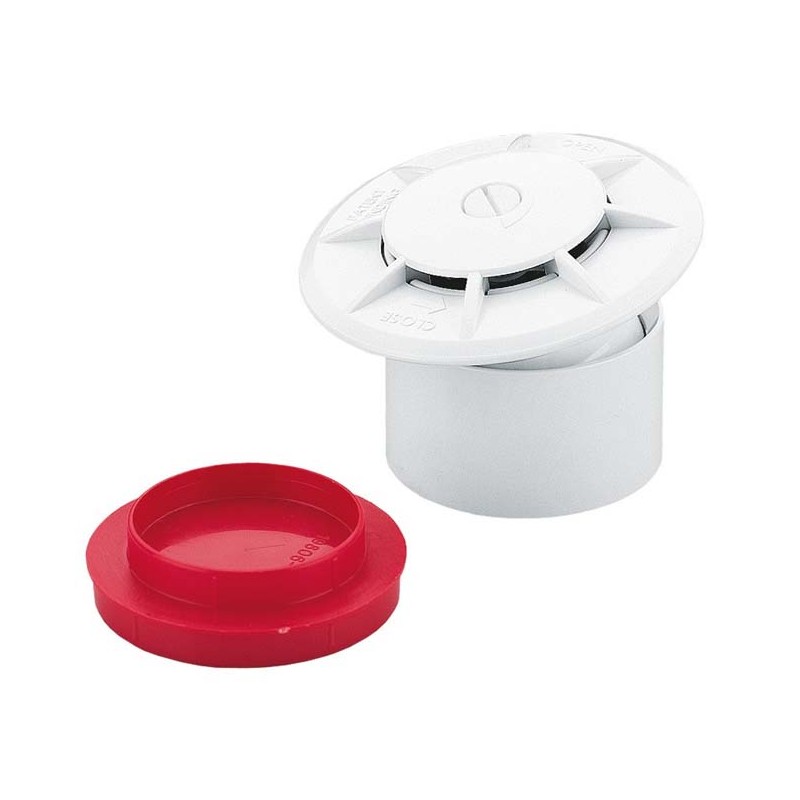

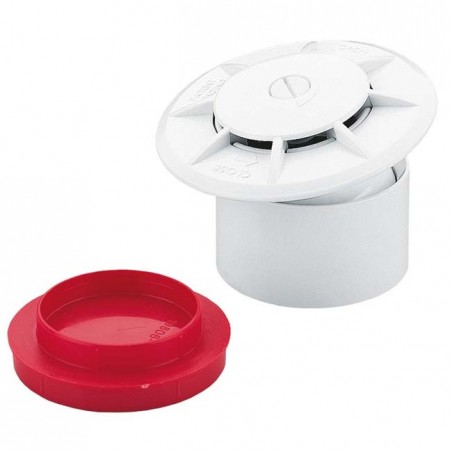

Oscillating bottom nozzle

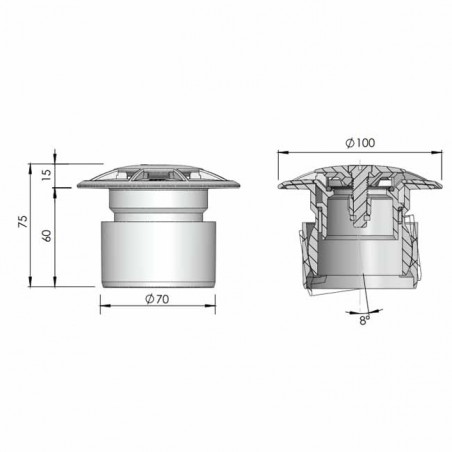

Oscillating bottom nozzle for concrete pools. Allows adjustments of up to 8º, making nozzle installation easier. Oscillating PVC body. ABS cover. POM regulating screw. Maximum flow rate: 10 m³/h. Adaptable to Ø 75 mm pipe and wall bushing.
Product Features:
- Allows adjustments of up to 8º
- PVC oscillating body
- ABS cover
- Maximum flow rate: 10 m³/h
Frequently Asked Questions:
What are the maximum adjustments that can be made?
Adjustments of up to 8º are possible to facilitate installation.
What material is the swing body made of?
The swing body is made of PVC, a strong and durable material.
What is the maximum flow rate it can support?
The maximum flow rate it can support is 10 m³/h.
Can it be adapted to different pipe sizes?
Yes, it is adaptable to Ø 75 mm pipe and wall bushing.
What material is used for the cap?
The nozzle cap is made of ABS, a corrosion-resistant and durable material.
FL22353
320 Artículos
Ficha técnica
- Color
- Blanco
Referencias específicas
No customer reviews for the moment.
