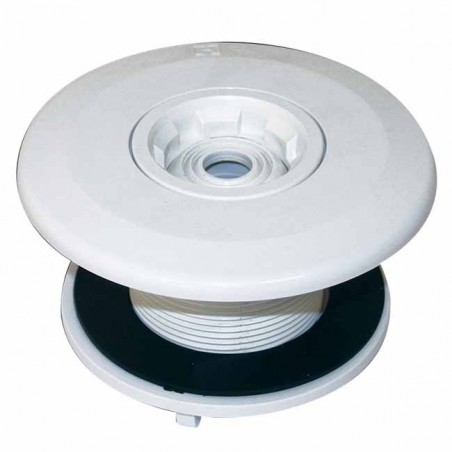

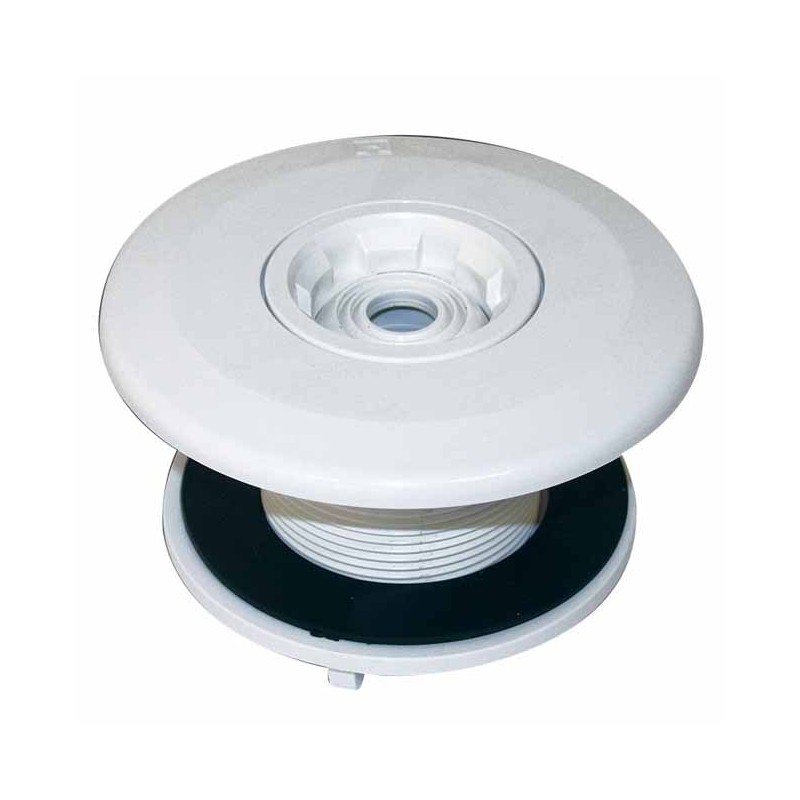

- Novo
Multiflow injection nozzle with 2" external thread and internal Ø 50 mm glue.
€15.58
Impuestos incluidos
- 15 liter capacity skimmer with standard mouth and circular pressure cap for concrete pools.
- With anti-UV treatment in the parts that are not buried.
- Made of ABS, with gate float and clapper for flow regulation.
- Connections:
- Lower suction connection: internal thread 1½ ", external 2".
- Simultaneous connection to the drain: internal Ø 50 mm
- Upper connection for evacuation of excess water: Ø 40 mm
- Includes basket for leaf collecting.
- Recommended flow: 5 m³ / h
- It is recommended to install a skimmer for every 25 m² of water surface area.
- Made in Spain
Multiflow discharge nozzle with 2 mm external thread and Ø 50 mm glue-on internal thread.

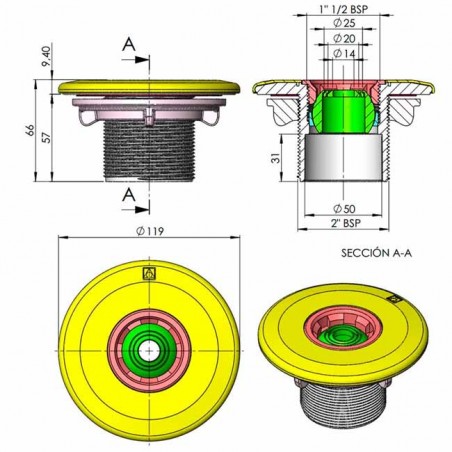

Multiflow inlet with 2 external thread and Ø 50 mm glue-on internal thread. Made of white ABS. For prefabricated pools. Multiflow system. The inlet ball is supplied pre-marked with a series of diameters (14-20 and 25). Using a punch, one of the diameters can be selected at the time of installation. Maximum recommended flow rate for a maximum flow rate of 4 m/s, according to EN 13451-1: Ø 14 mm = 2.2 m³/h Ø 20 mm = 4.5 m³/h Ø 25 mm = 7 m³/h
Product Features:
- Made of ABS in white color
- For prefabricated pools
- Multiflow system for diameter selection
- Maximum recommended flow rate according to EN 13451-1 standard
Frequently Asked Questions:
What is the material of the mouthpiece?
The mouthpiece is made of white ABS for durability.
What type of pools is this nozzle recommended for?
This nozzle is ideal for prefabricated pools.
What is the nozzle's Multiflow system?
The Multiflow system allows you to easily select different water outlet diameters.
What is the maximum recommended flow rate for this nozzle?
According to EN 13451-1, the maximum flow rate varies depending on the selected diameter, being up to 7 m³/h.
Can the water outlet diameter be changed after installation?
Yes, with the help of a punch the desired diameter can be selected at any time.
FL00334
311 Itens
Ficha informativa
- Color
- Blanco
Referências específicas
No customer reviews for the moment.
