- New
Norm drain with flat grate for concrete pools, white
€40.64
Impuestos incluidos
- 15 liter capacity skimmer with standard mouth and circular pressure cap for concrete pools.
- With anti-UV treatment in the parts that are not buried.
- Made of ABS, with gate float and clapper for flow regulation.
- Connections:
- Lower suction connection: internal thread 1½ ", external 2".
- Simultaneous connection to the drain: internal Ø 50 mm
- Upper connection for evacuation of excess water: Ø 40 mm
- Includes basket for leaf collecting.
- Recommended flow: 5 m³ / h
- It is recommended to install a skimmer for every 25 m² of water surface area.
- Made in Spain

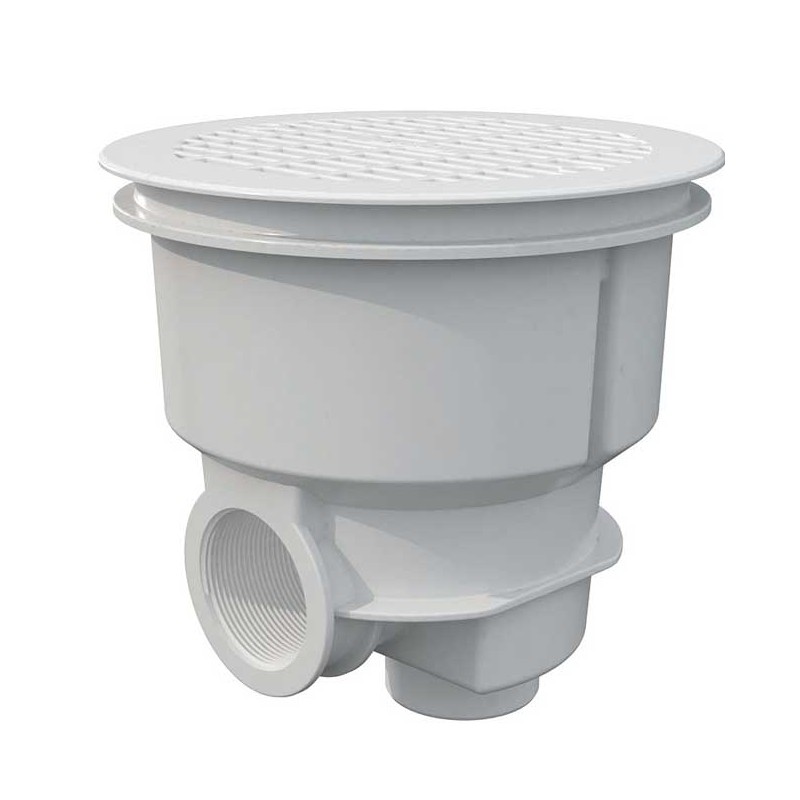

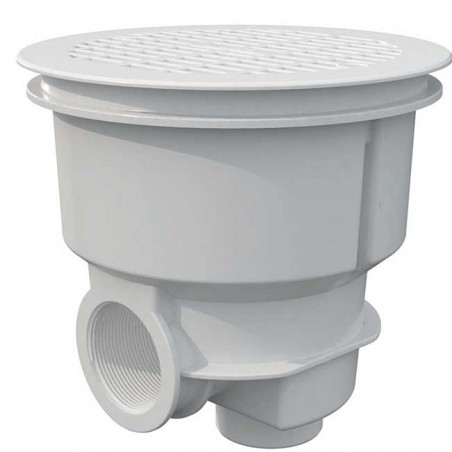

Standard drain with flat grate for concrete pools, white
Standard drain with flat grate for concrete pools. Compliant with European standards EN-13451-1 and EN-13451-3. Supplied with flat grate. Made of ABS with anti-UV treatment, 2 side outlet connections and bottom outlet with semi-punched. Maximum suction flow rate: 15 m³/h
Product Features:
- Compliant with European standards EN-13451-1 and EN-13451-3
- Flat grid included
- Made of ABS with anti-UV treatment
- Maximum suction flow rate: 15 m³/h
Frequently Asked Questions:
What standards does the Norm Drain comply with?
The Norm Drain complies with European standards EN-13451-1 and EN-13451-3.
What is the maximum suction flow rate of the Sumidero Norm?
The maximum suction flow rate of the Sumidero Norm is 15 m³/h.
Is the flat grate included with the Norm Drain?
Yes, the Norm Drain is supplied with the flat grate included.
What material is the Norm Drain made of?
The Norm Drain is made of ABS with anti-UV treatment.
What type of connections does the Norm Drain have?
The Norm Drain has 2 side outlet connections and a bottom outlet with semi-knockout.
FL56378
320 Items
Data sheet
