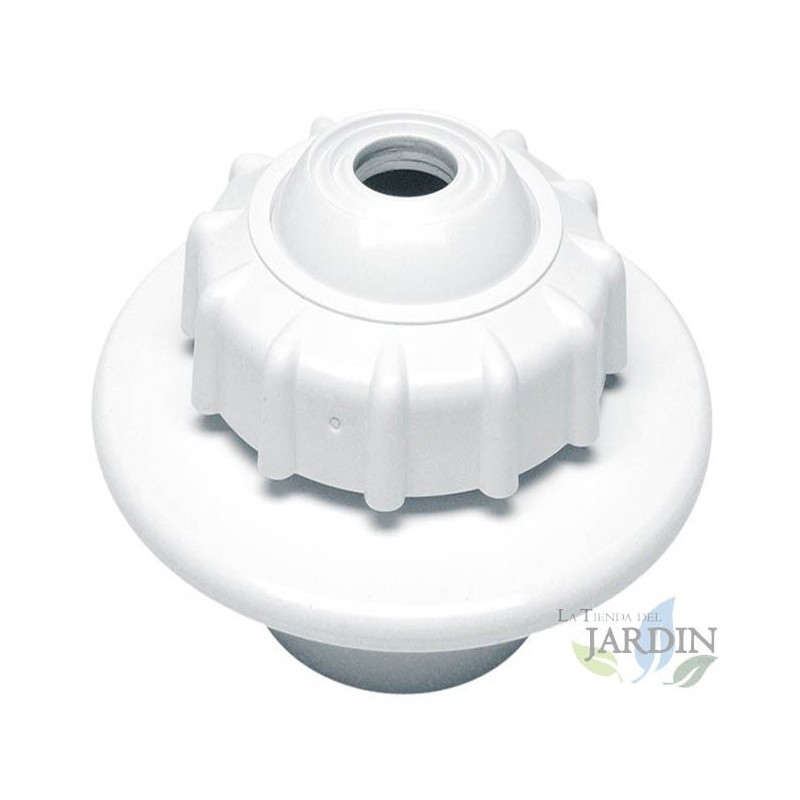

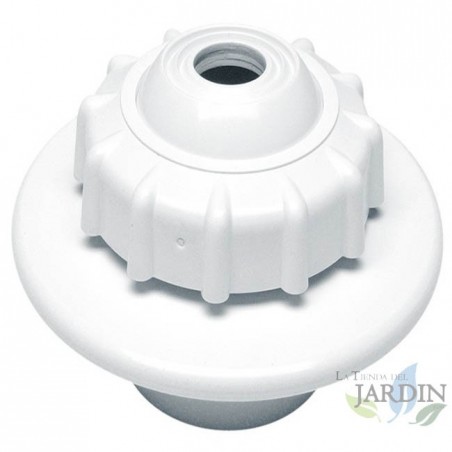

Swimming pool discharge nozzle for gluing, 88x24

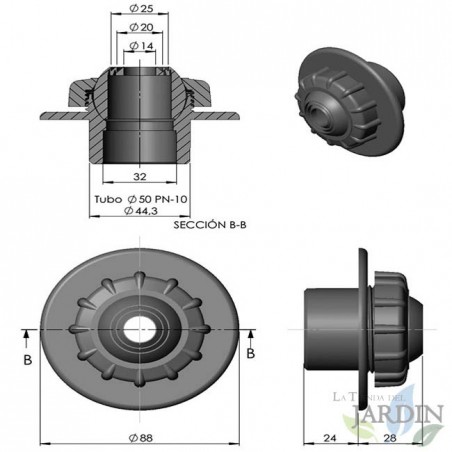

Multiflow 88x24 inlet nozzle for concrete pools. To be glued to the inside of a Ø 50 mm PN 10 pipe. Inlet nozzle for concrete pools made of ABS for maximum resistance. Multiflow System consists of the nozzle ball being supplied pre-marked with a series of diameters (14-20 and 25). Using a punch, one of the diameters can be selected at the time of installation. Maximum recommended flow rate for a maximum flow rate of 4 m/s: Ø 14 mm = 2.2 m³/h, Ø 20 mm = 4.5 m³/h, Ø 25 mm = 7 m³/h. Complies with European standards EN 16582-1 and EN 16713-2. Made in Spain

Product Features:

• Multiflow 88x24 discharge nozzle for concrete pools.


• For gluing inside Ø 50 mm PN 10 pipe.


• Made of ABS for maximum resistance.


• Complies with European standards EN 16582-1 and EN 16713-2.

Frequently Asked Questions:

How do you select the nozzle diameter?
Using a punch, one of the diameters can be selected at the time of installation.

What is the maximum recommended flow rate?
The maximum recommended flow rate is 7 m³/h for a diameter of Ø 25 mm.

Where is this product manufactured?
This product is manufactured in Spain.

What material is used in the manufacture of the mouthpiece?
The mouthpiece is made of ABS for maximum strength.

Does this product comply with European standards?
Yes, it complies with European standards EN 16582-1 and EN 16713-2.
