Multiflow delivery nozzle with 2" external thread and 1½" internal thread.
€19.83
Impuestos incluidos
- 15 liter capacity skimmer with standard mouth and circular pressure cap for concrete pools.
- With anti-UV treatment in the parts that are not buried.
- Made of ABS, with gate float and clapper for flow regulation.
- Connections:
- Lower suction connection: internal thread 1½ ", external 2".
- Simultaneous connection to the drain: internal Ø 50 mm
- Upper connection for evacuation of excess water: Ø 40 mm
- Includes basket for leaf collecting.
- Recommended flow: 5 m³ / h
- It is recommended to install a skimmer for every 25 m² of water surface area.
- Made in Spain

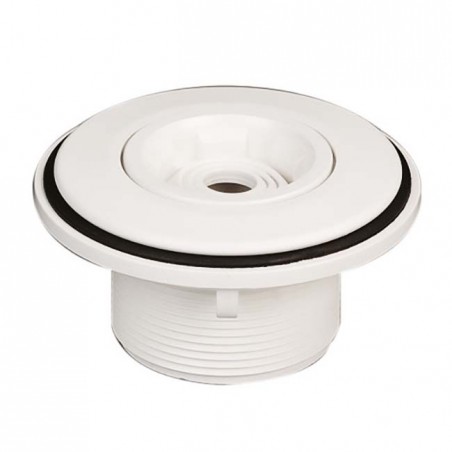

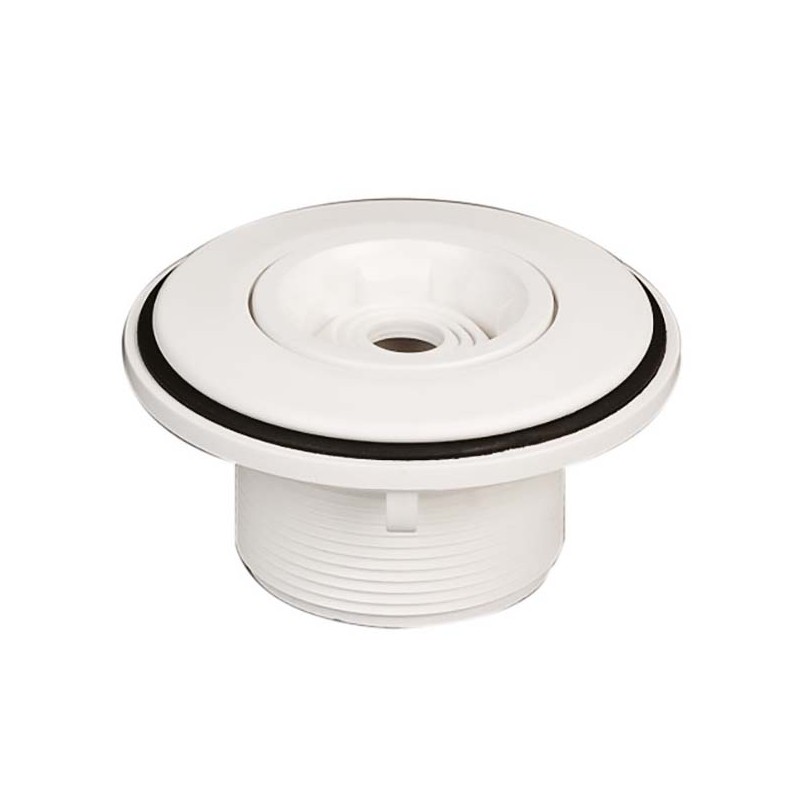

Multiflow discharge nozzle

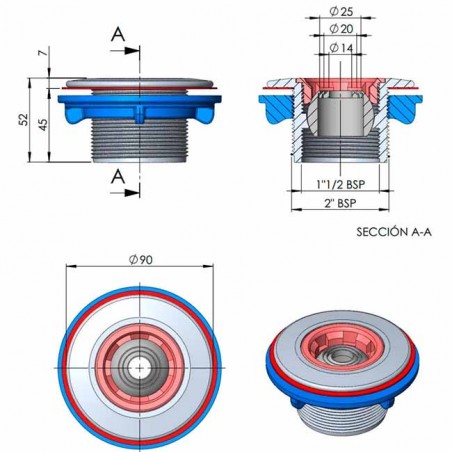

Multiflow discharge nozzle with 2 external thread and 1½ internal thread.
Product Features:
- Made of white ABS, with gaskets.
- The holes in the grating do not exceed 8 mm according to EN 13451-1.
- Multiflow System. The nozzle ball is supplied pre-marked with a series of diameters (14-20 and 25).
- Maximum recommended flow rate for a maximum flow rate of 4 m/s, according to EN 13451-1:
Frequently Asked Questions:
What is the nozzle made of?
The nozzle is made of white ABS, ensuring strength and durability.
What maximum flow diameters can be obtained with this nozzle?
Maximum flow rates of 2.2 m³/h, 4.5 m³/h and 7 m³/h can be obtained with the diameters of 14 mm, 20 mm and 25 mm respectively.
What is the Multiflow System?
The Multiflow System allows the nozzle diameter to be selected at the time of installation, offering versatility in flow rate.
What is the maximum recommended speed for water flow?
A maximum speed of 4 m/s is recommended according to EN 13451-1 to ensure optimal performance.
What regulations does this nozzle comply with?
The nozzle complies with EN 13451-1, ensuring quality and safety standards.
FL06481
319 Items
Data sheet
- Color
- Blanco
Specific References
