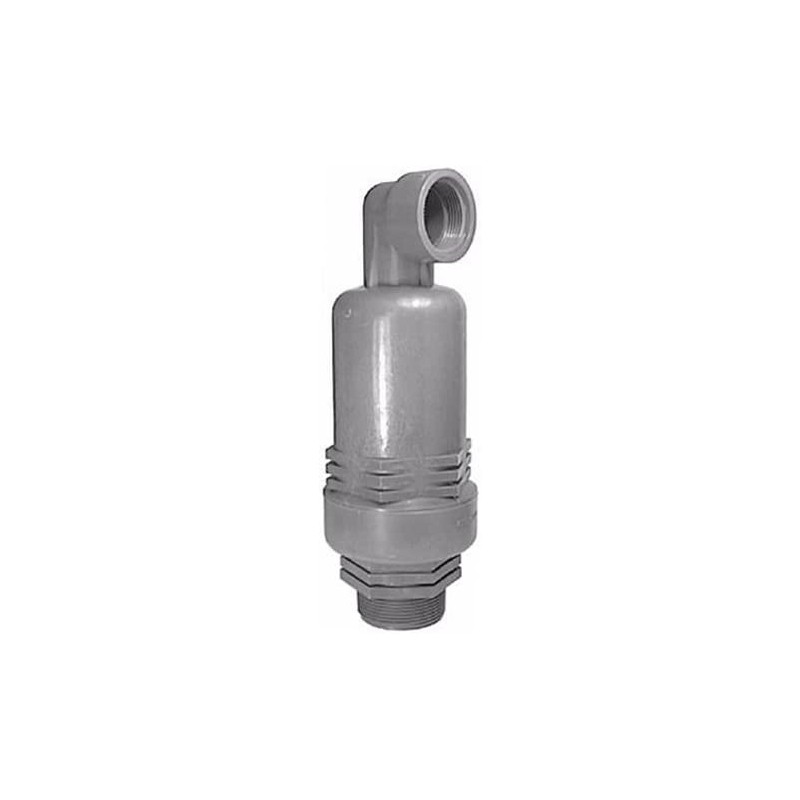

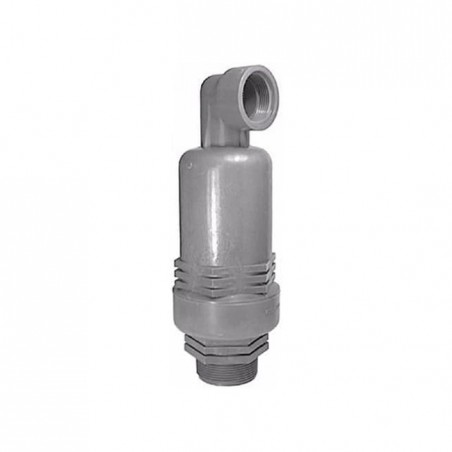

Trifunctional kinetic and automatic PVC suction cup 1. Maximum working pressure 16 bar.

Triple-acting suction valve is designed to extract air from pipes, large filters, tanks and, in general, from any element that must operate free of the presence of air. The suction valves are located at the outlet of pipes whose slope varies in relation to the hydraulic gradient, at points where the pipe rises above ground level, in large branches of uniform slope, at the entrance of measuring instruments, at the outlet of reducing valves, in diameter reductions, pumps, filtering systems and on each side of crossings under roads. For the correct operation of the valve it must be placed in a vertical position. Its exclusive system of double independent closure, one for the kinetic function and another for the automatic function, and the low density of its float make it hermetic during the pressure application or emptying of the system, however slow these operations may be. A new internal design makes the float resist the air current at speeds that exceed the speed of sound in the outlet orifice. The closure only occurs by the action of water. Includes internal grid in the elbow to prevent foreign objects from entering the valve. 1 male thread.

Product Features:

• The triple effect suction cup is designed to extract air from pipes
• Its exclusive independent double closure system
• Resists air currents at speeds exceeding that of sound
• Includes internal grid in the elbow to prevent the entry of foreign objects

Frequently Asked Questions:

What is the triple-effect suction cup used for?
It is used to extract air from pipes, filters and tanks.

What are the characteristics of the suction cup locking system?
The locking system is double and independent, one for the kinetic function and another for the automatic function.

How is the airtightness of the suction cup ensured during pressure application or emptying of the system?
The low density of the float and the independent closing system ensure airtightness during these operations.

What does the Triple Effect Suction Cup include to prevent the entry of foreign objects?
It includes an internal grid in the elbow.

How do you correctly position the Triple Effect Suction Cup?
It must be placed in a vertical position for it to work correctly.
