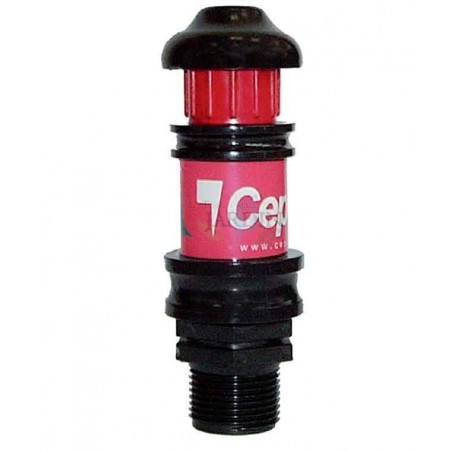

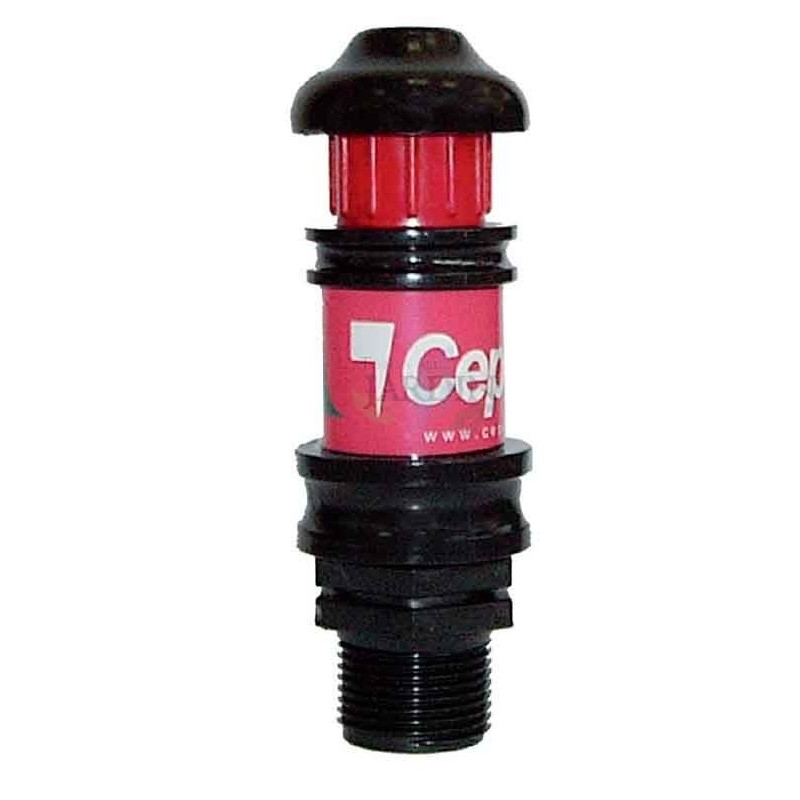

Suction cup 1 male double effect PN10

Double-acting suction cup with 1" connection (male thread). Protects the installation from problems caused by air build-up and also allows air to enter to avoid problems caused by vacuum formation. Made of plastic material with high resistance to pressure and chemical agents used in irrigation water. Suction cups or air valves are essential elements for the protection of irrigation installations.

Product Features:

• They prevent the accumulation of air masses inside pressurized pipes.
• They act as a lung, sucking in air when the pipes are emptied, preventing crushing.
• Suction cups should always be placed in a vertical position.
• It is recommended to install a manual valve before each suction cup in order to be able to remove it without having to stop the installation.

Frequently Asked Questions:

What are suction cups used for in irrigation installations?
Suction cups are used to prevent the accumulation of air in the pipes and protect the installation from possible damage.

Is it necessary to place the suction cups in a vertical position?
Yes, for proper operation it is essential that the suction cups are placed in a vertical position.

What is the nominal pressure of this suction cup?
The nominal pressure of this suction cup is 600 KPa (PN 6).

What is the weight of the suction cup?
The weight of the suction cup is 0.136 kg.

In what applications can this suction cup be used?
This suction cup is ideal for agricultural irrigation installations, water treatment, pumping, among others.
