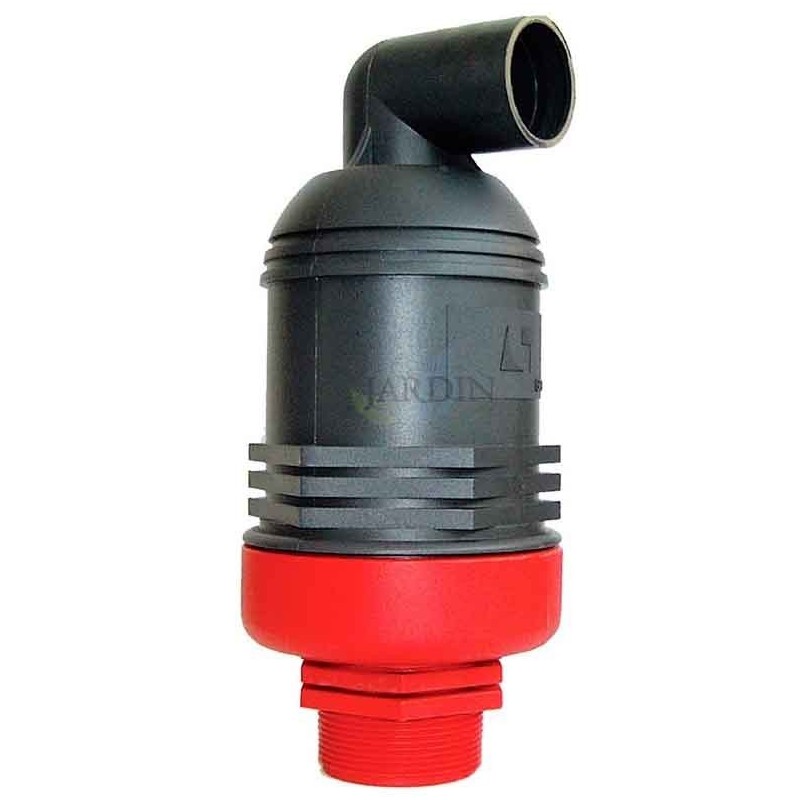

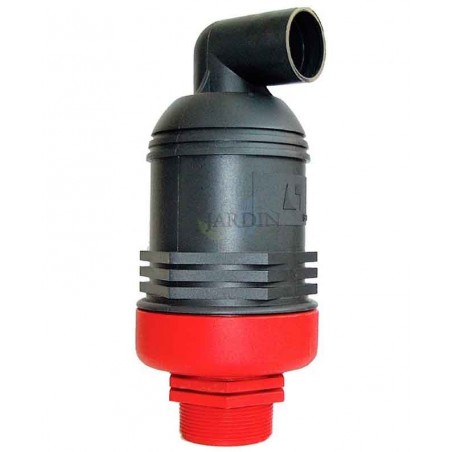

Double-acting suction cup 2 male double-acting PN16

The double-acting suction cup with 2-way connection (male thread) is an essential element for the protection of irrigation installations. Made of highly resistant plastic material, this suction cup has a high air extraction capacity, up to 150 m³/h, without premature closure. It protects the installation from problems caused by the accumulation of air and allows its entry to avoid problems caused by the formation of a vacuum.

Product Features:

• Double-acting suction cup with 2-way connection (male thread)

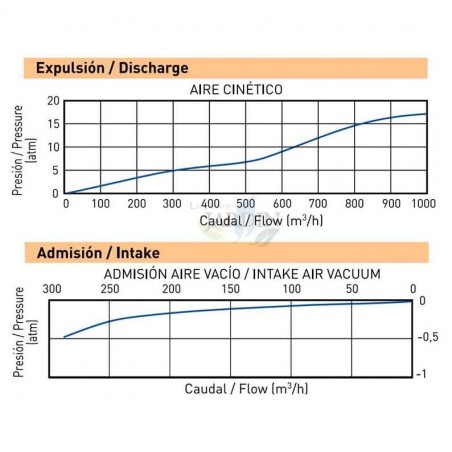

• High air extraction capacity: up to 150 m³/h without premature closure
• Protects the installation from problems caused by air accumulation and also allows its entry to avoid problems caused by vacuum formation.
• Made of plastic material with high resistance to pressure and chemical agents used in irrigation water.

Frequently Asked Questions:

Why is it important to install a double-acting suction cup?
The double-acting suction cup is crucial to avoid air accumulation problems in irrigation installations and protect them from possible damage.

In what situations is it recommended to use this suction cup?
This suction cup is ideal for agricultural irrigation, underground irrigation, water treatment, osmosis, pumping, ozone chambers, drinking water pipes, among others.

What is the nominal pressure of this suction cup?
The nominal pressure is PN 16, which guarantees optimal performance in pressurized water applications.

What is the weight of the double-acting suction cup?
The weight of the suction cup is 0.95 kg, which makes it easy to install and handle in different situations.

Why is it important to place the suction cup in a vertical position?
The vertical position ensures proper operation of the suction cup and prevents possible obstructions to the air flow.
