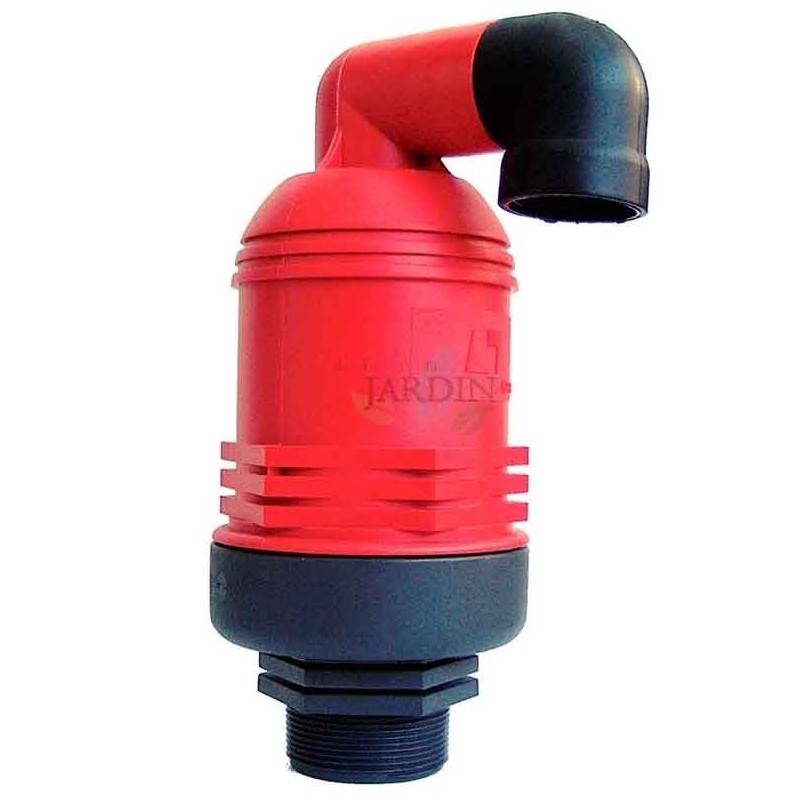

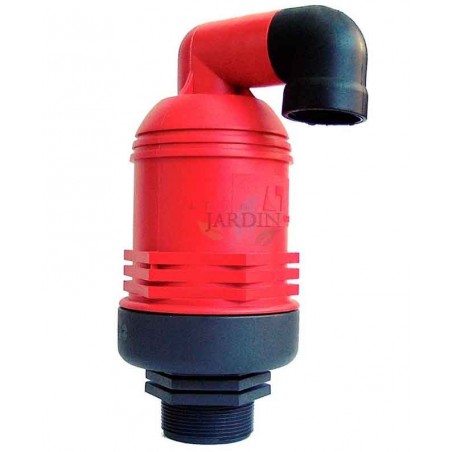

Suction cup 2 male triple effect PN16

This triple-acting suction cup with 2 -way connection (male thread) is an essential element for the protection of irrigation systems. With a high air extraction capacity of up to 720 m³/h, it guarantees efficient operation thanks to the patented Wave System closure system. Made of highly resistant plastic material, it protects the system from problems caused by air accumulation and allows air to enter to avoid problems caused by vacuum formation.

Product Features:

• Triple effect suction cup with 2 connection (male thread).

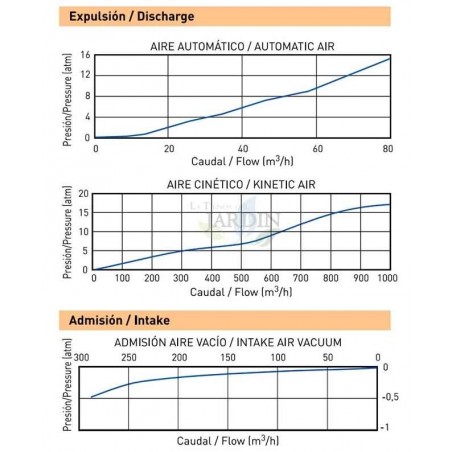

• High air extraction capacity: up to 720 m³/h without premature closure.


• Patented Wave System closure system.


• It protects the installation from problems caused by air accumulation and also allows air to enter to avoid problems caused by vacuum formation.

Frequently Asked Questions:

Why is the triple-acting suction cup important in an irrigation installation?
The triple-acting suction cup is crucial to protect the installation from problems caused by air accumulation and to ensure efficient operation.

What is the air extraction capacity of this suction cup?
The air extraction capacity of this suction cup is up to 720 m³/h without premature closure.

What material is used in the manufacture of this suction cup?
This suction cup is made of plastic material with high resistance to pressure and chemical agents.

Can this suction cup be installed on potable water pipes?
Yes, this suction cup is suitable for pressurized water installations, including potable water pipes.

What is the nominal pressure of this suction cup?
The nominal pressure of this suction cup is PN 16.
