Suction cup 1 male triple effect PN16

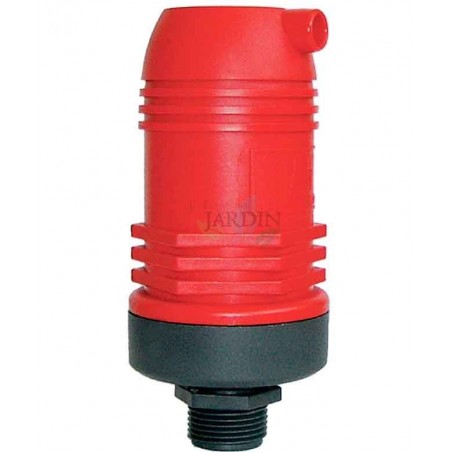

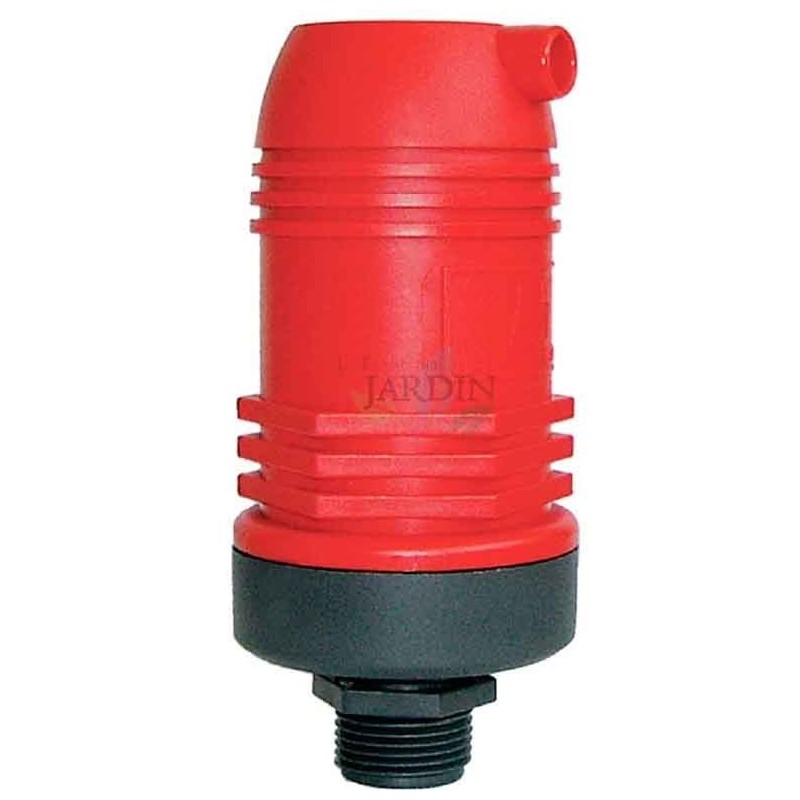

The triple-acting suction cup with 1" connection (male thread) protects the installation from problems caused by air accumulation and also allows air to enter to avoid problems caused by vacuum formation. The patented Wave System closure system guarantees effective operation of the suction cup, made of plastic material with high resistance to pressure and chemical agents used in irrigation water. Silicone seal and sealing tube.

Product Features:

• Triple-effect suction cup with 1" connection (male thread)
• Protection of the installation
• Patented Wave System closure system
• Made of high-strength plastic material

Frequently Asked Questions:

Why is it important to place the suction cups in a vertical position?
Suction cups should always be placed in a vertical position.

What recommendations should be followed when installing a suction cup?
It is recommended to install a manual valve before each suction cup in order to be able to remove it without having to stop the installation.

What applications does the PN16 triple-acting male suction cup have?
An essential element in all pressurized water pipes, with applications in agricultural and underground irrigation installations, industrial installations, drinking water pipes, among others.

What are the technical data of the suction cup?
Nominal pressure: PN 16, Closing pressure: from 0.2 atm, Connection: 1 male thread, Weight: 0.36 kg
