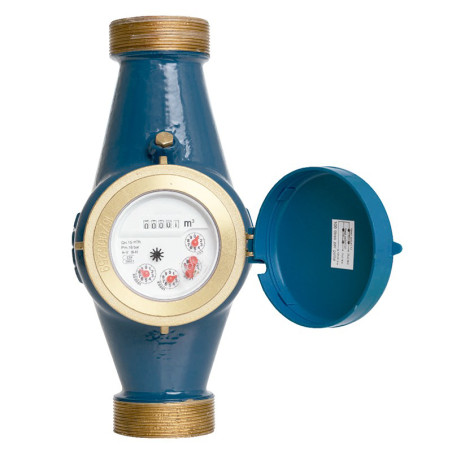

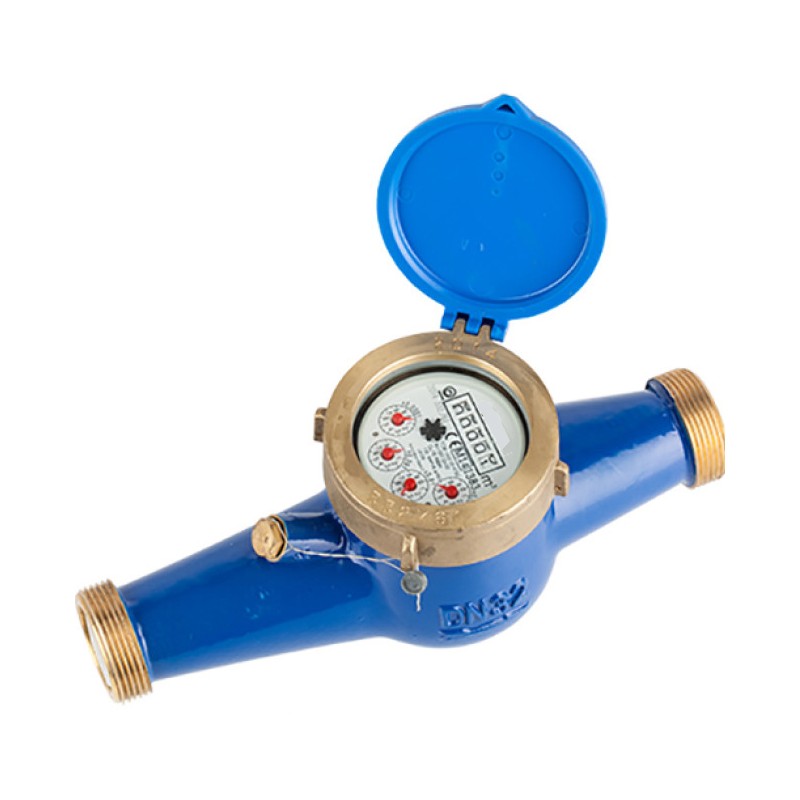

Multi-Jet Potable Water Meter 15mm | 3/4" Male Inlet and Outlet Threads | Approved Irrigation Meter

Multi-jet turbine and dry dial meter with metal body coated with epoxy paint.

Turbine and clockwork made of thermoplastic material.

Model for cold water up to 30°C.

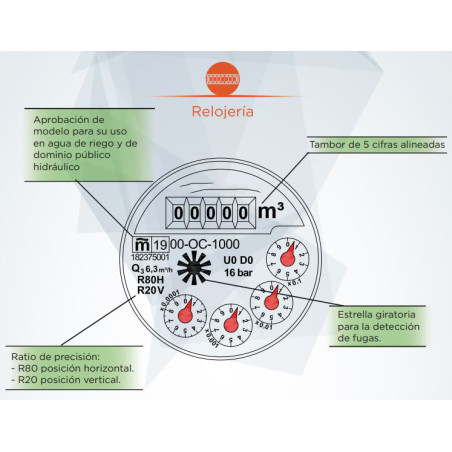

Direct reading on 5-digit roller counter indicating m³.

Vacuum watchmaking assembly to prevent water condensation.

Magnetic transmission protected against external magnetic fields (anti-fraud).

High mechanical and wear resistance. No need for straight sections at the meter's inlet or outlet.

Approval for irrigation. Accuracy ratio R80 in horizontal position and R20 in vertical position.

Pre-equipped for pulse emitter with standard value 1/100 (1 pulse = 100 liters). Requires transmitter cable available optionally (see accessories).

Product features:

• Multi-jet turbine counter and dry sphere.
• Metal body coated with epoxy paint.
• High mechanical and wear resistance.
• Approval for irrigation.

Frequently Asked Questions:

What is a multi-jet meter used for?
A multi-jet meter is used to accurately measure potable water consumption in various applications.

What does the R80 accuracy ratio mean?
The R80 accuracy ratio indicates that the counter has high accuracy in its reading when it is in a horizontal position.

How is the meter protected against external magnetic fields?
The meter features a protected magnetic transmission that prevents interference from external magnetic fields, ensuring its correct operation.

What body connection models are available?
The available models range from ½ - DN15 to 2 - DN50, with different sizes of threaded connections.

Can this counter be used in irrigation applications?
Yes, the meter is approved for irrigation and provides an accurate reading under different usage conditions.
