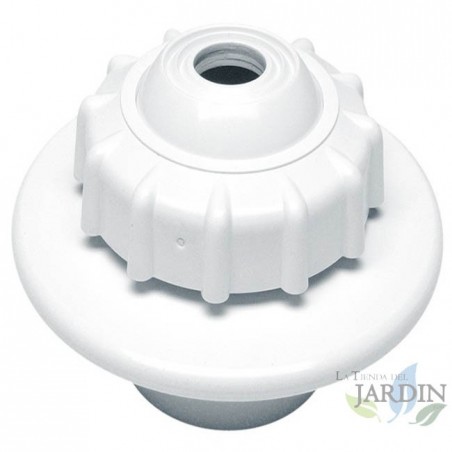

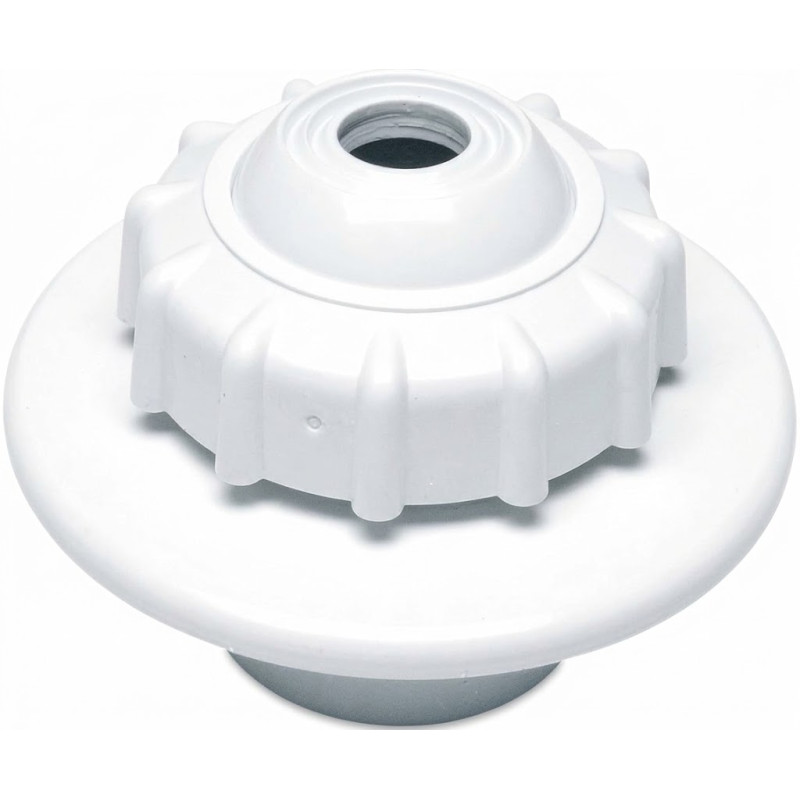

Multiflow Concrete Pool Inlet Nozzle for Glue-on Ø50 mm PN10 | White | Water Return Nozzle for Swimming Pools

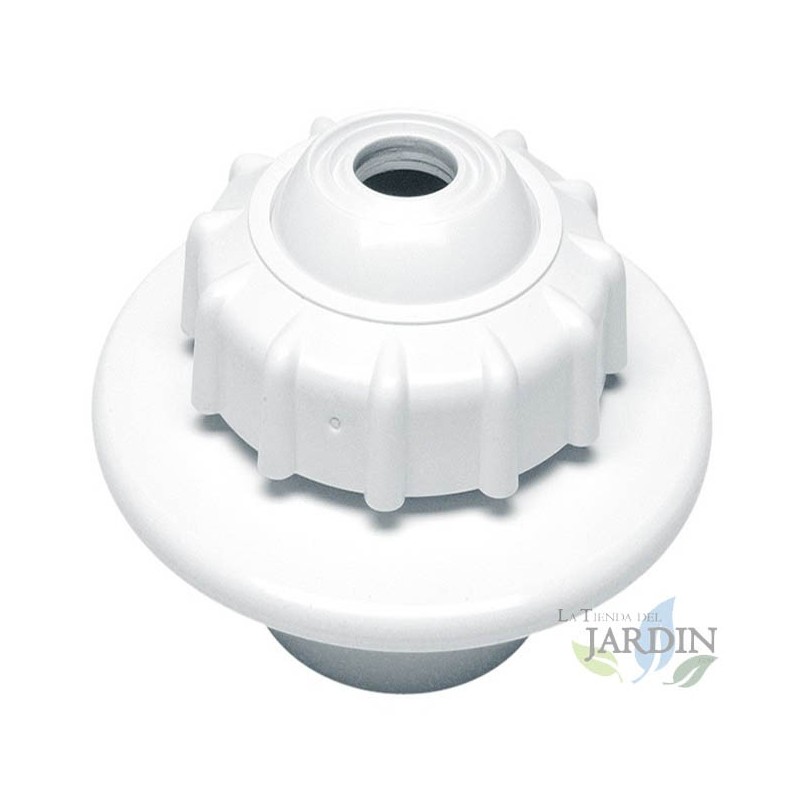

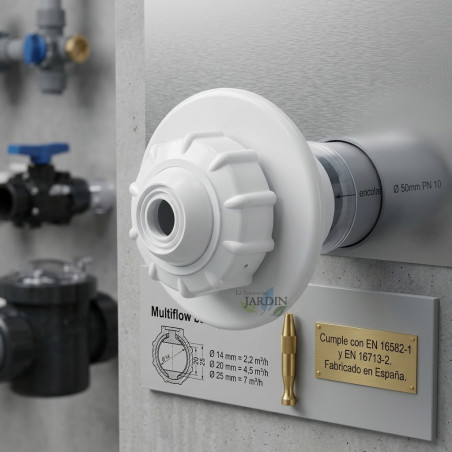

Multiflow 88x24 inlet nozzle for concrete swimming pools. For gluing to the inside of a 50 mm diameter PN 10 pipe. This inlet nozzle for concrete swimming pools is made of ABS for maximum durability. The Multiflow System consists of a nozzle ball that is pre-marked with a series of diameters (14, 20, and 25 mm). A punch allows for easy selection of the correct diameter during installation. Maximum recommended flow rate for a maximum flow velocity of 4 m/s: 14 mm diameter = 2.2 m³/h, 20 mm diameter = 4.5 m³/h, 25 mm diameter = 7 m³/h. Complies with European standards EN 16582-1 and EN 16713-2. Made in Spain.

Product features:

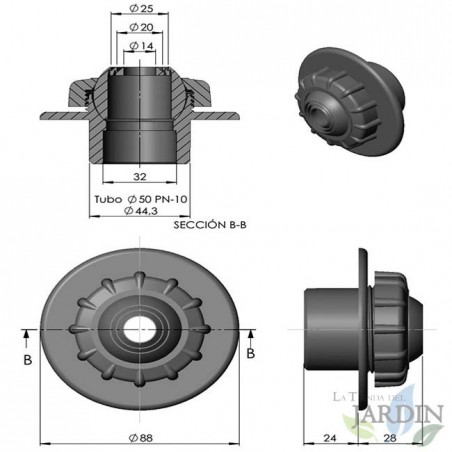

• Multiflow 88x24 inlet nozzle for concrete pools.

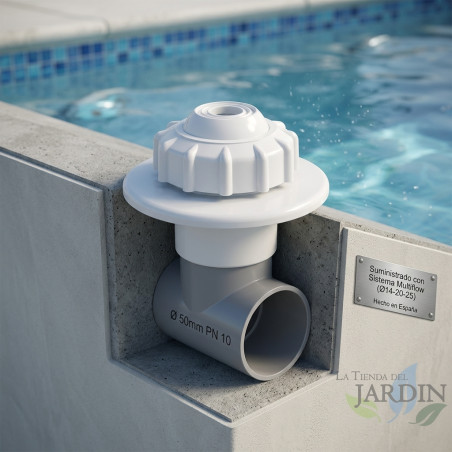

• To glue to the inside of Ø 50 mm PN 10 tube.

• Made of ABS for maximum strength.

• Complies with European standards EN 16582-1 and EN 16713-2.

Frequently Asked Questions:

How is the nozzle diameter selected?
With the help of a punch, one of the diameters can be selected at the time of installation.

What is the maximum recommended flow rate?
The maximum recommended flow rate is 7 m³/h for a diameter of Ø 25 mm.

Where is this product manufactured?
This product is manufactured in Spain.

What material is used in the manufacture of the nozzle?
The nozzle is made of ABS for maximum strength.

Does this product comply with European regulations?
Yes, it complies with European standards EN 16582-1 and EN 16713-2.
