Pool Overflow Suction Nozzle | Liner Compatible | High Resistance | Pool Accessory

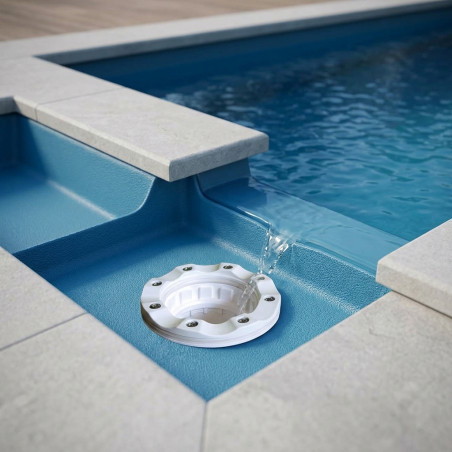

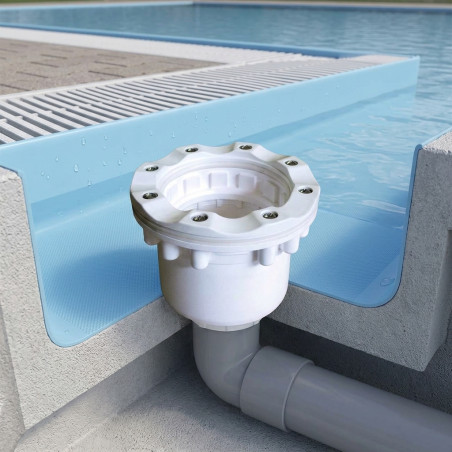

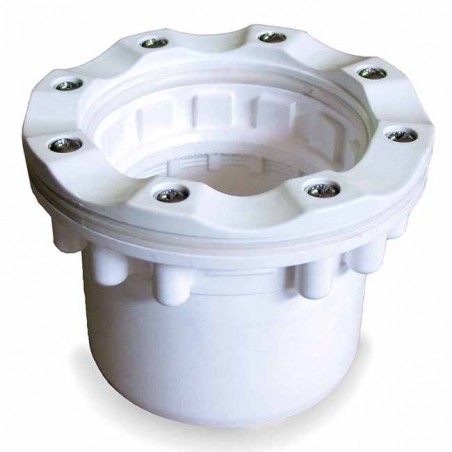

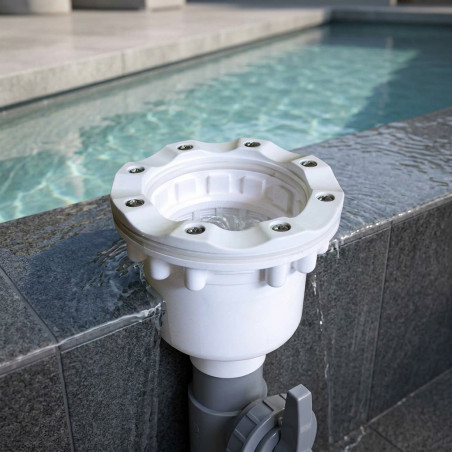

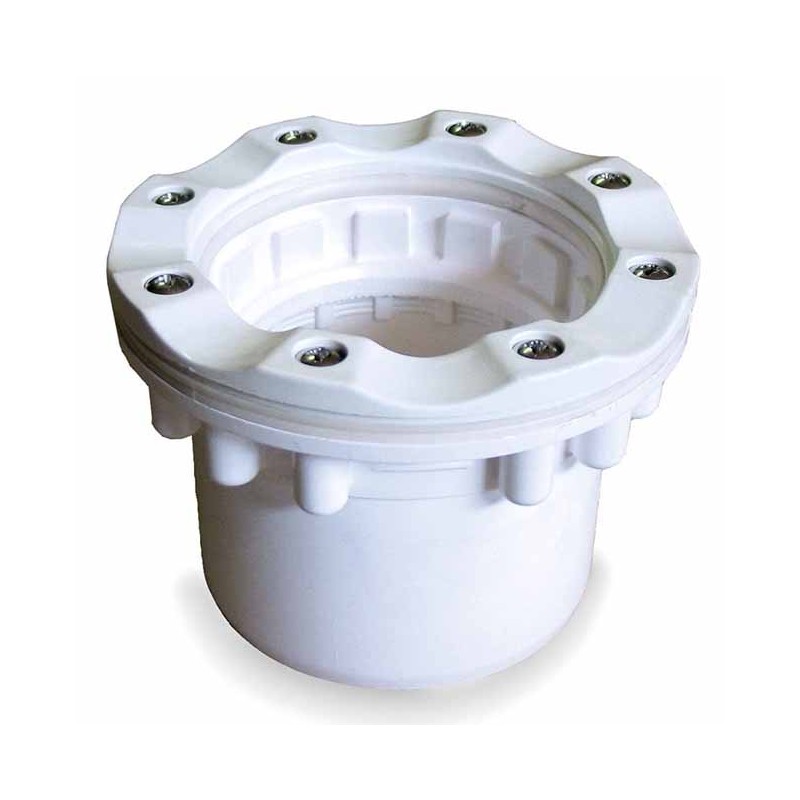

Suction nozzle for overflow channel with liner. This nozzle features a double seal and, thanks to its flange design, can draw all the water from the overflow channel. It has a PVC body, a PA flange, and AISI 304 stainless steel screws. Maximum flow rate is 5 m³/h at a maximum flow velocity of 0.5 m/s. Connection for Ø 75 or Ø 90 pipe.

Product features:

• Suction nozzle for overflow channel.
• Double seal for better performance.
• High-quality materials: PVC, PA and AISI 304 stainless steel.
• Compatible with Ø 75 and Ø 90 tubes.

Frequently Asked Questions:

How does the suction nozzle for an overflow channel with a liner work?
The nozzle has a double seal that allows all the water from the overflow channel to be drawn in efficiently.

What is the maximum flow rate that this nozzle can handle?
The maximum flow rate is 5 m³/h for a maximum flow velocity of 0.5 m/s.

What materials are used in the manufacture of the nozzle?
The nozzle body is made of PVC, the flange of PA, and the screws are made of AISI 304 stainless steel.

Is this nozzle compatible with tubes of different diameters?
Yes, the nozzle is compatible with Ø 75 and Ø 90 tubes.

What is the function of the flange on the suction nozzle?
The flange allows the nozzle to be attached to the overflow channel safely and efficiently.
