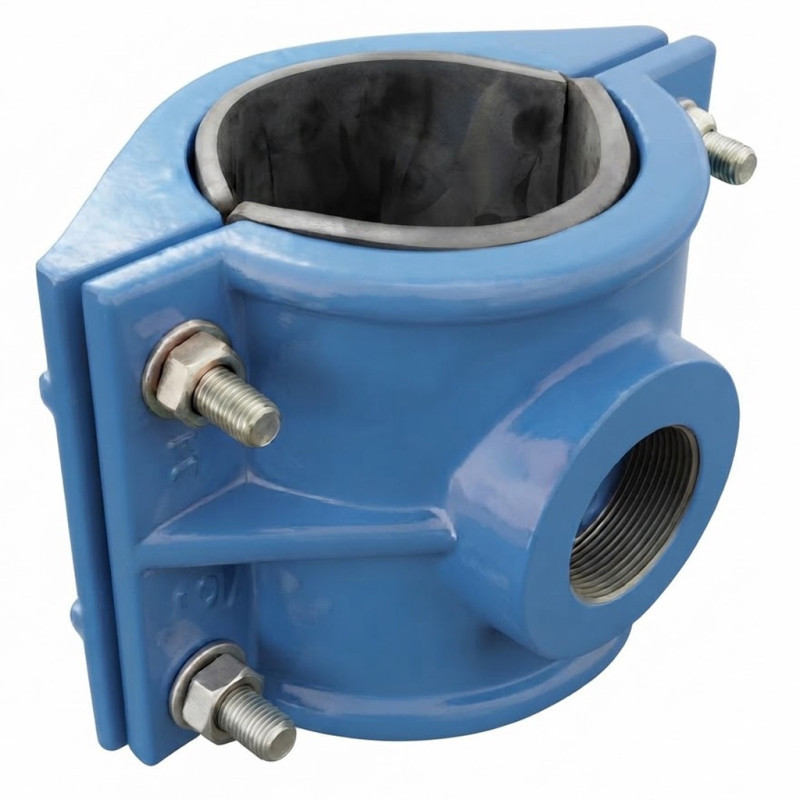

160 mm x 1" Ductile Iron Collar: The Ultimate Solution for Branches and Repairs

The 160 mm x 1" load tap collar, reference BA24493, is a high-performance hydraulic fitting specifically designed to ensure watertight, secure, and durable connections in potable water distribution networks, agricultural irrigation systems, and industrial installations. Designed with a robust ductile iron body and protected with an epoxy coating, this component offers superior resistance to corrosion, impacts, and high working pressures, making it the preferred choice for plumbing and pipefitting professionals.

This repair and branch clamp system is compatible with both polyethylene (PE) and polyvinyl chloride (PVC) pipes. Its four-bolt design ensures even distribution of clamping force around the entire pipe diameter, preventing deformation and leaks even under demanding conditions. Installation is quick and efficient, allowing for new connections or repairs to damaged sections without interrupting the main water supply for extended periods.

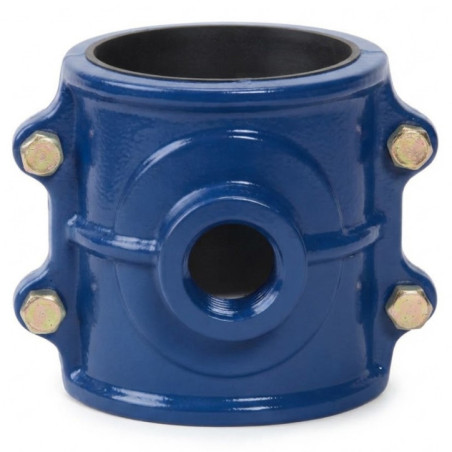

Technical Characteristics of the BA24493 Ductile Iron Collar

• Nominal diameter: 160 mm for the main tube.


• Threaded outlet: 1 inch (1") female for connecting accessories or valves.


• Manufacturing material: High mechanical strength ductile iron.


• Fixing system: 4 high-strength screws for even and secure tightening.


• Corrosion protection: Exterior and interior coating of epoxy paint applied by thermofusion.


• Pipe compatibility: Suitable for polyethylene (LDPE, HDPE) and PVC pipes.


• Main applications: Drinking water supply networks, drip and sprinkler irrigation systems, and industrial pipelines.

Frequently Asked Questions about the 160 mm x 1" Collar

Is it necessary to shut off the water supply to install this collar?

Although installation under pressure can be carried out using specialized pressure drilling tools, it is always recommended, where possible, to reduce the pressure or make a temporary cut to ensure safe handling and a perfect seal of the joint.

What type of pipes is this clamp compatible with?

This model is designed to fit perfectly with high and low density polyethylene (PE) pipes and PVC pipes, provided the outside diameter of the pipe matches the specified 160 mm.

What maintenance does epoxy coating require?

The epoxy coating provides excellent durability against oxidation and chemical agents present in the soil or water, so it does not require specific maintenance once installed and buried correctly.

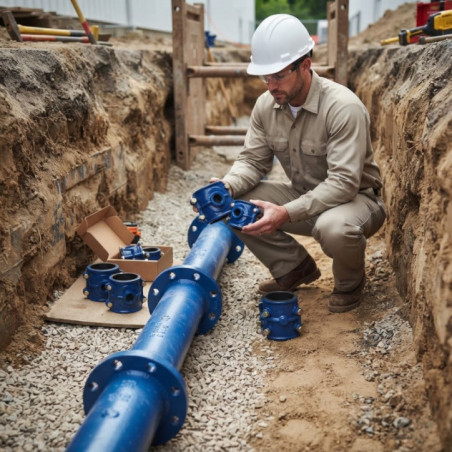

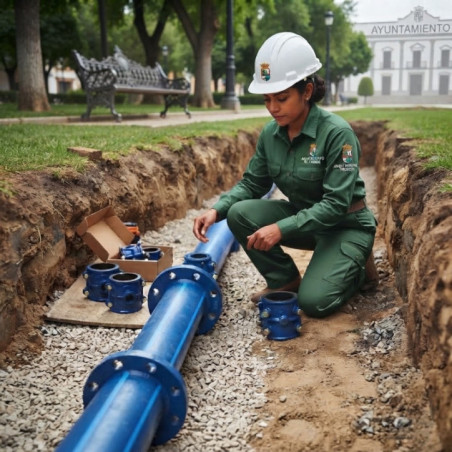

Can it be used in buried installations?

Yes, thanks to the quality of the ductile iron and the epoxy corrosion protection, this collar is perfectly suitable for underground installation in water distribution networks.
