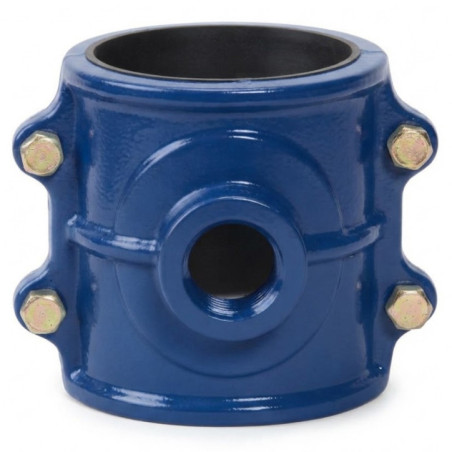

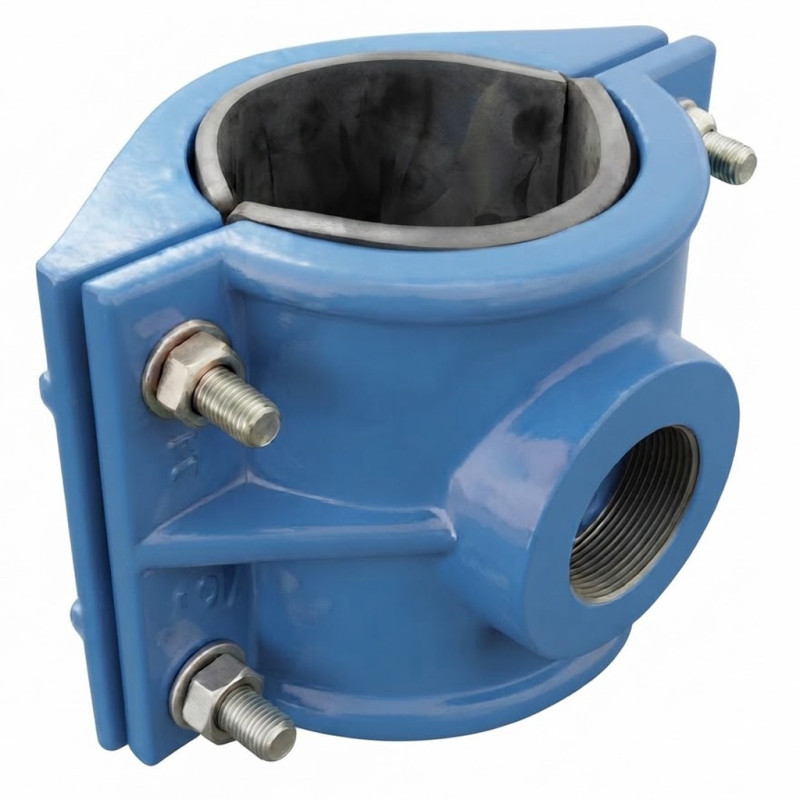

The 63 mm x 1" ductile iron collar is the ultimate professional solution for making connections, branch lines, and repairs in drinking water, sanitation, and agricultural irrigation distribution networks. Designed specifically for polyethylene (PE) and PVC pipes, this fitting guarantees a firm, watertight, and durable connection, whether underground or above ground.

Manufactured with premium materials, this pressure tap collar features an epoxy coating that prevents corrosion and premature wear, while withstanding high working pressures. Its 4-bolt fastening system distributes pressure evenly around the entire pipe, preventing deformation and ensuring a completely secure, leak-free hydraulic connection.

Main Features

• Measurement: Nominal diameter of 63 mm with 1" female threaded outlet


• Material: High mechanical strength ductile iron.


• Corrosion protection: Electrostatically applied epoxy paint coating.

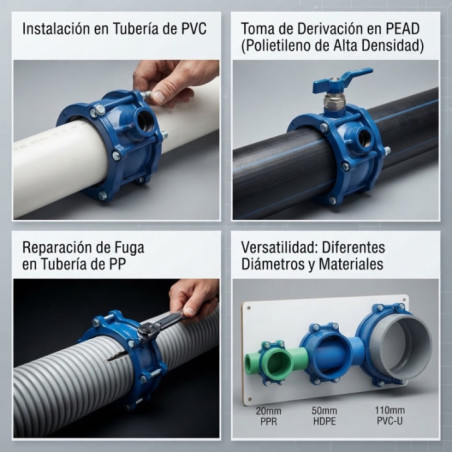

• Compatibility: Suitable for high and low density polyethylene (HDPE / LDPE) and PVC pipes.


• Tightening system: 4 high-strength bolts for a homogeneous perimeter seal.


• Manufacturer reference: BA23330.

Frequently Asked Questions

What type of pipes is this collar compatible with?

This model is designed to fit perfectly with polyethylene (PE) and PVC pipes used in plumbing installations, irrigation networks and water supply systems.

What type of threaded outlet does it have?

The central outlet has a 1-inch female thread, ideal for threading standard male fittings, valves, or adapters of the same diameter.

Is it suitable for buried installations?

Yes, thanks to its ductile iron body and epoxy paint coating, it offers excellent resistance to corrosion and soil moisture, guaranteeing a long service life underground.

How is the assembly done to prevent leaks?

The surface of the pipe must be cleaned, the rubber gasket placed correctly in its housing on the pipe, and the 4 cross screws tightened progressively to ensure that the pressure is distributed evenly before piercing the pipe.
