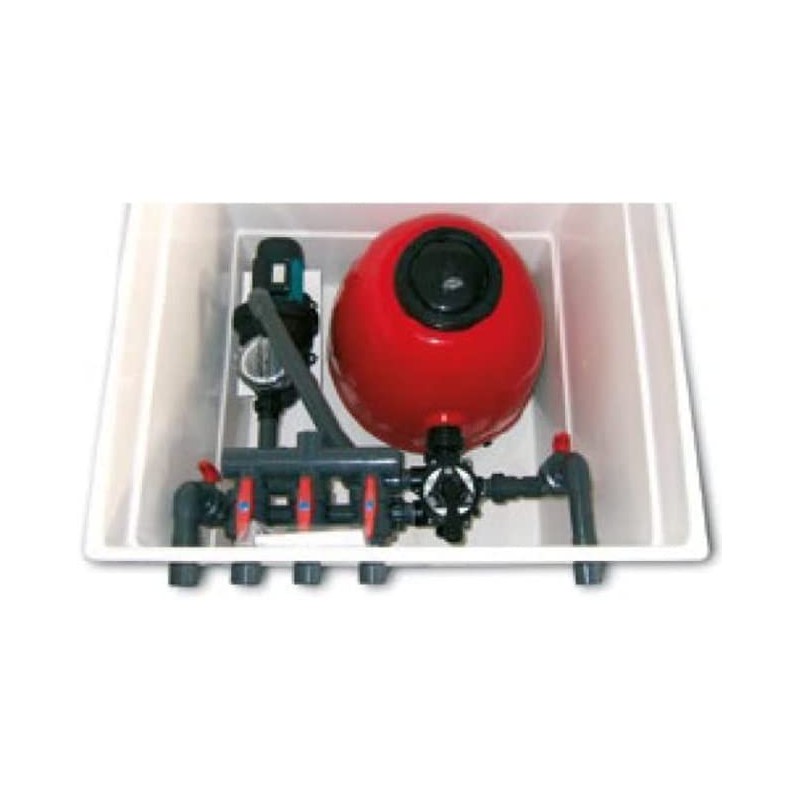

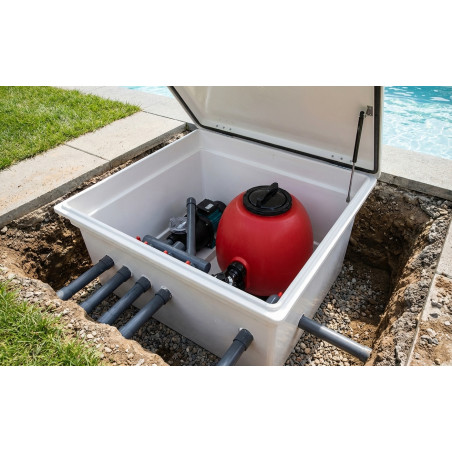

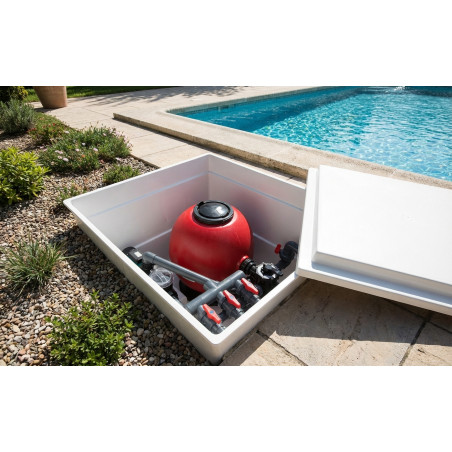

Underground Filter Housing STAR PLUS 500 | Side Valve and IRI 1000 M Pump Included | Complete Filtration System

The in-ground filter housing version with STAR PLUS - 500 filter, side valve, and IRI 1000 M pump is a high-quality option for your pool. It includes a filter with a 6-position selector valve, a single-phase pump with pre-filter, a manifold, accessories, and Ø 50 PVC valves—everything needed for an efficient filtration system. The polyester and fiberglass shell ensures strength and durability, while the 1 HP pump can move 11 m³/ha at a pressure of 10 ma

Product features:

• They include a filter with a 6-position selector valve, a single-phase pump with a pre-filter, a manifold, accessories and PVC valves Ø 50, but do not include an electrical panel.
• Shell: Polyester and fiberglass shell measuring 970 x 970 mm. Reinforced by a perimeter metal band integrated within the structure. Lid reinforced by panels integrated within the structure and with shock absorbers that support and facilitate easy opening.
• Filter: STAR PLUS laminate, made of laminated polyester plus fiberglass, 500 mm in diameter, with a 6-position selector valve and 1 1/2" connections
• Pump: Model AQUARAMA IRI 1000M, power 1 hp capable of moving 11 m3/h at a pressure of 10 ma
• Accessory: 50 mm diameter PVC pipe with 5 manual ball valves to control the different purification options

Frequently Asked Questions:

What are the dimensions of the polyester and fiberglass helmet?
The helmet has dimensions of 970 x 970 mm.

What is the power of the included pump?
The pump has a power of 1 hp.

What does the STAR PLUS filter include?
The STAR PLUS filter includes a 6-position selector valve and 1 1/2 connections.

How are the debugging options controlled?
The debugging options are controlled with the 5 included manual ball valves.

What pressure can the IRI 1000M pump reach?
The pump can reach a pressure of 10 ma
