Keeping your pool water crystal clear, clean, and ready for swimming all season long is essential for the health and enjoyment of the whole family. The M3000 560mm Sand Filter with Top Valve is the ultimate residential filtration solution. This complete monobloc system combines high power and efficiency with a filtration capacity of up to 12,000 liters per hour , specifically designed to deliver optimal performance in medium and large pools.

The structure of this unit stands out for its robustness and durability. Manufactured with premium injection-molded thermoplastic materials, it easily withstands weathering, solar radiation, and corrosion caused by water treatment chemicals. Its 560 mm diameter tank optimizes the filtration surface area, effectively retaining dirt, suspended particles, dust, and leaves, thus guaranteeing much purer water with reduced chemical consumption.

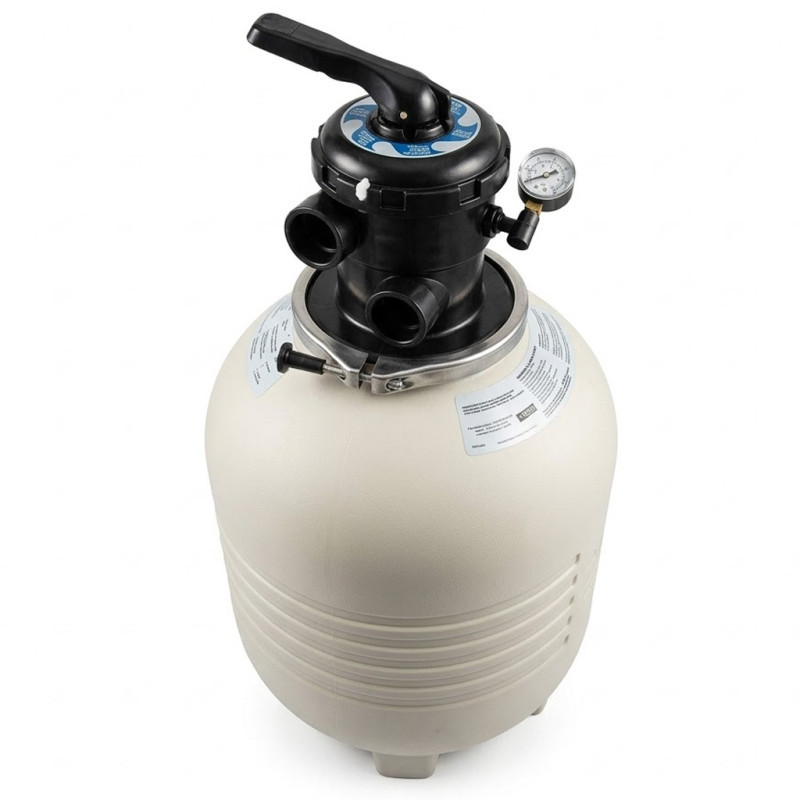

One of the great advantages of this monobloc system is its ease of use and installation. It incorporates a practical multi-way selector valve on top, allowing all necessary operations to be performed with a simple turn of a lever: filtration, backwash, rinse, recirculation, drain, and shut-off. This makes routine maintenance a quick, clean, and hassle-free process, ensuring that the filter media maintains its maximum efficiency for much longer.

Main Features

• Reference model: BAE29575.


• Product type: Monobloc filtration unit with top valve for residential swimming pools.


• Filtration flow rate: 12,000 liters per hour (12 m³/h), ideal for maintaining water in optimal condition.


• Filter diameter: 560 mm, providing a large and efficient filter bed surface.


• Manufacturing material: High-strength reinforced thermoplastic resistant to corrosion, UV rays and pressure.


• Selector valve: Integrated multi-position upper valve for total control of the purification functions.


• Easy installation: Compact design that includes a stable support base for the pump and filter.

Frequently Asked Questions

What size pool is compatible with this 12,000 l/h filter?

This system is primarily recommended for medium and large residential swimming pools. Thanks to its flow rate of 12,000 liters per hour, it can complete the entire water renewal and filtration cycle in pools up to 50 or 60 cubic meters in just a few hours.

What type of filter media does this tank use?

This filter uses standard-sized silica sand (typically 0.4–0.8 mm). It is also compatible with other advanced filter media on the market, such as filter glass, which offers greater durability and fine particle retention capacity.

How often should sand washing be performed?

It is recommended to perform a backwash and rinse of the sand at least once a week during the bathing season, or whenever the integrated pressure gauge indicates that the pressure has risen between 0.5 and 0.8 bar from the initial operating value.

Does this monobloc system include the purification pump?

Yes, being a monobloc system, it comes factory equipped with a base that perfectly integrates the sand filter and the corresponding booster pump, optimizing space and ensuring hydraulic compatibility between both components.
