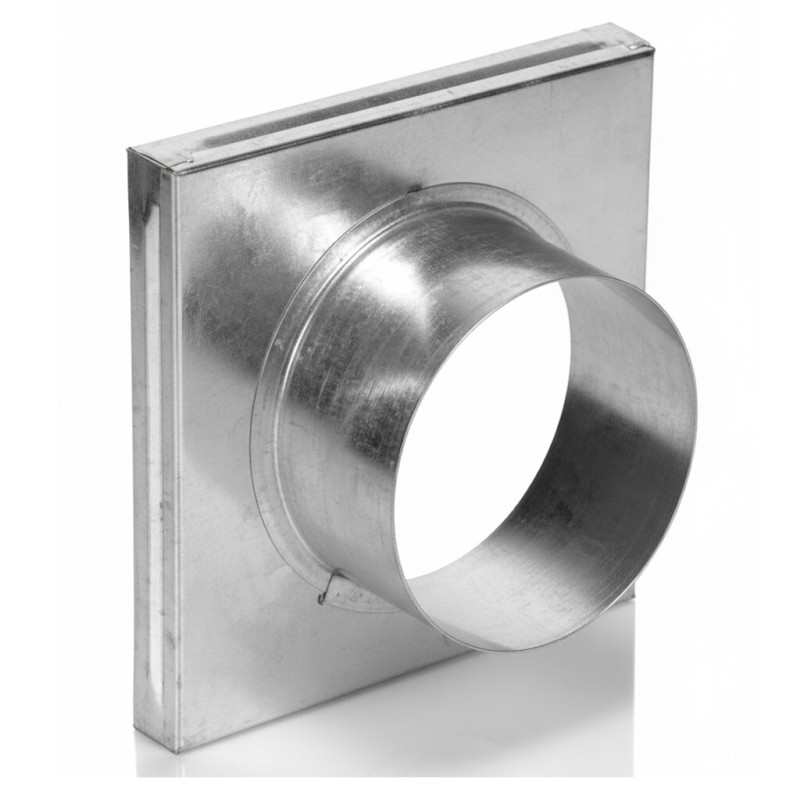

Inlet for Grilles 17x17 cm to 80 mm Pipe: Efficient Connection for Air Conditioning

The 17x17 cm grille inlet with an 80 mm duct outlet (Reference: ALI_EMB 17-80 ) is an essential component in any air distribution system, whether for air conditioning, heating, or mechanical ventilation. This fitting acts as the perfect bridge between the decorative grille installed on the wall or ceiling and the circular duct that carries the airflow.

Designed to optimize the performance of your air conditioning system, this component ensures an aerodynamic transition that reduces pressure loss and minimizes noise generated by turbulence. Its robust construction guarantees a long lifespan and superior resistance to constant temperature changes in ducted systems.

Why choose the ALI_EMB 17-80 mouthpiece?

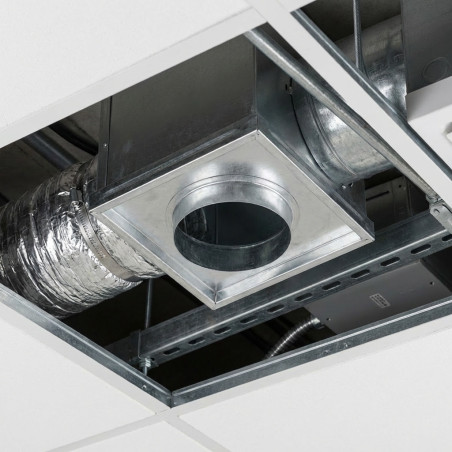

In modern ventilation systems, precision is key. The ALI_EMB 17-80 inlet allows standard 17x17 cm grilles to be adapted to 80 mm diameter flexible or rigid ducts with optimal airtightness. This is essential to prevent air leaks in the suspended ceiling, resulting in direct energy savings and greater thermal comfort in the room.

Technical Specifications

• Product reference: ALI_EMB 17-80

• Mouth dimensions: 170 x 170 mm (compatible with fixed and adjustable grilles of the same size).

• Connection diameter: 80 mm (ideal for flexible tubing or standard rigid conduit).

• Manufacturing material: High thermal and mechanical resistance material, designed to withstand cold and hot air flows.

• Aerodynamic design: Facilitates airflow by reducing resistance and noise levels.

• Easy installation: Its design allows for quick and secure attachment to both the grate and the pipe.

• Applications: Ducted air conditioning systems, bathroom extraction, forced ventilation and heat recovery systems.

Advantages of use in ventilation installations

1. Versatility: It is compatible with both fixed slat grilles and adjustable slat grilles, as long as they meet the 17x17 cm measurement.

1. Flow optimization: By channeling air directly from the tube to the grille, the reach of the airflow in the room is maximized.

1. Professional Finish: Avoid makeshift installations with tape or unsuitable materials, ensuring a high-quality technical finish.

Frequently Asked Questions (FAQ)

1. Is it compatible with any brand of grille?

Yes, provided the grille has nominal dimensions of 17x17 cm. The ALI_EMB 17-80 inlet is manufactured according to universal measurement standards for this type of ventilation accessory.

2. How is the 80 mm tube attached to the mouthpiece?

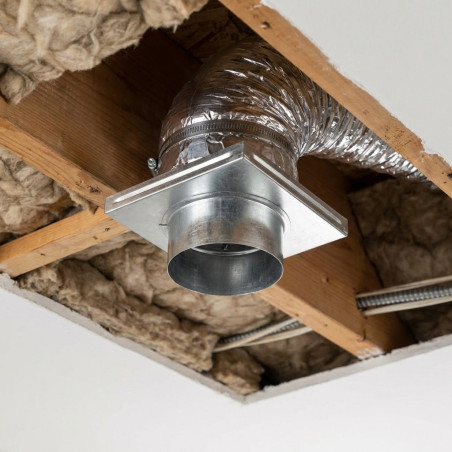

For optimal installation, it is recommended to fit the tube onto the 80 mm circular neck and secure the joint using a metal or nylon clamp, or failing that, aluminum tape to ensure a complete seal.

3. Can it be used for fume extraction in kitchens?

This model is primarily designed for air conditioning and general ventilation systems. If it involves the extraction of high-temperature fumes or grease, you must verify that the material complies with the specific fire safety regulations for your area.

4. What is the depth of the piece?

The piece has an optimized depth to allow the transition of airflow without taking up excessive space in the false ceiling, facilitating its installation in places with little available height.

5. Is it necessary to seal the joint between the grate and the mouthpiece?

Although the fit is precise, it is always advisable to apply a bead of polyurethane sealant or technical tape to prevent small vibrations and ensure that 100% of the air comes out through the grille.
