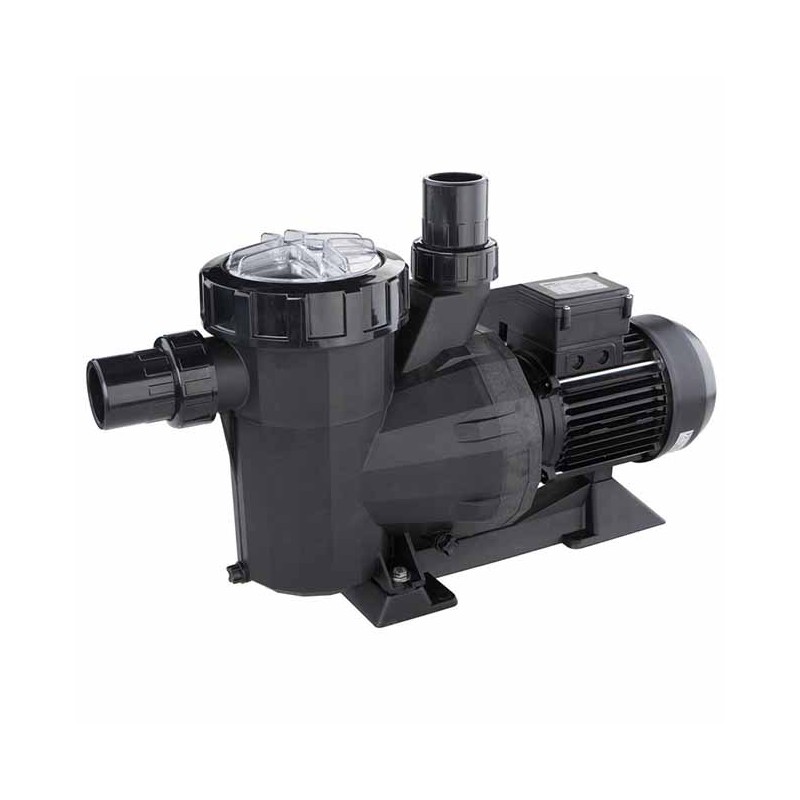

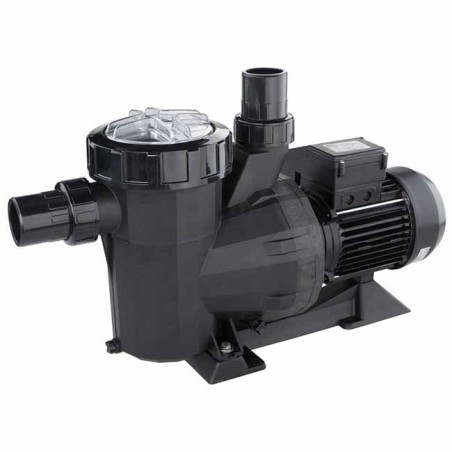

Victoria Plus Pump , 26,000 l/h - 1.46 kW - 2 HP - single-phase

High performance pump range. The Victoria Plus pump offers a simple and robust design, with low noise operation due to the rubber supports on which it rests. New generation pre-filter cover nut, easy to handle. IP-55 protection motor. High capacity pre-filter basket. This is a single-stage centrifugal pump with self-priming capacity with single-phase or three-phase motors ranging from 1/2 HP to 3 HP. The new generation of Eurovoltage motors in the Victoria Plus range allow working with a voltage range of /-10% with respect to the nominal voltage of the motor, that is, in the event of voltage increases or decreases of up to a maximum of 10%, the pump motor will operate normally. All pump parts are made of technical plastics, thereby avoiding any corrosion problems. The diffuser body is made of Luranyl® and the impeller is made of Noryl®‚ with a fibreglass filler, giving them resistance and finish at the highest level. Mechanical seal in AISI-316 stainless steel and silicon carbide. Class F insulation and IP-55 motor protection. The IP-55 protection prevents solid particles and liquids from entering the motor, and the class F insulation of the motor makes it possible to install the Victoria Plus range in environments with high humidity and high temperatures. Bearings protected against the effects of humidity. Self-priming up to 2 metres. Pump body screws made of stainless steel.

Product Features:

• High performance pump
• Sober and robust design
• Quiet operation
• Body made of technical plastics

Frequently Asked Questions:

What type of motor does the Victoria Plus pump have?
The Victoria Plus pump has single-phase or three-phase motors, with a power ranging from 1/2 HP to 3 HP.

What is the self-priming capacity of the Victoria Plus pump?
The Victoria Plus pump has a self-priming capacity of up to 2 metres.

What materials are used in the manufacture of the Victoria Plus pump?
The Victoria Plus pump is made with a Luranyl® diffuser body and a Noryl® impeller with a fibreglass filler.

What is the motor protection of the Victoria Plus pump?
The Victoria Plus pump has IP-55 protection that prevents the entry of solid particles and liquids into the motor.

What type of insulation does the Victoria Plus pump motor have? The Victoria
Plus pump motor has Class F insulation which allows it to be installed in environments with high humidity and high temperatures.
