Victoria Plus pump, 16,000 l/h - 0.78 kW - 1 HP - single-phase
€520.49
Impuestos incluidos
- 15 liter capacity skimmer with standard mouth and circular pressure cap for concrete pools.
- With anti-UV treatment in the parts that are not buried.
- Made of ABS, with gate float and clapper for flow regulation.
- Connections:
- Lower suction connection: internal thread 1½ ", external 2".
- Simultaneous connection to the drain: internal Ø 50 mm
- Upper connection for evacuation of excess water: Ø 40 mm
- Includes basket for leaf collecting.
- Recommended flow: 5 m³ / h
- It is recommended to install a skimmer for every 25 m² of water surface area.
- Made in Spain

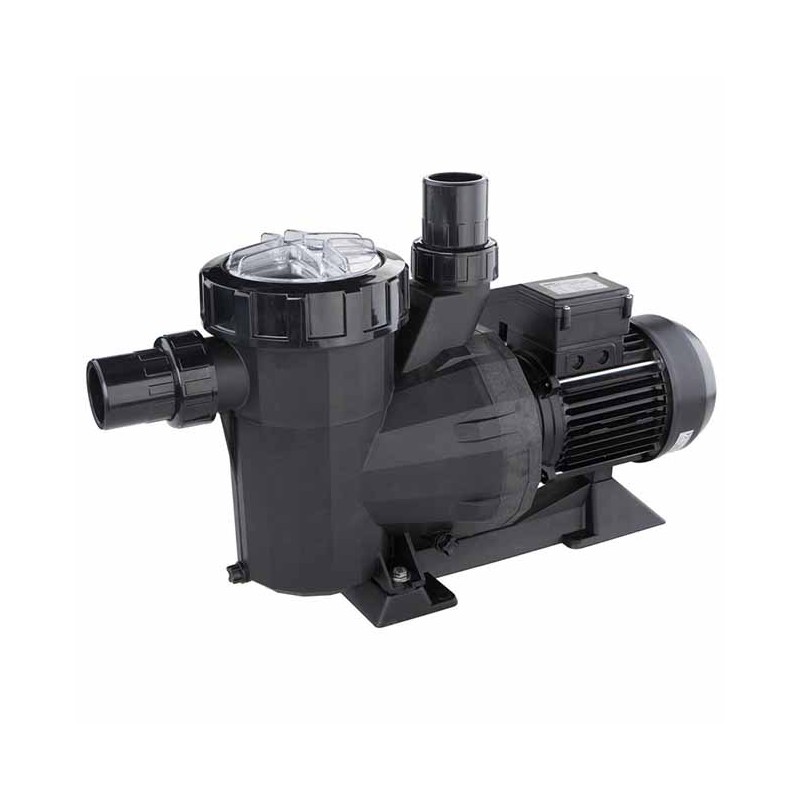

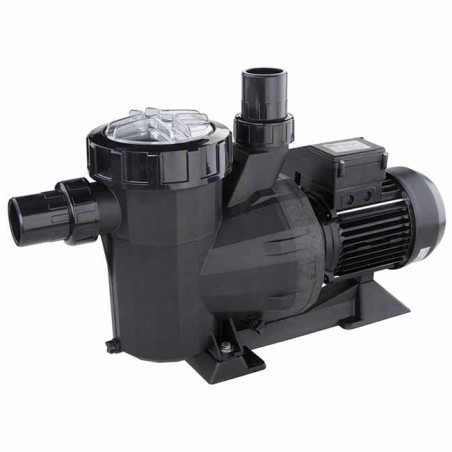

Victoria Plus pump , 16,000 l/h - 0.78 kW - 1 HP - single-phase
High performance pump range. The Victoria Plus pump offers a simple and robust design, with low noise operation due to the rubber supports on which it rests. New generation pre-filter cover nut, easy to handle. IP-55 protection motor. High capacity pre-filter basket. This is a single-stage centrifugal pump with self-priming capacity with single-phase or three-phase motors ranging from 1/2 HP to 3 HP. The new generation of Eurovoltage motors in the Victoria Plus range allow working with a voltage range of /-10% with respect to the nominal voltage of the motor, that is, in the event of voltage increases or decreases of up to a maximum of 10%, the pump motor will operate normally. All pump parts are made of technical plastics, thereby avoiding any corrosion problems. The diffuser body is made of Luranyl® and the impeller is made of Noryl®‚ with a fibreglass filler, giving them resistance and finish at the highest level. Mechanical seal in AISI-316 stainless steel and silicon carbide. Class F insulation and IP-55 motor protection. The IP-55 protection prevents solid particles and liquids from entering the motor, and the class F insulation of the motor makes it possible to install the Victoria Plus range in environments with high humidity and high temperatures. Bearings protected against the effects of humidity. Self-priming up to 2 metres. Pump body screws made of stainless steel.
Product Features:
- Single-stage centrifugal pump
- IP-55 protection motor
- Large capacity pre-filter basket
- Self-suction up to 2 meters
Frequently Asked Questions:
What type of motor does the Victoria Plus pump have?
The Victoria Plus pump has single-phase or three-phase motors from 1/2 HP to 3 HP.
What is the self-priming capacity of the pump?
The Victoria Plus pump has a self-priming capacity of up to 2 metres.
What materials are used in the manufacture of the pump?
The diffuser body is made of Luranyl® and the impeller is made of Noryl®‚ with fiberglass filler.
What protections does the pump have?
The pump has Class F insulation and IP-55 motor protection.
What is the noise level of the Victoria Plus pump?
The Victoria Plus pump offers low noise operation due to the rubber supports on which it rests.
