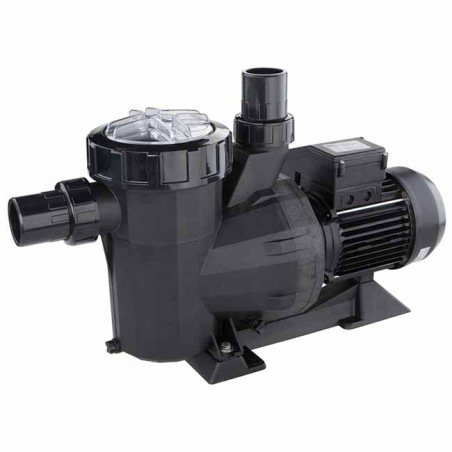

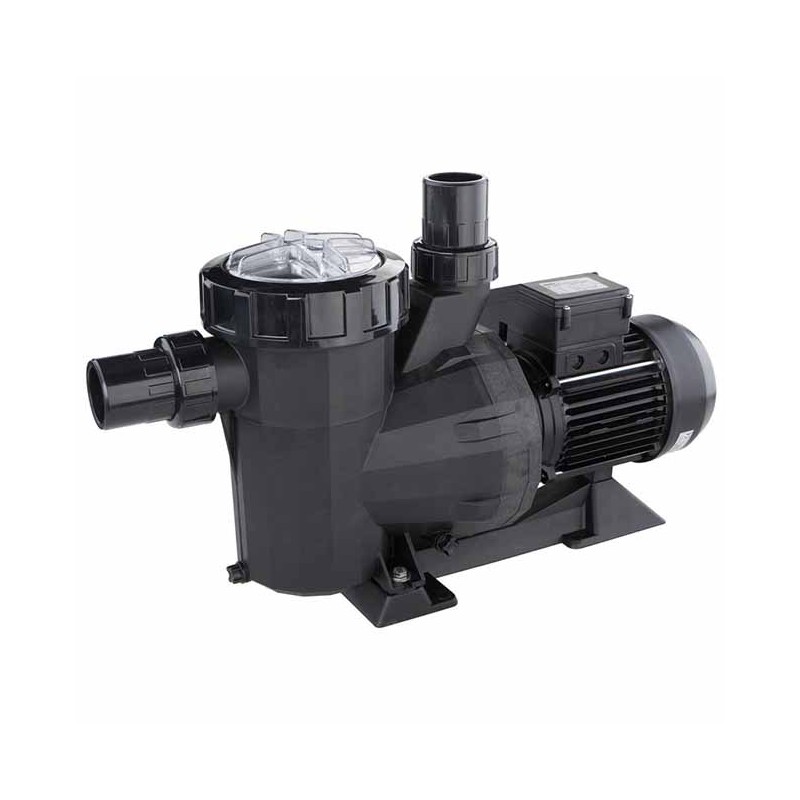

Victoria Plus Pump

High performance pump range. The Victoria Plus pump offers a simple and robust design, with low noise operation due to the rubber supports on which it rests. New generation pre-filter cover nut, easy to handle. IP-55 protection motor. High capacity pre-filter basket. This is a single-stage centrifugal pump with self-priming capacity with single-phase or three-phase motors ranging from 1/2 HP to 3 HP. The new generation of Eurovoltage motors in the Victoria Plus range allow working with a voltage range of /-10% with respect to the nominal voltage of the motor, that is, in the event of voltage increases or decreases of up to a maximum of 10%, the pump motor will operate normally. All pump parts are made of technical plastics, thereby avoiding any corrosion problems. The diffuser body is made of Luranyl® and the impeller is made of Noryl®‚ with a fibreglass filler, giving them resistance and finish at the highest level. Mechanical seal in AISI-316 stainless steel and silicon carbide. Class F insulation and IP-55 motor protection. The IP-55 protection prevents solid particles and liquids from entering the motor, and the class F insulation of the motor makes it possible to install the Victoria Plus range in environments with high humidity and high temperatures. Bearings protected against the effects of humidity. Self-priming up to 2 metres. Pump body screws made of stainless steel.

Product Features:

• High performance pump
• Sober and robust design
• Quiet operation
• IP-55 protection

Frequently Asked Questions:

What is the design of the Victoria Plus pump ?
The design of the Victoria Plus pump is simple and robust, with silent operation.

What type of protection does the Victoria Plus pump motor have ? The Victoria Plus
pump motor has IP-55 protection, which prevents the entry of solid particles and liquids into its interior.

What materials are used in the manufacture of the Victoria Plus pump ?
The Victoria Plus pump is made of technical plastics, with a Luranyl® diffuser body and a Noryl® impeller with a fibreglass filler.

What is the self-priming capacity of the Victoria Plus pump ?
The Victoria Plus pump has a self-priming capacity of up to 2 meters.

What type of insulation does the Victoria Plus pump motor have ? The Victoria Plus
pump motor has Class F insulation and IP-55 protection.
