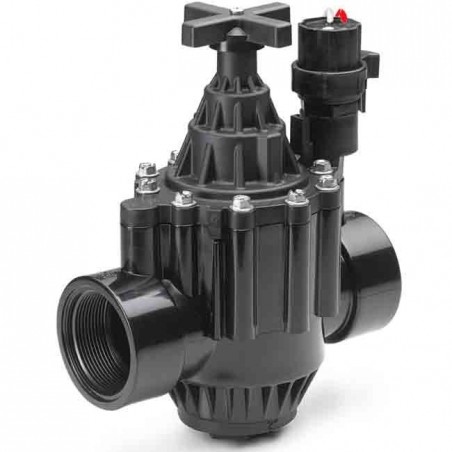

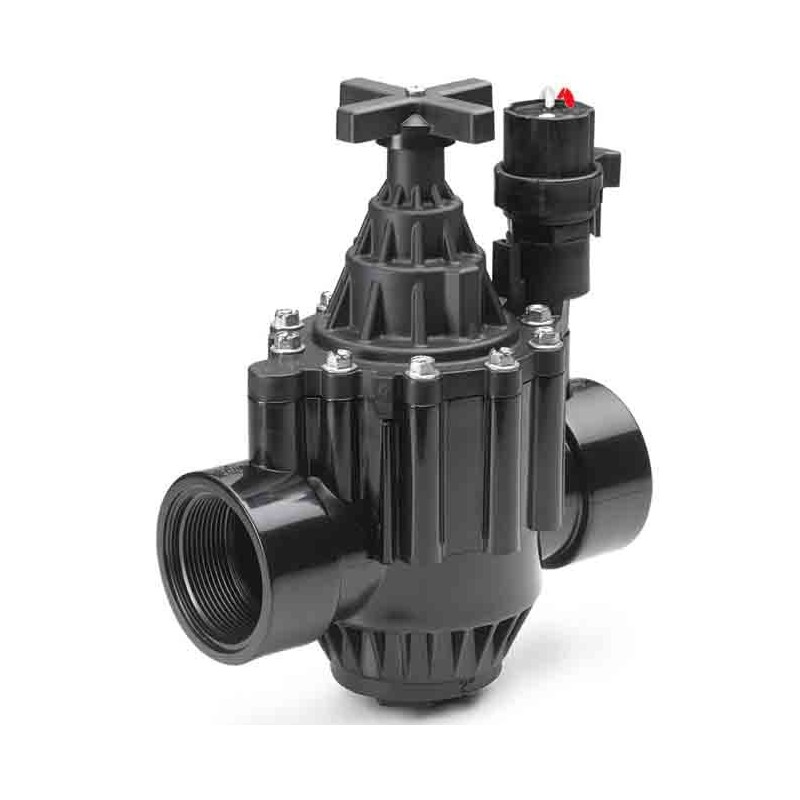

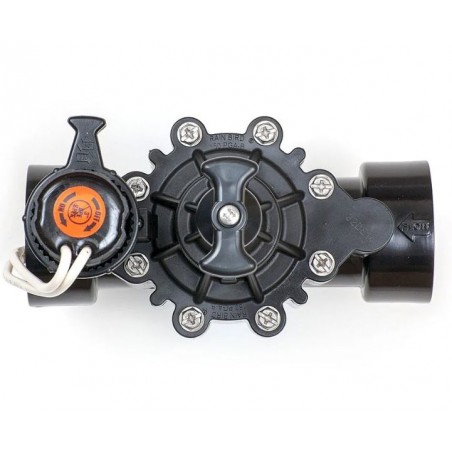

Rain Bird 100PGA 1'' 9V Irrigation Solenoid Valve , use with electric irrigation programmers

High-quality Rain Bird 1 irrigation solenoid valve with factory-reinforced membrane for longer solenoid valve life. Works with any 9V battery-powered irrigation programmer on the market. Includes flow regulator.

Product Features:

• Flow rate: 0.5 to 34.05 m3/h


• Pressure: 1.0 to 10.4 bar (23° C)


• Temperature: up to 43°C

Frequently Asked Questions:

Ease of maintenance:

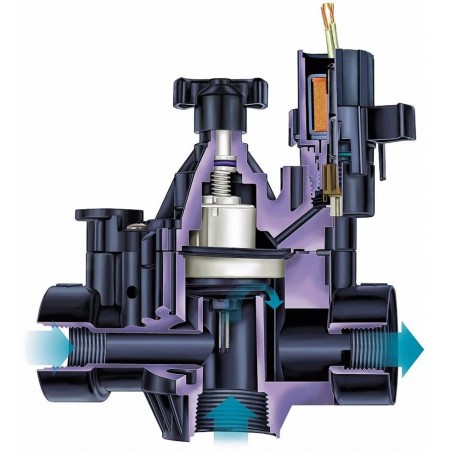

Prevents loss of parts during maintenance thanks to the encapsulated solenoid with captive plunger. Non-pop-up flow adjustment handle to regulate the desired flow. Internal purge by turning the solenoid ¼ turn which allows manual openings without wetting the manhole. Allows adjustment of the pressure regulator without turning on the valve in the programmer. Solenoid with handle.

Versatility:
A PRS-Dial pressure regulator module adjustable from 1.0 to 6.9 bar (must be ordered separately) can be installed. Also available in an electric solenoid version. Compatible with Rain Bird MDC decoder systems.

Reliability:
Slow closing valve prevents water hammer and therefore damage to the system. Double filtration design to prevent clogging of solenoid ports.
