- Nuevo
PRSDial Rain Bird pressure regulator
€100.95
Impuestos incluidos
Regulates the outlet pressure at the solenoid valve regardless of the inlet pressure. It adjusts very quickly and very easily. Regulator fits Rain Bird PGA, PEB, PESB, BPE and BPES series valves.
• Regulates and maintains a constant outlet pressure between 1.04 and 6.90 bar in ± 0.21 bar.
• Detent adjustment knob allows fine adjustment in 0.02 bar increments. The dial cartridge installs and adjusts quickly, easily and precisely.
specs
• Pressure: up to 6.90 bar *
• Regulation: 15 to 100 psi (1.04 to 6.90 bar)
• Accuracy: ± 3 psi (± 0.21 bar)
• Flow rate: see table
* Although the PRS- Dial can withstand pressures up to 13.80 bar, precise pressure regulation can be maintained only up to 6.90 bar.

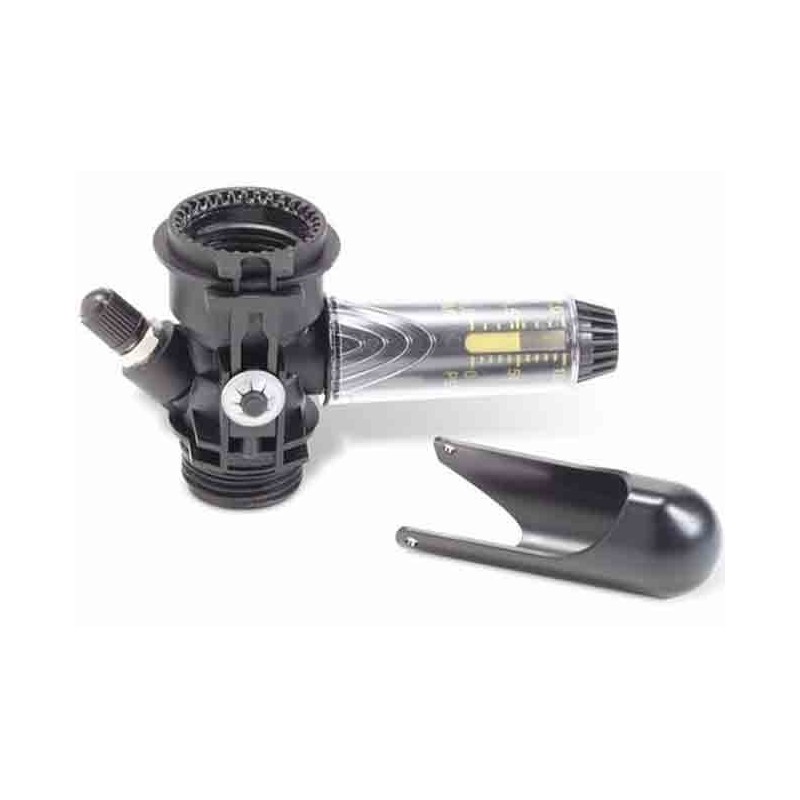

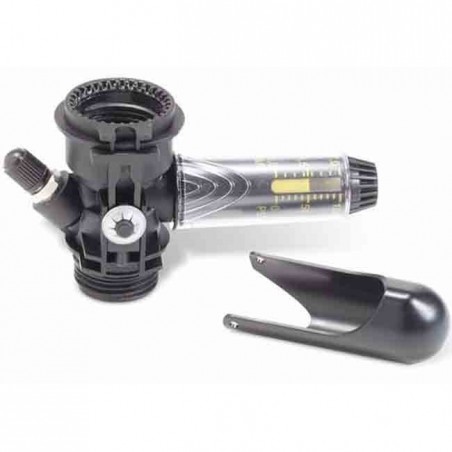

Rain Bird PRSDial Pressure Regulator
Regulates the output pressure on the solenoid valve regardless of the input pressure. It is very quick and easy to adjust. The regulator fits Rain Bird PGA, PEB, PESB, BPE and BPES series valves.
Product Features:
- Peak reduction improvements reduce water hammer.
- Ergonomic design with a protective cap minimizes the risk of vandalism.
- Airtight dial cartridge eliminates misting and binding.
- Easy to install in the field. The PRS-Dial is threaded between the solenoid and the adapter
Frequently Asked Questions:
How do you adjust the outlet pressure on the Rain Bird PRSDial regulator?
It is very quick and easy to adjust using the detented adjustment knob.
What valves are compatible with the PRSDial pressure regulator?
The regulator fits Rain Bird PGA, PEB, PESB, BPE and BPES series valves.
What outlet pressure does the PRSDial regulator keep constant?
It regulates and maintains a constant outlet pressure between 1.04 and 6.90 bar within ±0.21 bar.
What is the Rain Bird PRSDial Pressure Regulator made of?
Corrosion-resistant, fiberglass-filled nylon for maximum strength.
How do I install the Rain Bird PRSDial Pressure Regulator?
It installs and adjusts quickly, easily and accurately.
PRSDial
325 Artículos
Referencias específicas
También podría interesarle
16 otros productos en la misma categoría:
Regulates the outlet pressure at the solenoid valve regardless of the inlet pressure. It adjusts very quickly and very easily. Regulator fits Rain Bird PGA, PEB, PESB, BPE and BPES series valves.
• Regulates and maintains a constant outlet pressure between 1.04 and 6.90 bar in ± 0.21 bar.
• Detent adjustment knob allows fine adjustment in 0.02 bar increments. The dial cartridge installs and adjusts quickly, easily and precisely.
specs
• Pressure: up to 6.90 bar *
• Regulation: 15 to 100 psi (1.04 to 6.90 bar)
• Accuracy: ± 3 psi (± 0.21 bar)
• Flow rate: see table
* Although the PRS- Dial can withstand pressures up to 13.80 bar, precise pressure regulation can be maintained only up to 6.90 bar.
PRSDial Rain Bird pressure regulator
€100.95
Impuestos incluidos
Muy buena calidad
Aguanta perfectamente la presión, fácil y sencillo de ajustar. La información con el proveedor ha sido muy correcta y muy bien explicita
