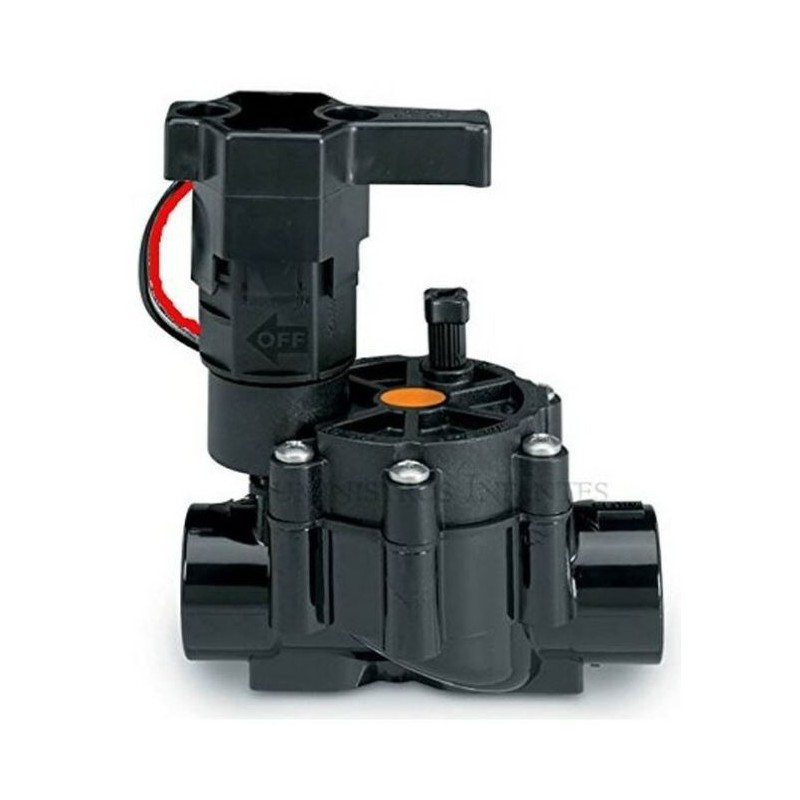

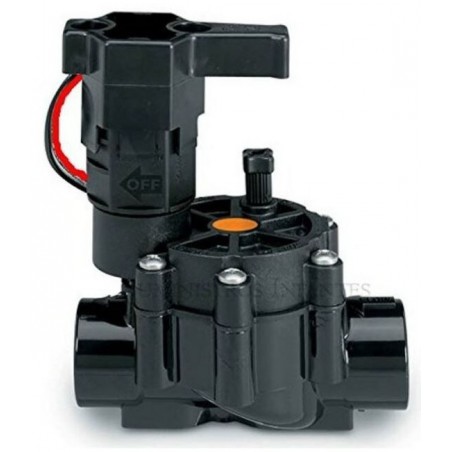

Irrigation solenoid valve 3/4 9V LFV

Rain Bird 3/4" 9V LFV Low Flow Irrigation Solenoid Valve, use with 9V battery-powered controllers This is the only solenoid valve on the market designed specifically for localized irrigation systems, and therefore the only solenoid valve that allows operation with very low flow rates (45.4 to 1,136 liters/hour). This valve features all the reliability features of Rain Bird Dv solenoid valves, along with a unique membrane designed to allow particles to pass through the valve at extremely low flow rates, thus preventing leaks. Ease of maintenance - External bleed screw to manually bleed the system and remove dirt during installation and start-up of the system. - Manual opening without water leaks. Reliability - Unique double-seal membrane, with a ½” diameter membrane seat for perfect operation at low flow rates. - Double filtration at the membrane and solenoid seat level for maximum reliability. Specifications: Flow rate: 45.42 to 1,136 liters/hour. Pressure: 1.0 to 10.3 bar. Electrical specifications: Solenoid 24 vAC 50/60 Hz. Starting current: 0.30 (7.2 VA). Operating current: 0.19 (4.56 VA). Height: 11.4 cm Length: 10.7 cm Width: 8.4 cm. Brand Rain Bird. Works with electric programmers of any brand on the market.

Product Features:

• Easy maintenance with external bleed screw
• Unique double seal membrane for low flow rates
• Double filtration for maximum reliability
• Works with electric programmers of any brand

Frequently Asked Questions:

*What is the working pressure of the solenoid valve?*
*The working pressure ranges from 1.0 to 10.3 bar.*

*What type of electric current does the solenoid valve use?*
*It uses a 24 vAC 50/60 Hz solenoid.*

*What are the dimensions of the solenoid valve?*
*Height: 11.4 cm, Length: 10.7 cm, Width: 8.4 cm.*

*How is the solenoid valve serviced?*
*It can be manually bled using the external bleed screw.*

*Is it compatible with localized irrigation systems?*
*Yes, it is specifically designed for localized irrigation systems.*
