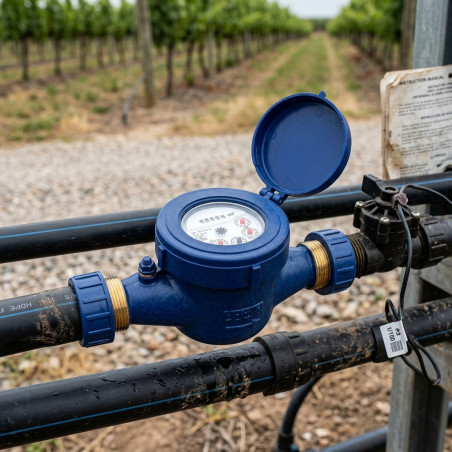

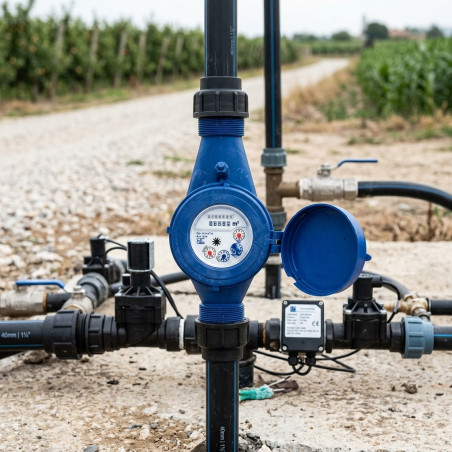

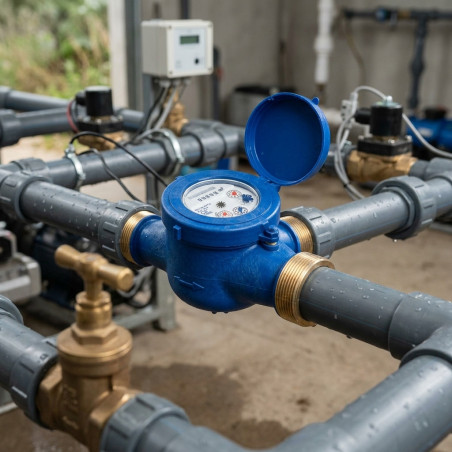

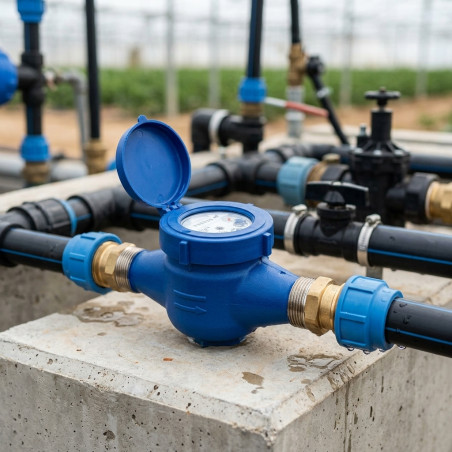

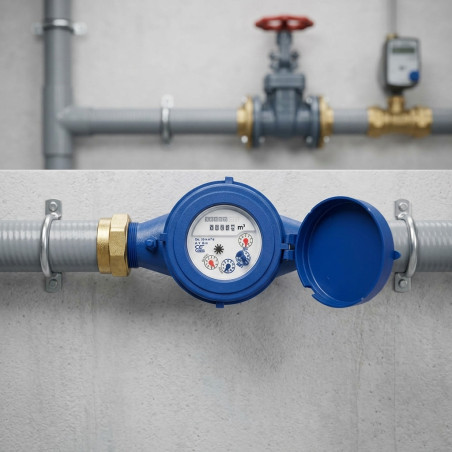

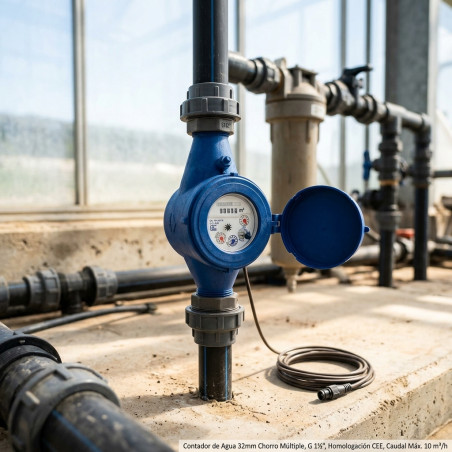

32mm multi-jet water meter

Multi-jet turbine counter with dry dial and body, turbine and clockwork made of thermoplastic material.

Product Features:

• Body made of polyamide reinforced with fiberglass.
• Direct reading on 5-digit roller counter indicating m³.
• Vacuum assembly of watchmaking to prevent water condensation.
• Magnetic transmission protected against external magnetic fields (anti-fraud).

Frequently Asked Questions:

What is the working temperature of the 32mm multi-jet water meter?
*Working temperature: 0.1ºC ~ 30ºC*

What is the maximum pressure that the 32mm multi-jet water meter can withstand?
*Maximum pressure: 10 bar*

What approval does the 32mm multi-jet water meter have?
*CEE approval for irrigation. Class B in horizontal position and Class A in vertical position.*

How many different models are available for the 32mm multi-jet water meter?
*4 models available: ¾ - DN20, 1 - DN25, 1¼ - DN32, 1½ - DN40*

What is the pre-equipment for pulse transmitter for the 32mm multi-jet water meter used for?
*Pre-equipped for pulse transmitter with standard value 1/100 (1 pulse = 100 litres). Requires optionally available transmitter cable (see accessories).*
