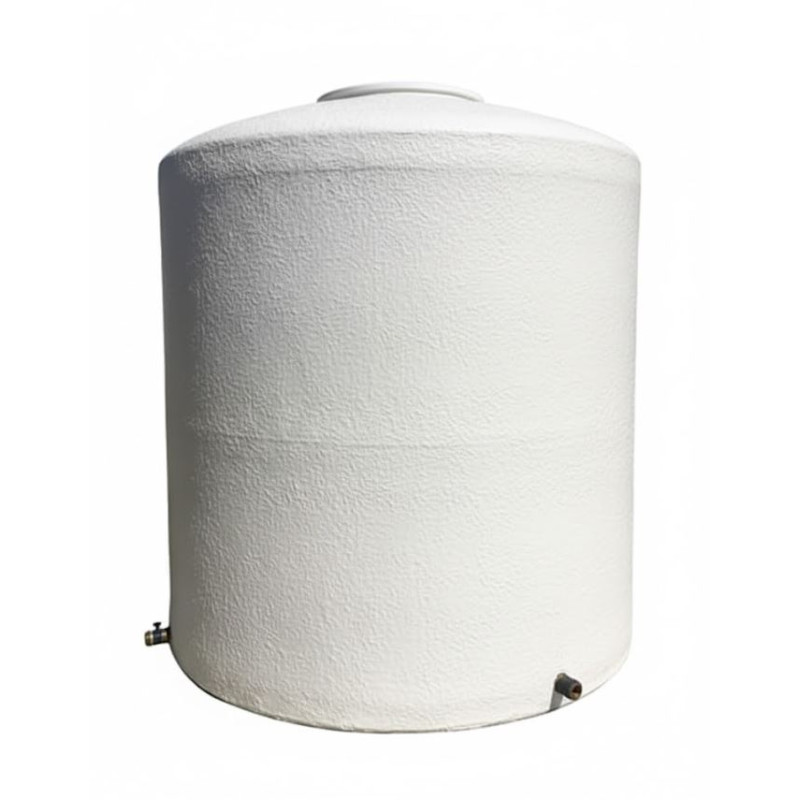

DP10000 10,000-liter vertical tank, manufactured from fiberglass-reinforced polyester using a filament-winding system. Designed for storing potable water and other non-aggressive liquids, with UV protection and CE marking. Includes a DN800 manhole, customizable connection and color options, and exclusive surface mounting. 3-year warranty.
The DP10000 vertical tank, with a capacity of 10,000 liters , is manufactured from fiberglass-reinforced polyester (FRP) using a filament-winding system and high-strength, thermally and mechanically resistant orthophthalic food-grade resin. It features a controlled finish under strict quality standards and is protected against ultraviolet rays.
Its dimensions are: diameter 2.45 m , height 2.27 m , and height including the opening 2.47 m . It is designed for the storage of potable water, wastewater, rainwater, and fire suppression systems , as well as non-aggressive liquids. It has food-grade certification, CE Declaration of Conformity SE0900560 , and a technical data sheet, in addition to health registration number 39.0004020/MA .
The tank is customizable , allowing up to three connections according to customer specifications (male thread or smooth PVC), choice of white or green color, and high or low neck . It includes a standard DN800 mm top manhole with cap and vent.

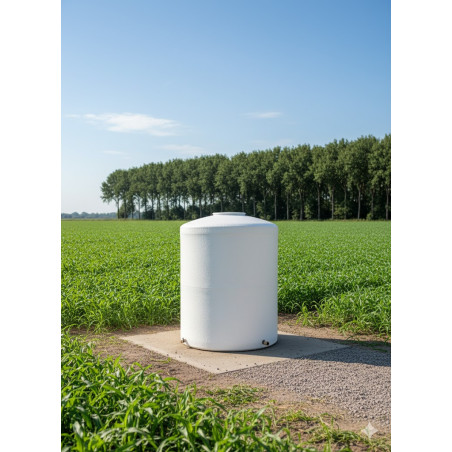

It is designed for surface mounting only , on a flat, level, and compact base. Complete operating and installation instructions are included. The unit comes with a 3-year warranty against manufacturing defects and is delivered unloaded and in a horizontal position, ready for transport.
Data sheet
